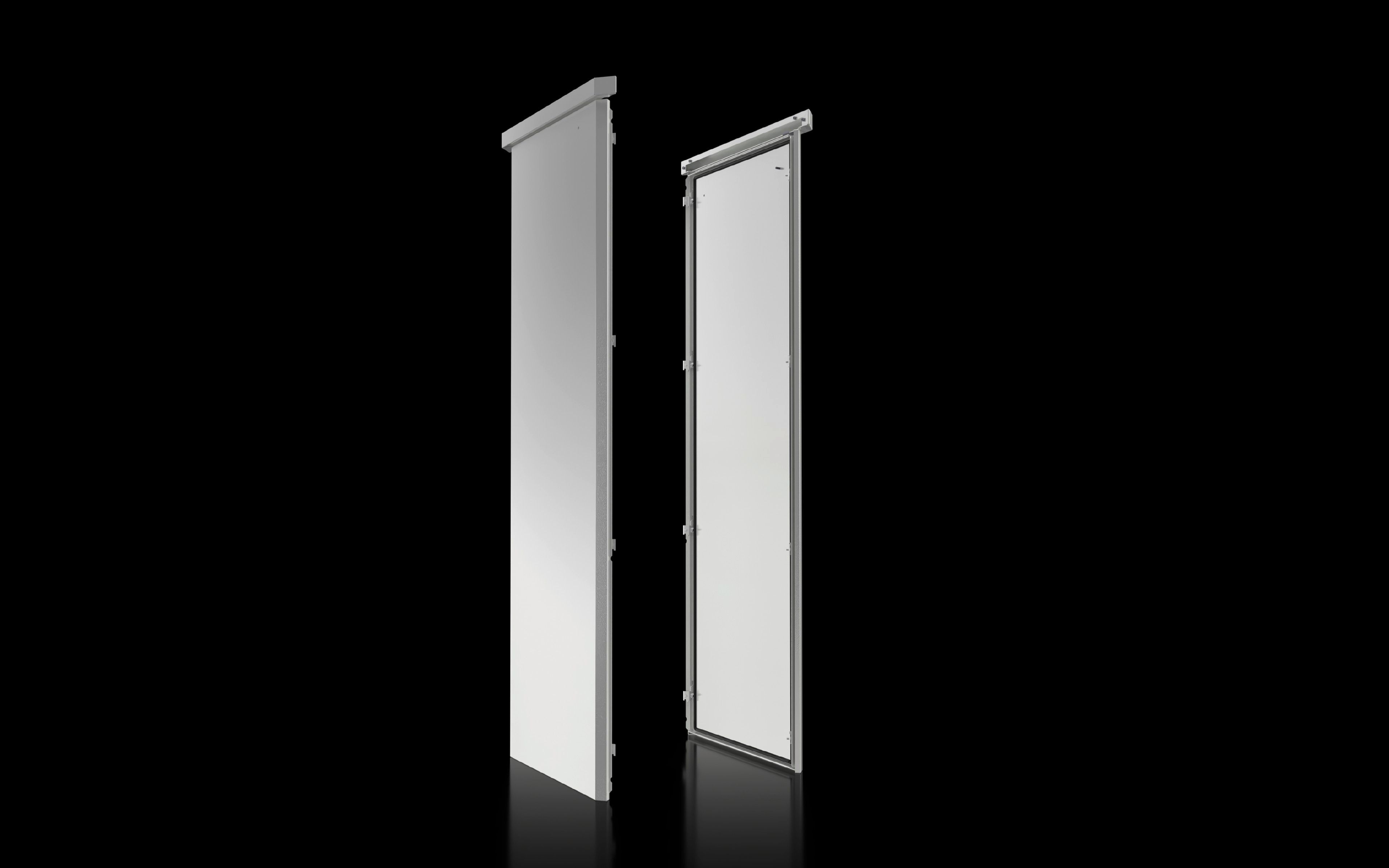

Rittal CS 9781.860 Side Panel - Twin-Walled Aluminium IP55
Part Number: 9781860
Manufacturer
Rittal
Part number
9781860
Alt Part Number
CS 9781.860
Quick Summary
Rittal CS 9781.860 Side Panel is a twin-walled aluminium accessory designed to extend CS Toptec enclosures for 1800Ă—600 mm footprints used in control cabinets and harsh environments. Installing aftermarket panels can challenge sealing integrity and uptime; this part ships with earthing and assembly parts to simplify your installation while maintaining protection. It carries an IP55 rating and NEMA 3R compatibility, providing robust protection against dust, moisture, and corrosion in demanding outdoor conditions. The powder-coated UV-resistant finish in RAL 7035 adds long-term weather resistance, reducing repainting and maintenance needs. By choosing a purpose-built side panel, engineers can speed deployment, lower lifecycle costs, and improve overall enclosure reliability.
Product Information
Extended Description
9781860 Rittal: CS side panel, twin-walled, for HxD: 1800x600 mm, aluminium AlMg3
Article number
CS 9781.860
Material
Aluminium AlMg3
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Side panels | Roof side parts | Including earthing and assembly parts
To fit
Enclosure type:Â CS Toptec, bayable | Height:Â = 1,800 mm | Depth:Â = 600 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 3R
Basic material
Aluminium
Packs of
2 pc(s).
EAN
4028177986213
ETIM 9
EC002524
ETIM 8
EC002524
ECLASS 8.0
27182101
Product description
CS side panel, twin-walled, for HxD: 1800x600 mm, aluminium AlMg3
Twin-walled aluminium construction provides high rigidity and durable protection, translating to longer service life and reduced risk of deformation in vibration-heavy industrial environments. Business impact: improved enclosure integrity reduces field service calls and unplanned downtime; application: ideal for CS Toptec installations in manufacturing lines. Powder-coated UV-resistant finish in RAL 7035 delivers weather resistance and color stability, lowering repaint cycles and maintaining a professional appearance in outdoor or harsh indoor settings. Business impact: lower maintenance costs; application: outdoor cabinets, cold/light industrial zones. Includes earthing and assembly parts, plus roof side components, enabling faster, compliant installation and fewer procurement steps. Business impact: accelerated project timelines and reduced installation risk; application: standardised projects across multiple lines. IP55 protection and NEMA 3R compatibility address dust, water ingress, and corrosion concerns common in production floors and outdoor deployments. Business impact: dependable protection for critical electronics; application: mixed-use environments. Compatible with CS Toptec, bayable configurations, and 1800Ă—600 mm footprints, ensuring seamless integration with existing enclosures and accessories. Business impact: streamlined retrofits and scalable cabinet systems; application: upgrade programs and modular expansions.
Get a Quick Quote for a Rittal 9781860
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9781860?
Enquire Now
FAQs
The CS 9781.860 side panel is designed to fit CS Toptec enclosures with a 1800Ă—600 mm footprint and is supplied with earthing and assembly parts plus roof side components. Use suitable mounting hardware, ensure proper gasket alignment, and follow standard CS Toptec installation procedures to maintain IP55 protection and seal integrity during retrofit or new builds.
Yes. The side panel delivers IP55 protection and is compatible with NEMA 3R environments, providing dust resistance and protection against water ingress from light rain or splashing. Its aluminium AlMg3 construction with UV-stable coating further enhances outdoor resilience and reduces maintenance needs in harsh conditions.
Absolutely. The twin-walled design is tailored for HxD 1800Ă—600 mm CS Toptec configurations, offering robust physical protection and a secure mounting interface. This makes it a reliable choice for factory floors, process plants, and other industrial environments where enclosure integrity is critical.
The aluminium AlMg3 material provides inherent corrosion resistance, while the UV-resistant powder-coated finish minimizes weathering and repaint cycles. Together, these features reduce maintenance frequency and expand service life, translating to lower total cost of ownership for outdoor or demanding indoor installations.
The panel ships with earthing and assembly parts and is designed to be bayable with CS Toptec enclosures, including roof-side parts. This ensures quick, compatible retrofits or expansions, maintains consistent protection levels, and minimizes additional procurement steps for multi-line deployments.
