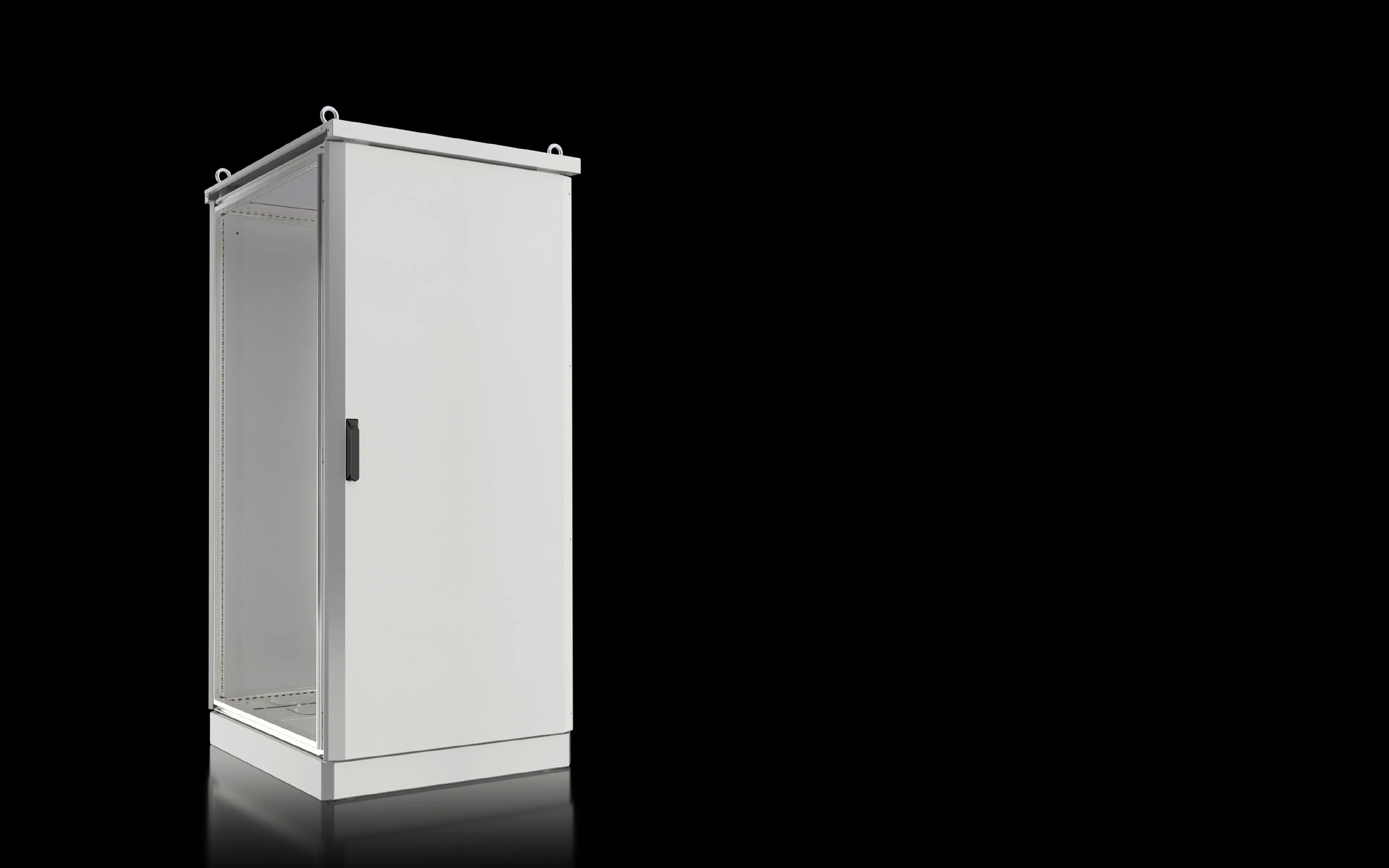

Rittal CS 9781.868 Outdoor Enclosure - IP55, IK10

Feature Bayable, twin-walled outdoor enclosure with a complete shell set. Business Impact Enables scalable, modular interior layouts and faster changeouts, reducing downtime during modernization or expansion. Application Outdoor control cabinets for substations, process automation, and weather-exposed equipment. Feature Dimensions 800x1600x800 mm with base/plinth height of 100 mm and roof/base frame punchings at 25 mm. Business Impact Flexible interior mounting and future-ready installations; easier cable routing and documentation in line with IEC standards. Application Outdoor electronics enclosures near harsh environments, including industrial plants and field installations. Feature Materials Enclosure frame in stainless steel 1.4301 (AISI 304); panels and base/plinth trim in aluminium AlMg3; rain canopy in aluminium; finished with UV-resistant powder coating in RAL 7035. Business Impact Corrosion resistance and long service life, minimizing maintenance cycles in challenging climates. Application Harmonized with high-importance protection like IP55, NEMA 3R, IK10 to support compliant deployments. Feature Access and security One-door design with 4-point locking; door can hinge on right or swapped to left; gland plates (2) for cable entries. Business Impact Enhanced access control and wiring flexibility while preserving protective integrity. Application Ideal for rapid deployment of control panels and switchgear in outdoor environments. Feature Inclusions Supply includes front door with handle, rear panel, rain canopy, base/plinth with gland plates, and frame with punchings. Business Impact Streamlined procurement and installation with everything needed for immediate interior layout and plotting. Application Suitable for modular expansion and integration with other CS Toptec enclosures in outdoor infrastructure projects.
