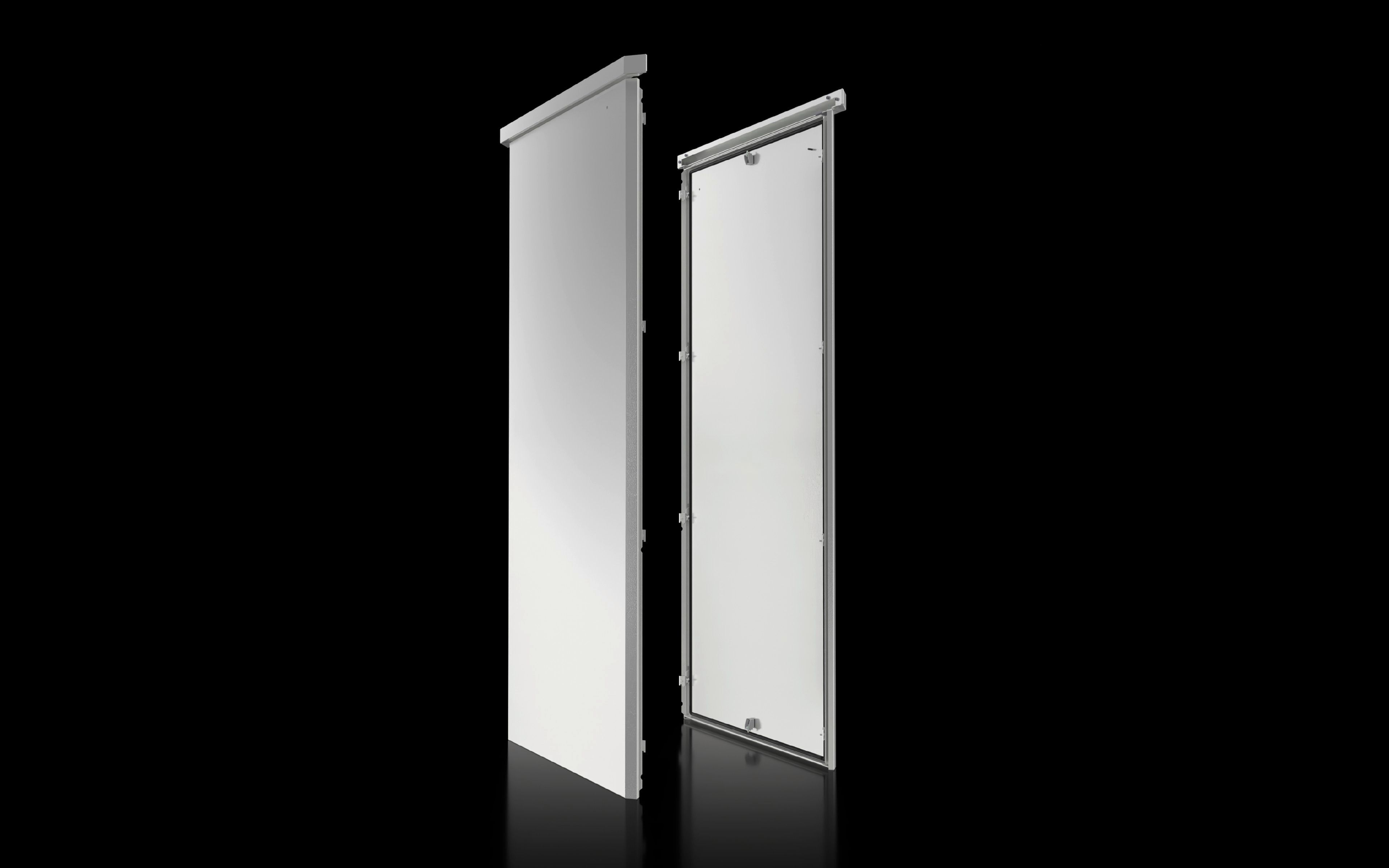

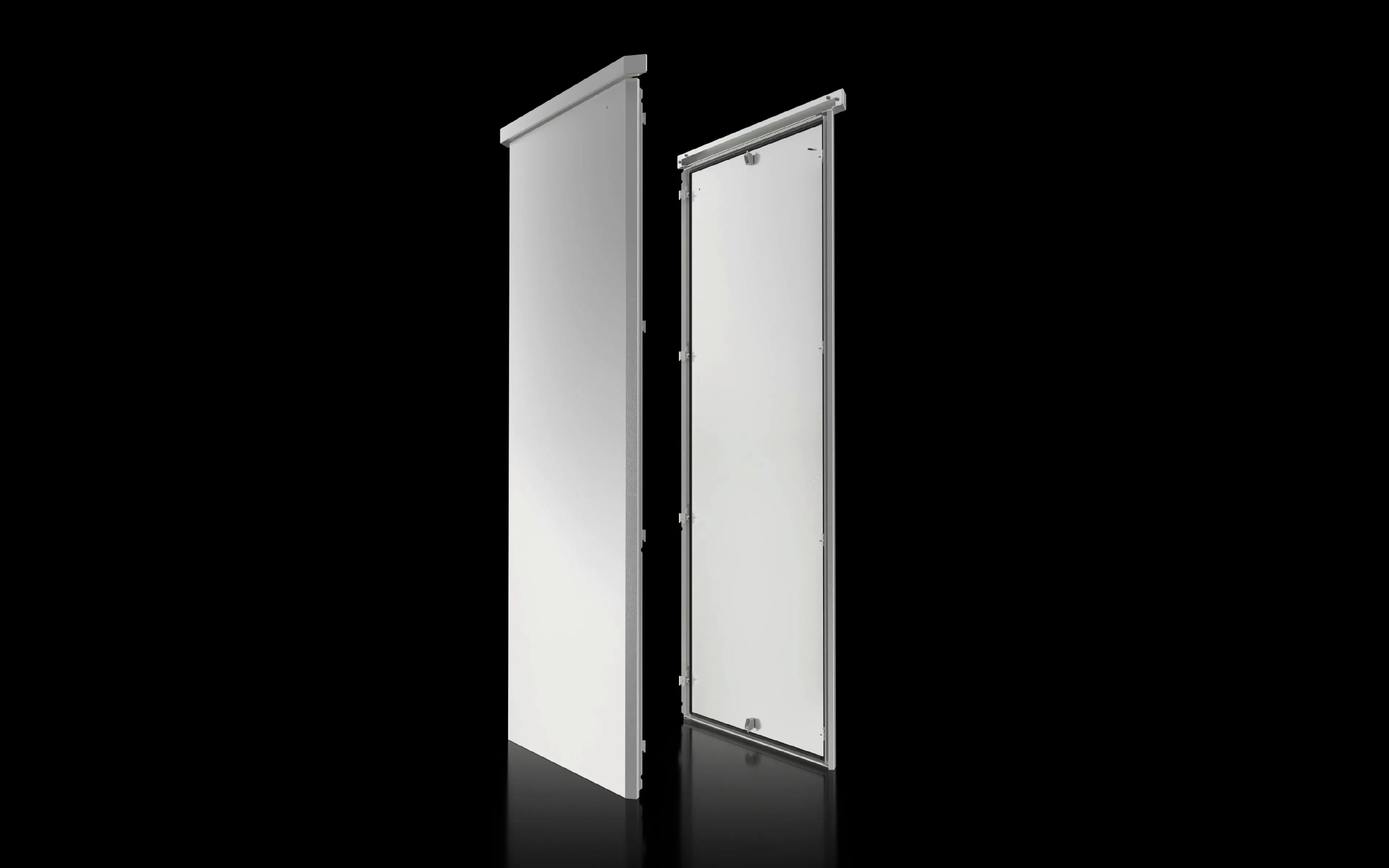

Rittal CS 9781.880 Side Panel for CS Toptec - IP55 NEMA 3R
Part Number: 9781880
Manufacturer
Rittal
Part number
9781880
Alt Part Number
CS 9781.880
Quick Summary
Rittal CS 9781.880 side panel provides twin-walled aluminium protection for CS Toptec enclosures. This accessory reduces installation time and downtime by including earthing and assembly parts. With IP55 protection and a NEMA 3R rating, it withstands harsh environments while the powder-coated aluminium finish resists corrosion. Designed as a CS Toptec side panel, it's an aluminium enclosure accessory that complements modular systems. The product ships in packs of two, streamlining stocking and installation planning for project teams.
Product Information
Extended Description
9781880 Rittal: CS side panel, twin-walled, for HxD: 1800x800 mm, aluminium AlMg3
Article number
CS 9781.880
Material
Aluminium AlMg3
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Side panels | Roof side parts | Including earthing and assembly parts
To fit
Enclosure type:Â CS Toptec, bayable | Height:Â = 1,800 mm | Depth:Â = 800 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 3R
Basic material
Aluminium
Packs of
2 pc(s).
EAN
4028177986060
ETIM 9
EC002524
ETIM 8
EC002524
ECLASS 8.0
27182101
Product description
CS side panel, twin-walled, for HxD: 1800x800 mm, aluminium AlMg3
Feature → Business Impact → Application: Twin-walled aluminium construction (AlMg3) provides robust structural integrity, improving cabinet rigidity and impact resistance in industrial environments; supports longer service life with reduced maintenance. Application: CS Toptec enclosures used in automation lines requiring reliable protection and easy handling. Feature → Business Impact → Application: Powder-coated UV-resistant finish in RAL 7035 delivers weather and fade resistance, lowering repainting costs and downtime; ideal for outdoor or harsh factory settings. Feature → Business Impact → Application: Includes earthing and assembly parts plus roof side components streamlines on-site installation and grounding correctness, reducing commissioning time. Feature → Business Impact → Application: IP55 and NEMA 3R ratings ensure dust and water ingress protection, enabling outdoor and dusty environments. Feature → Business Impact → Application: Fits enclosure height 1800 mm and depth 800 mm, aligning with CS Toptec bays for seamless modular expansion. Feature → Business Impact → Application: Packs of two optimize procurement and logistics, cutting stock complexity for project teams and maintenance planners.
Get a Quick Quote for a Rittal 9781880
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9781880?
Enquire Now
FAQs
The CS 9781.880 side panel ships with side panels, roof side parts, earthing and assembly parts, designed for CS Toptec bays at 1800x800 mm. To install, align the panel with the enclosure frame, connect the earthing components first to ensure a proper ground, then fasten the roof side parts and side panels using the included mounting hardware. This minimizes field troubleshooting and guarantees correct grounding.
The panel carries IP55 protection per IEC 60529 and a NEMA 3R rating, making it suitable for dusty or outdoor environments. This combination reduces ingress risk, supports reliable operation in harsher conditions, and helps maintenance teams meet regulatory expectations for enclosure protection.
Yes. The UV-resistant powder-coated finish and aluminium AlMg3 construction, combined with IP55 and NEMA 3R ratings, provide weather resistance and corrosion protection. This makes it well-suited for outdoor cabinets and dusty production lines, while minimizing repainting and corrosion-related maintenance.
The panel is designed to fit CS Toptec enclosures with a height of 1800 mm and a depth of 800 mm. It is supplied as a two-pack and includes roof side parts and earthing/assembly parts, ensuring straightforward integration into existing CS Toptec bays.
The side panel reduces installation time through included parts and simplified grounding, lowers maintenance needs with a durable UV-resistant powder-coated finish, and extends cabinet life in harsh environments due to aluminium corrosion resistance. The two-pack packaging also reduces stocking complexity and procurement overhead.
