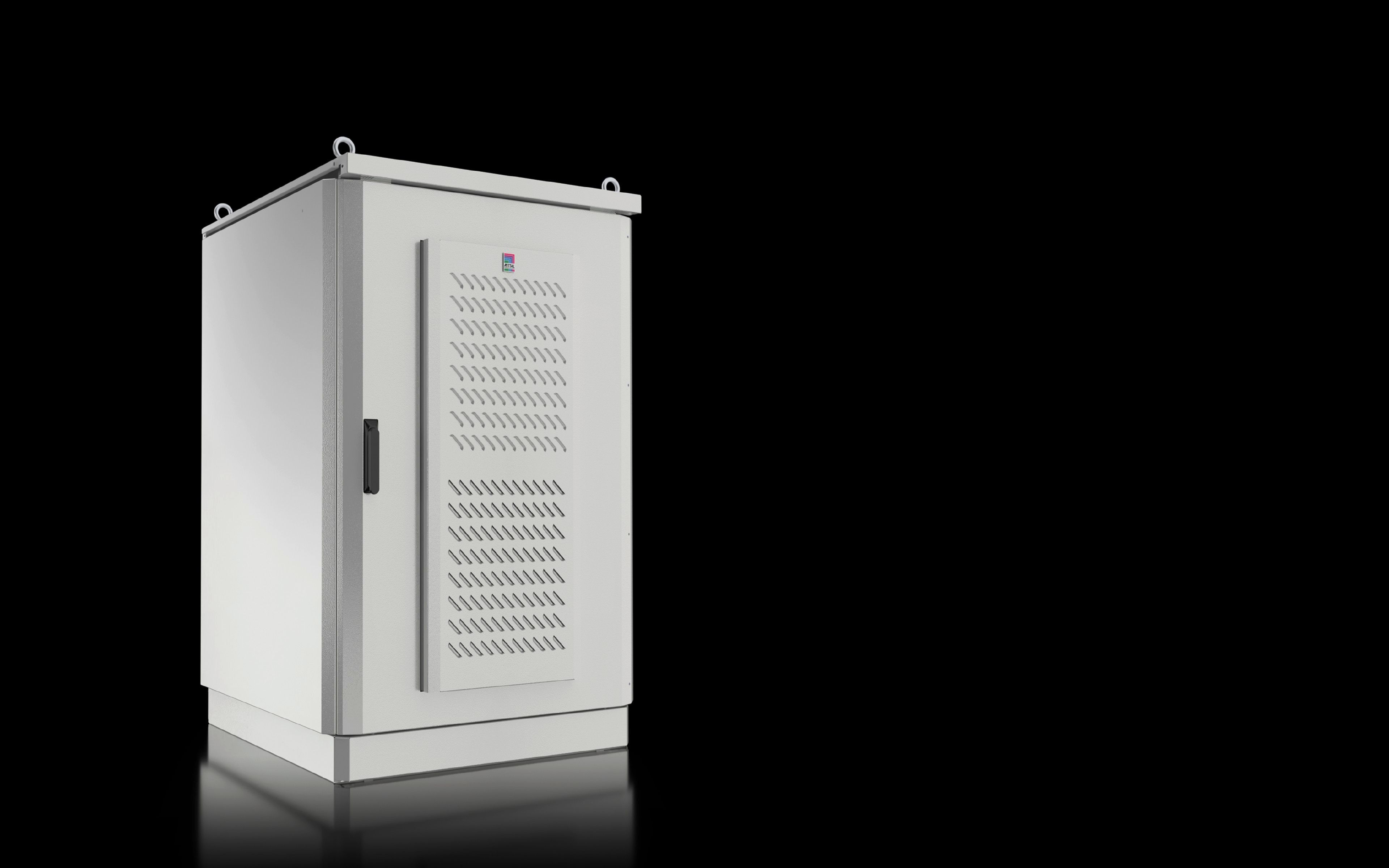

Rittal 9782818 Outdoor Enclosure - IP55, IK10, NEMA 3R
Part Number: 9782818
Manufacturer
Rittal
Part number
9782818
Alt Part Number
CS 9782.818
Quick Summary
Rittal 9782818 Outdoor Enclosure protects housed electronics in harsh outdoor environments while enabling flexible baying for scalable installations. Engineers and buyers often struggle with weatherproofing, climate-control integration, and future-proofing for expansion in outdoor automation projects. With IP55 protection, IK10 impact resistance, and NEMA 3R suitability, this enclosure offers robust reliability in extreme conditions. Its bayable design and compatibility with outdoor climate control units, plus a UV-resistant powder-coated finish, help reduce lifecycle costs and accelerate deployment for industrial and utility applications.
Product Information
Extended Description
9782818 Rittal: CS TopTec, bayable, WxHxD: 800x1200x800 mm, with cut-out for outdoor climate control unit 1.5 kW
Article number
CS 9782.818
Design
for baying | With cut-out for outdoor cooling units 1.5 kW
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Bayable, twin-walled outdoor enclosure | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width:Â 800 mm | Height:Â 1,200 mm | Depth:Â 800 mm
Dimensions
Overall height:Â 1,345 mm | Rain canopy height:Â 45 mm | Height base/plinth:Â 100 mm
Number of doors
1
Lock
Lock version:Â 4-point locking | Number of locks:Â 1 | Lock insert:Â BJ20027
Gland plate
Size:Â 2 | Qty.:Â 2
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 3R
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Note on Model No.
A climate control unit or adaptor plate is required to seal the cut-out
Packs of
1 pc(s).
EAN
4028177986206
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS TopTec, bayable, WxHxD: 800x1200x800 mm, with cut-out for outdoor climate control unit 1.5 kW
Feature: Bayable, twin-walled outdoor enclosure with a 100 mm base/plinth, door, rear panel and weather canopy. Business Impact: Enables scalable, modular installations and faster on-site assembly, reducing project delays. Application: Outdoor control cabinets and distributed automation subsystems where future expansion is anticipated. Feature: Durable construction using a stainless steel 1.4301 enclosure frame and aluminium panels with a UV-resistant powder-coated finish in RAL 7035. Business Impact: Delivers corrosion resistance and long-term aesthetics in exposed environments, lowering maintenance cycles. Application: Outdoor substations, weather-exposed control panels, and public infrastructure sites. Feature: Comprehensive cable management options including 2 gland plates and 25 mm system punchings in roof/base. Business Impact: Simplifies cabling, future upgrades, and fast re-routing without enclosure removal. Application: Industrial plant wiring where quick adaptation is needed. Feature: Cut-out for outdoor climate control unit 1.5 kW with seal requirement. Business Impact: Seamless integration with Blue e+ outdoor cooling and similar units, ensuring stable enclosures and compliant thermal management. Application: Remote automation nodes requiring effective cooling. Feature: Security and protection highlights including IP55, NEMA 3R, IK10, 4-point locking with BJ 20027, and double-earthed panels. Business Impact: Increases vandal and environmental protection while meeting industrial standards, reducing risk of downtime. Application: Remote or public installations with high security and reliability needs. Feature: Ready-for-installation dimensions and canopy design with 800x1200x800 mm footprint and 1,345 mm overall height. Business Impact: Predictable fit during system integration and efficient site planning. Application: System enclosures close to equipment rooms or outdoor installations where precise footprint is required.
Get a Quick Quote for a Rittal 9782818
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9782818?
Enquire Now
FAQs
The enclosure arrives with 25 mm system punchings in the roof and base and two gland plates. Install the frame, door, and rear panel, fit the climate-control unit cut-out with the appropriate adaptor plate, seal as required, then route cables through the gland plates. Ensure all panels are earth-connected as specified, and verify IP55 integrity after sealing.
Yes. The design includes a cut-out for an outdoor climate control unit up to 1.5 kW and is prepared for installation of a climate-control unit or adaptor plate to seal the cut-out, enabling straightforward integration with Blue e+ or similar cooling solutions.
The enclosure provides IP55 protection, NEMA 3R compatibility, and IK10 impact resistance, along with a robust stainless steel frame and double-earthed panels to meet demanding outdoor and industrial requirements.
Core footprint is 800 mm width, 1,200 mm height, and 800 mm depth, with an overall height of 1,345 mm including the rain canopy. The base/plinth adds 100 mm height. Front door and 4-point locking support secure mounting, and 25 mm punchings support modular internal layouts.
The frame is stainless steel 1.4301 (AISI 304), panels and base/plinth trim are aluminium (AlMg3), and the rain canopy is aluminium, all finished with UV-resistant powder coating in RAL 7035. This combination provides corrosion resistance, reduced maintenance needs, and long-term appearance in outdoor settings.
