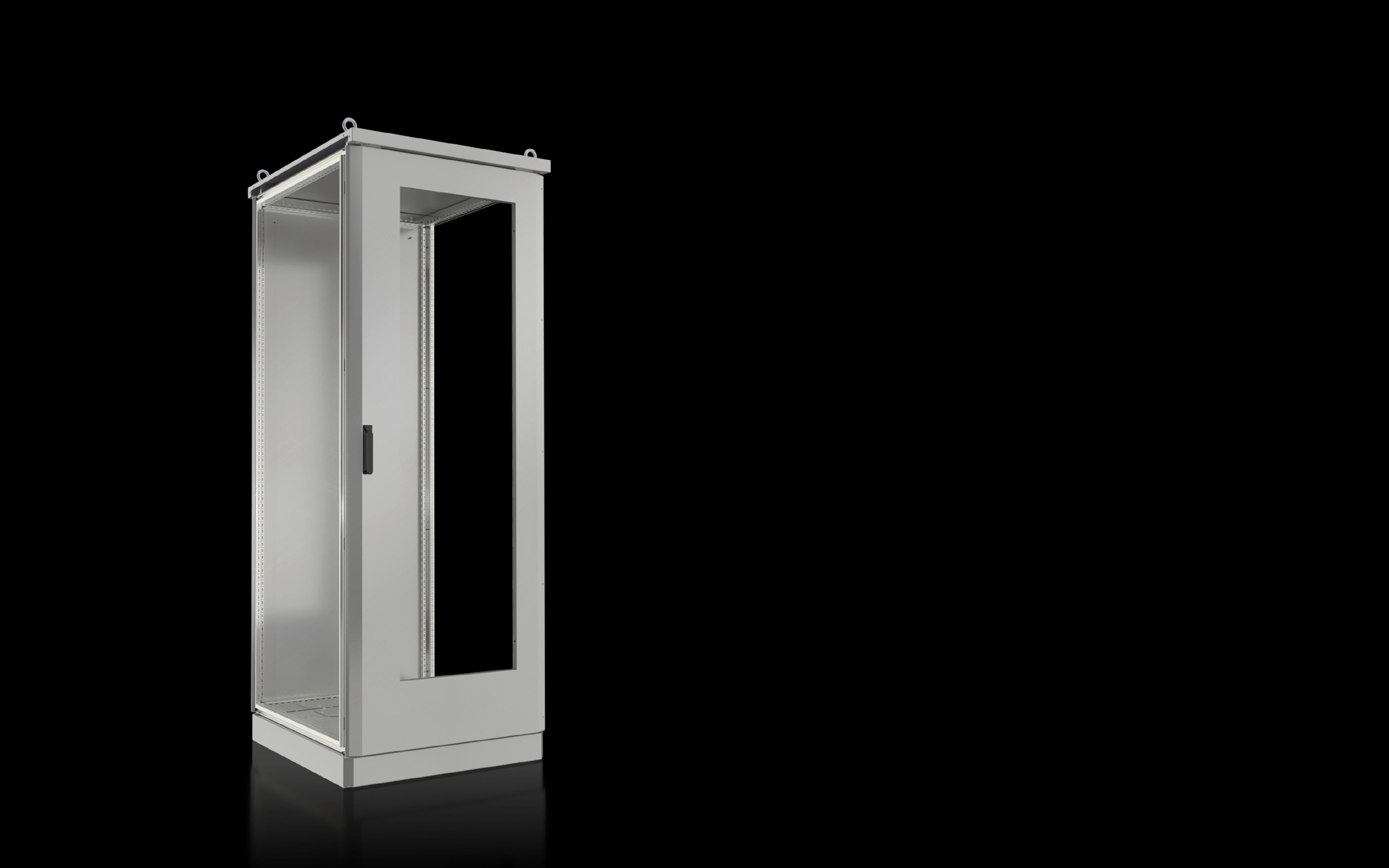

Rittal 9782828 CS Toptec Outdoor Enclosure - IP55
Part Number: 9782828
Manufacturer
Rittal
Part number
9782828
Alt Part Number
CS 9782.828
Quick Summary
Rittal 9782828 CS Toptec outdoor enclosure protects electrical equipment in outdoor industrial environments. It is ideal for housing equipment outdoors, including climate control components and control gear. Users often struggle with sealing cut-outs and integrating cooling units without compromising enclosure integrity. This bayable enclosure delivers IP55 protection, NEMA 3R suitability, and IK10 impact resistance, ensuring performance in dusty, wet, and high-traffic sites. It supports baying configurations and a twin-walled frame with 25 mm system punchings, speeding interior layout and future scalability. The design accommodates a wall-mounted Blue e+ outdoor cooling unit and comes with a rain canopy and a robust base/plinth. With powder-coated, UV-resistant finishes in RAL 7035, it blends durability with maintenance-friendly access.
Product Information
Extended Description
9782828 Rittal: CS Toptec, bayable, WxHxD: 800x2000x800 mm, with cut-out for outdoor climate control unit 2–5 kW
Article number
CS 9782.828
Design
for baying | With cut-out for outdoor cooling units 2 - 5 kW
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Bayable, twin-walled outdoor enclosure | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 800 mm
Dimensions
Overall height: 2,145 mm | Rain canopy height: 45 mm | Height base/plinth: 100 mm
Number of doors
1
Lock
Lock version: 4-point locking | Number of locks: 1 | Lock insert: BJ20027
Gland plate
Size: 2 | Qty.: 2
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 3R
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Note on Model No.
A climate control unit is required to seal the cut-out
Packs of
1 pc(s).
EAN
4028177986152
ECLASS 8.0
27180101
Product description
CS Toptec, bayable, WxHxD: 800x2000x800 mm, with cut-out for outdoor climate control unit 2–5 kW
Bayable, twin-walled outdoor enclosure with a robust frame and 25 mm system punchings in the roof and base frame and vertical sections supporting two mounting levels. This capability speeds interior installation and future expansions, reducing engineering and commissioning time on outdoor sites. Material choices—stainless steel 1.4301 (AISI 304) for the frame, aluminium AlMg3 panels and base/plinth trim, plus an aluminium rain canopy—deliver excellent corrosion resistance and lightweight handling for plants exposed to the elements. IP55 protection, NEMA 3R compatibility, and IK10 impact resistance safeguard sensitive drives and controls from dust, moisture, and mechanical shock, extending service life and simplifying regulatory compliance. A front door with 4-point locking, two gland plates, and two mounting levels enable secure access and flexible cabling. The design supports a 2–5 kW outdoor climate unit cut-out; a climate module seals the enclosure, reducing leaks and energy waste. Ready-to-install components include the rear panel, rain canopy, base/plinth with gland plates, and punchings for future upgrades, delivering a turnkey outdoor housing for demanding environments.
Get a Quick Quote for a Rittal 9782828
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9782828?
Enquire Now
FAQs
The enclosure ships with a base/plinth and rain canopy, plus a frame prepared for 25 mm system punchings in the roof and base, and vertical sections offering two mounting levels. For outdoor use, install the base, rear panel, and canopy, then secure the front door. If installing a climate unit, ensure the cut-out is sealed by a compatible 2–5 kW outdoor unit to achieve IP55 integrity.
This cabinet delivers IP55 protection and NEMA 3R compatibility, plus IK10 impact resistance. The frame uses stainless steel 1.4301 (AISI 304) with aluminium panels and a powder-coated UV-resistant finish in RAL 7035, providing corrosion resistance, weather resilience, and long service life in harsh outdoor environments.
Yes. The enclosure includes a cut-out designed for outdoor climate control units within the 2–5 kW range. A climate control unit is required to seal the cut-out, ensuring the enclosure maintains its IP55 rating while enabling reliable outdoor cooling for mounted equipment.
The enclosure is rated IP55 per IEC 60529, is compatible with NEMA 3R environments, and carries IK10 for impact resistance. It also complies with ECLASS 8.0 (27180101) and uses EAN 4028177986152 for traceability, ensuring alignment with industry procurement and compliance needs.
The bayable design with 25 mm punchings, two mounting levels, and ready-to-install components reduces engineering and field cabling time. The corrosion-resistant materials and weather canopy lower maintenance costs and downtime, while the secure locking and gland plates simplify future upgrades and cable routing, delivering a favorable return on investment in outdoor plant sites.
