Rittal CS 9782.868 Outdoor Enclosure - IP55 NEMA 3R
Part Number: 9782868
Manufacturer
Rittal
Part number
9782868
Alt Part Number
CS 9782.868
Quick Summary
Rittal CS 9782.868 outdoor enclosure protects critical electrical gear in harsh outdoor environments, enabling reliable outdoor control cabinet installations. Operators often wrestle with weather ingress, improper cable routing, and limited retrofit flexibility when upgrading outdoor systems. This enclosure delivers IP55 protection, NEMA 3R compliance, and IK10 impact resistance, backed by a robust stainless steel frame and powder-coated panels. With bayable TopTec design and a climate-control cut-out readiness, it reduces retrofit costs and speeds installation. The result is safer, compliant, and scalable infrastructure for outdoor automation and distribution applications, including climate-control integration and flexible interior layouts. Designed for rugged sites and long service life, it supports efficient service programs.
Product Information
Extended Description

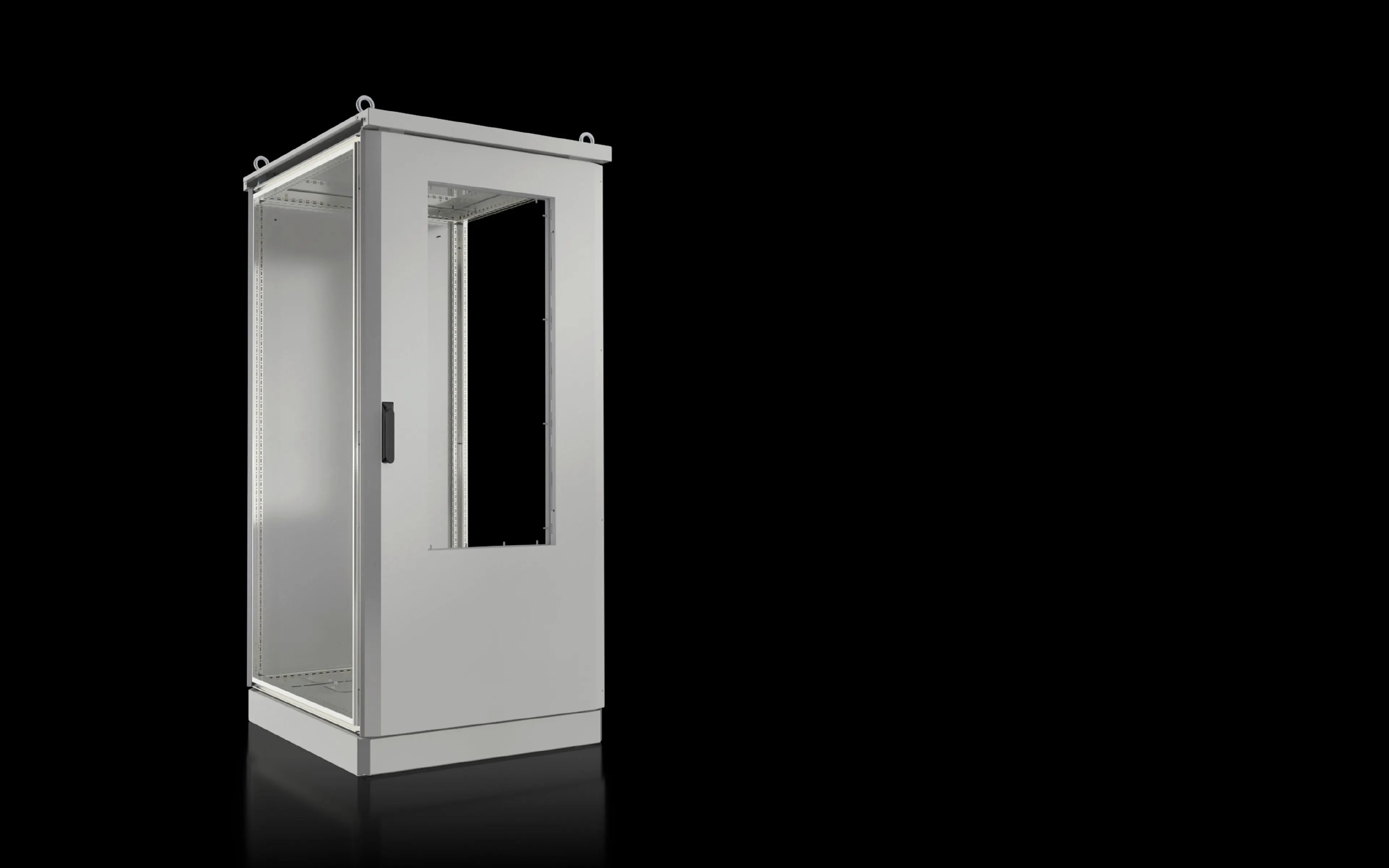

9782868 Rittal: CS TopTec, bayable, WxHxD: 800x1600x600 mm, with cut-out for outdoor climate control unit 1.5 kW
Article number
CS 9782.868
Design
for baying | With cut-out for outdoor cooling units 1.5 kW
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Bayable, twin-walled outdoor enclosure | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width: 800 mm | Height: 1,600 mm | Depth: 800 mm
Dimensions
Overall height: 1,745 mm | Rain canopy height: 45 mm | Height base/plinth: 100 mm
Number of doors
1
Lock
Lock version: 4-point locking | Number of locks: 1 | Lock insert: BJ20027
Gland plate
Size: 2 | Qty.: 2
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 3R
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Note on Model No.
A climate control unit or adaptor plate is required to seal the cut-out
Packs of
1 pc(s).
EAN
4028177986183
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS TopTec, bayable, WxHxD: 800x1600x600 mm, with cut-out for outdoor climate control unit 1.5 kW
Feature: Bayable, twin-walled outdoor enclosure with 25 mm punchings in roof/base and vertical sections with two mounting levels. Business Impact: Enables flexible interior layouts and scalable installations that adapt to evolving control cabinets, reducing rebuild time during upgrades. Application: Ideal for outdoor automation cabinets requiring future-proof interior planning. Feature: Premium materials and finish. Business Impact: Stainless steel frame (1.4301) with aluminium panels and a UV-resistant powder coating provide superb corrosion resistance and long-term durability in exposed environments. Application: Suitable for outdoor sites with rain, humidity, and dust exposure, lowering maintenance costs and downtime. Feature: Robust protection ratings. Business Impact: IP55, NEMA 3R, and IK10 protection guard against ingress and mechanical impact, ensuring continued operation in adverse conditions. Application: Outdoor control enclosures exposed to weather, vandals, or debris. Feature: Security and accessibility. Business Impact: 4-point locking with a single BJ 20027 lock, a front door, and a reinforced enclosure design enhance access control while maintaining safety. Application: Industrial environments requiring secure remote control cabinets. Feature: Climate-control readiness. Business Impact: Cut-out prepared for outdoor climate control units up to 1.5 kW (with adaptor plate to seal), enabling dependable operation in temperature swings. Application: Outdoor sites needing active cooling for sensitive electronics. Feature: Ready for climate solutions & installation efficiency. Business Impact: Bayable design and pre-punched mounting levels streamline installation alongside compatible cooling options like Blue e+ outdoor units. Application: Rapid deployment for energy-efficient outdoor infrastructure and scalable growth.
