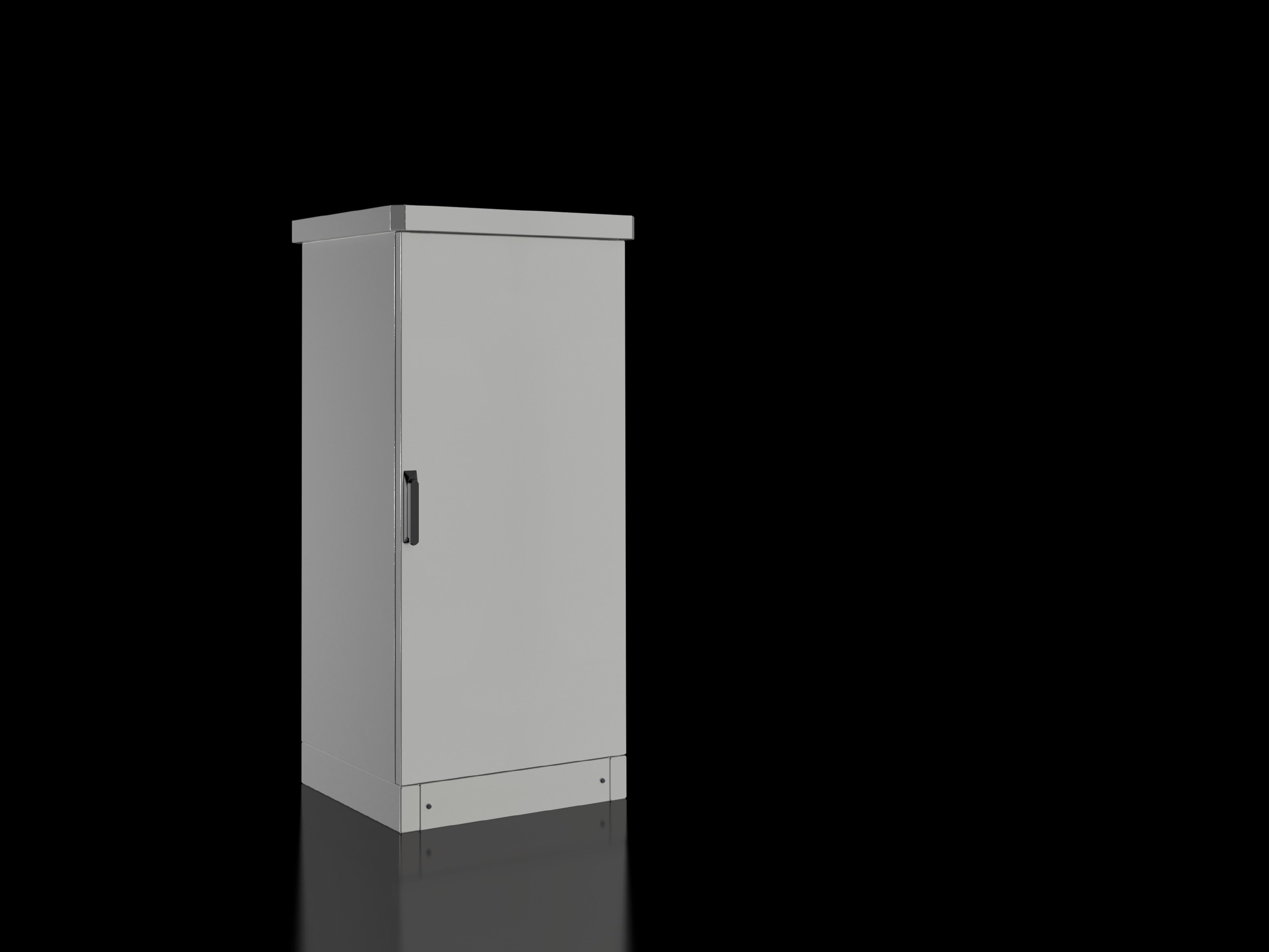

Rittal 9783530 Outdoor Basic Enclosure - IP55 IK10
Part Number: 9783530
Manufacturer
Rittal
Part number
9783530
Alt Part Number
CS 9783.530
Quick Summary
Outdoor Basic enclosure from Rittal protects electrical gear in harsh outdoor environments with a ready-to-use, modular housing solution. Operators often face weather exposure, heat buildup, and project delays when cabinets arrive unassembled or require on-site adaptations. This enclosure delivers IP55 protection, IK10 impact resistance, and UL 50E Type 3R classification to meet outdoor and industrial safety standards. Built from aluminium with a UV-resistant powder coat, it resists corrosion and sun damage while maintaining a professional appearance. The unit’s preconfigured features and straightforward mounting support faster commissioning, reduce field install time, and lower lifecycle costs for industrial automation and electrical infrastructure projects.
Product Information
Extended Description
9783530 Rittal: Outdoor Basic enclosure, WHD: 600x1200x500 mm, aluminium, with 100 mm transport plinth and rain canopy, single door at front
Article number
CS 9783.530
Product description
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides.
Material
Aluminium AlMg3
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Single-walled outdoor enclosure, fully preconfigured | Basic enclosure with gland plate, three-part | 25 mm system punchings in the roof, base, front and in the enclosure depth | Front door(s) with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Transport plinth with screw-fastened trim panels front and rear | Rain canopy
Dimensions
Width: 600 mm | Height: 1,200 mm | Depth: 500 mm
Dimensions
Overall height: 1,355 mm | Rain canopy width: 650 mm | Rain canopy height: 55 mm | Rain canopy depth: 550 mm | Clearance width: 512 mm | Clearance height: 1,112 mm | Clearance depth: 449 mm | Height base/plinth: 100 mm
Number of doors
1
Type rating to UL 50E
Type 3R
IP protection category to IEC 60 529
IP 55
IK Code
IK10
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
38 kg
EAN
4028177569133
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
Outdoor Basic enclosure, WHD: 600x1200x500 mm, aluminium, with 100 mm transport plinth and rain canopy, single door at front
Feature: Aluminium AlMg3 with UV-resistant powder coating. Business Impact: Provides long-term outdoor durability and reduced maintenance in harsh climates, lowering total cost of ownership. Application: Suitable for outdoor control cabinets and process automation enclosures exposed to sun and moisture. Feature: IP55 protection and IK10 impact resistance. Business Impact: Ensures reliable operation in weather-exposed environments and resilience against physical impacts, lowering risk of ingress and equipment damage. Application: Outdoor substations, weather-exposed process lines, and exterior control panels. Feature: WHD 600x1200x500 mm with 100 mm transport plinth and rain canopy. Business Impact: Optimizes space planning and facilitates safe transport and installation, reducing site downtime. Application: Standard outdoor deployments with easy relocation and protective canopy coverage. Feature: Front single-door with robust handle and profile half-cylinder lock, plus preconfigured components. Business Impact: Speeds up installation and enhances security, minimizing commissioning time and on-site adjustments. Application: Industrial automation cabinets requiring secure, quick-access front access. Feature: 25 mm system punchings in roof, base, front, and depth, plus gland plate. Business Impact: Flexible cable management and expansion options, enabling compliant wiring layouts and future upgrades without enclosure disruption. Application: Control cabinets with mixed I/O and fieldbus connections in outdoor environments. Feature: Lightweight yet sturdy aluminium construction with 38 kg per pack. Business Impact: Easier handling and logistics, reducing crane or specialist labor needs while maintaining rigidity. Application: Mobile or modular outdoor installations in factories and utility sites.
Get a Quick Quote for a Rittal 9783530
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9783530?
Enquire Now
FAQs
The CS 9783.530 arrives with a gland plate and three-part 25 mm system punchings in roof, base, and front, plus a 100 mm transport plinth and rain canopy. Front doors include a swing lever handle and profile half-cylinder lock, enabling quick, secure access. Installers can route cables through pre-punched points and finish with trim panels for a clean, compliant enclosure ready for internal equipment.
Yes. The enclosure uses aluminium AlMg3 with UV-resistant powder coating, offering corrosion resistance and durability. Its IP55 filtration and IK10 impact resistance, along with UL 50E Type 3R rating, make it suitable for outdoor automation cabinets, process control stations, and exterior control rooms where weather and mechanical protection are required.
Key certifications include IP protection to IEC 60 529 IP 55, IK10 impact resistance, and UL 50E Type 3R suitability for outdoor use. The unit is described with ETIM EC000261 and ECLASS 27180101 classifications, supporting interoperability with standard procurement and maintenance workflows in regulated environments.
The aluminium AlMg3 construction with UV-resistant coating minimizes corrosion-related maintenance, extending service life in outdoor settings. Preconfigured features reduce field install time, while a single, secure access door simplifies maintenance access. Overall, these factors contribute to lower lifecycle costs and faster project payback in outdoor industrial installations.
Plan cable routing around the 25 mm punchings in roof, base, front, and enclosure depth, and use the included gland plate for protected entries. The 600x1200x500 mm WHD size fits standard outdoor footprint, while the 100 mm plinth and rain canopy aid in drainage and stability. Ensure alignment with the door orientation and front-access clearance for routine maintenance.
