Rittal 9783610 Outdoor Basic Enclosure - IP55
Part Number: 9783610
Manufacturer
Rittal
Part number
9783610
Alt Part Number
CS 9783.610
Quick Summary
Rittal 9783610 Outdoor Basic Enclosure protects outdoor control gear in rugged, weather-exposed installations. This aluminium enclosure is designed to withstand harsh environments while keeping internal electronics shielded from the elements. Customers routinely face weather ingress, corrosion and maintenance costs in exposed sites; the 9783610 addresses these pain points with a robust build and preconfigured features. Key protections include IP55, IK10 and UL 50E Type 3R ratings, providing reliable enclosure integrity and compliance in demanding applications. By combining a powder-coated UV-resistant finish with a durable aluminium body, this enclosure delivers long-term service life and predictable performance, supporting efficient field installations and simplified maintenance. Use cases span outdoor automation cabinets, telecom enclosures, and remote control panels, delivering value through proven protection and installation ease.
Product Information
Extended Description

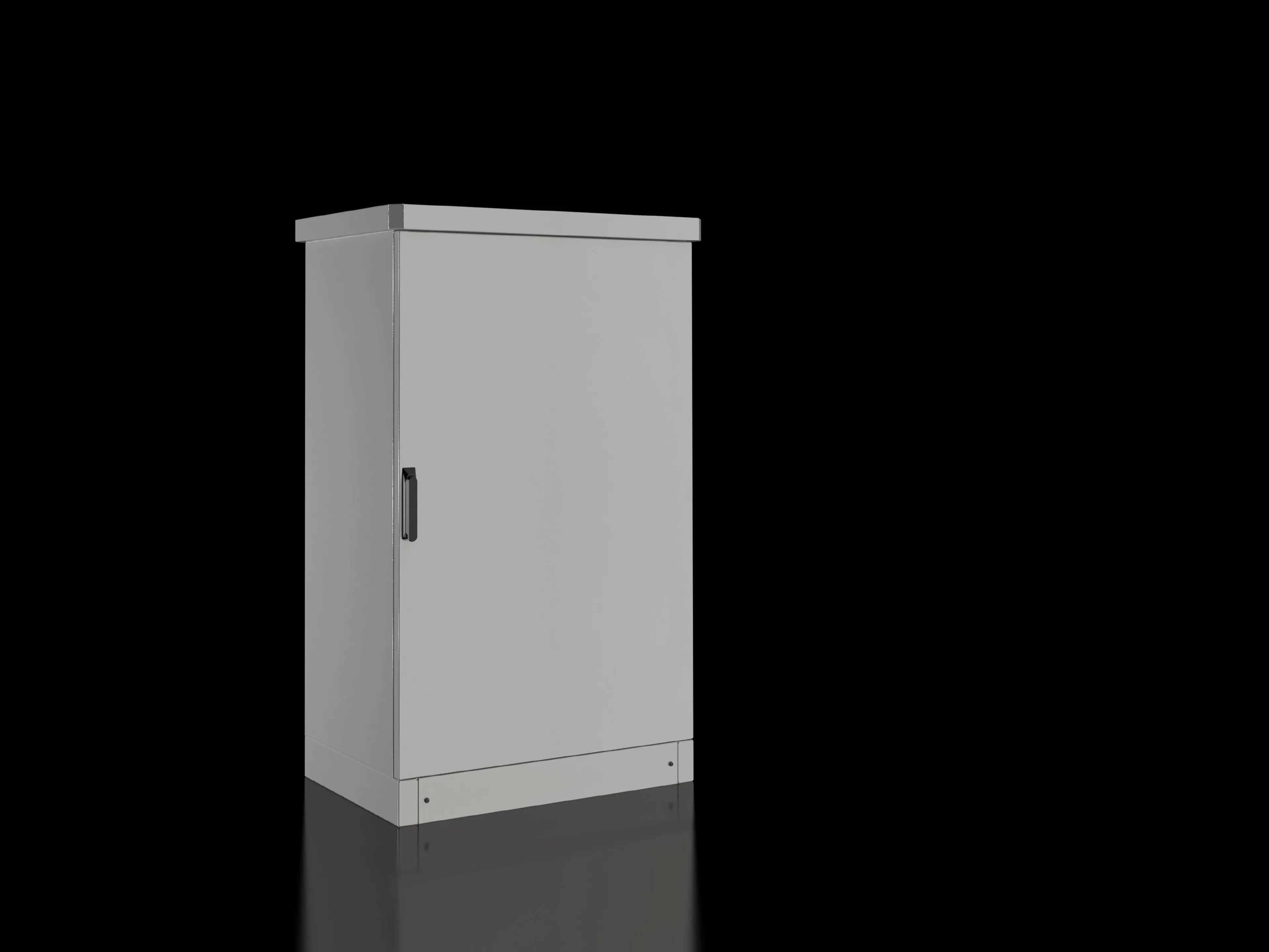

9783610 Rittal: Outdoor Basic enclosure, WHD: 800x1200x500 mm, aluminium, with 100 mm transport plinth and rain canopy, single door at the front
Article number
CS 9783.610
Product description
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides.
Material
Aluminium AlMg3
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Single-walled outdoor enclosure, fully preconfigured | Basic enclosure with gland plate, three-part | 25 mm system punchings in the roof, base, front and in the enclosure depth | Front door(s) with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Transport plinth with screw-fastened trim panels front and rear | Rain canopy
Dimensions
Width:Â 800 mm | Height:Â 1,200 mm | Depth:Â 500 mm
Dimensions
Overall height:Â 1,355 mm | Rain canopy width:Â 850 mm | Rain canopy height:Â 55 mm | Rain canopy depth:Â 550 mm | Clearance width:Â 712 mm | Clearance height:Â 1,112 mm | Clearance depth:Â 449 mm | Height base/plinth:Â 100 mm
Number of doors
1
Type rating to UL 50E
Type 3R
IP protection category to IEC 60 529
IP 55
IK Code
IK10
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
49.5 kg
EAN
4028177569171
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
Outdoor Basic enclosure, WHD: 800x1200x500 mm, aluminium, with 100 mm transport plinth and rain canopy, single door at the front
Feature → Business Impact → Application: Aluminium AlMg3 construction delivers high strength-to-weight ratio and corrosion resistance, reducing maintenance costs and extending service life in exposed environments; Industry impact is lower total cost of ownership for outdoor control cabinets; Application includes outdoor automation racks and weatherproof housings in manufacturing or utility installations. Feature → UV-resistant powder-coated surface minimizes color fading and surface degradation from sun exposure, increasing enclosure life in outdoor locations and improving aesthetics in plant surroundings; Application includes customer-facing outdoor cabinets near plant entrances or service points. Feature → Dimensions WHD 800x1200x500 mm and 1 door with front lock supports compact layout while maximizing internal space for electronics, enabling straightforward retrofits and easy component management; Application includes single-door control panels for compact outdoor installations. Feature → 100 mm transport plinth and rain canopy improve mobility and weather protection during site delivery and installation, reducing installation time and weather-related risk; Application includes outdoor installations with ground-level mounting and rain exposure. Feature → 25 mm system punchings in roof, base, front and enclosure depth provide flexible cabling and glanding options, ensuring compliant cable routing and faster commissioning; Application includes electrical and automation panels requiring clean, compliant glandging. Feature → IP55 and IK10 ratings, UL 50E Type 3R certification, ensure regulatory compliance and rugged performance, minimizing downtime and warranty costs; Application includes critical outdoor control and power distribution cabinets in industrial environments. Feature → Supplied complete with gland plate options, door stays, and transport plinth, enabling faster deployment and reducing the risk of missing accessories on site; Application includes rapid installation for project-driven deployments and multi-site rollouts.
Get a Quick Quote for a Rittal 9783610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9783610?
Enquire Now
FAQs
The 9783610 includes a single-walled outdoor enclosure preconfigured for outdoor use, a gland plate with three-part configuration, 25 mm system punchings in the roof, base, front and enclosure depth, front door with lock BJ 20027, a transport plinth with trim panels, and a rain canopy, enabling a ready-to-install solution with minimal on-site assembly.
This enclosure measures WHD 800x1200x500 mm with an overall height of 1,355 mm and a 100 mm plinth. It carries IP55 protection, IK10 impact resistance, and a UL 50E Type 3R rating, making it suitable for outdoor electrical installations and compliant with common enclosure standards.
Yes. The enclosure is designed for outdoor use, featuring aluminium construction, UV-resistant powder coating, IP55 ingress protection, IK10 impact resistance, and a rain canopy. Its single-door configuration and preconfigured components simplify installation and ensure reliable operation in exposed industrial areas.
The 9783610 is rated IP55 and IK10, with a UL 50E Type 3R classification, supporting compliance for outdoor electrical cabinets. It also carries a robust aluminum construction and UV-resistant coating to meet long-term durability expectations in outdoor environments.
Choosing this enclosure reduces lifecycle costs through durable aluminium construction, weather protection (rain canopy), and preconfigured components that shorten installation time. The integrated glandging options and transport plinth minimize on-site handling and after-sales service, leading to lower maintenance needs and faster project rollouts.
