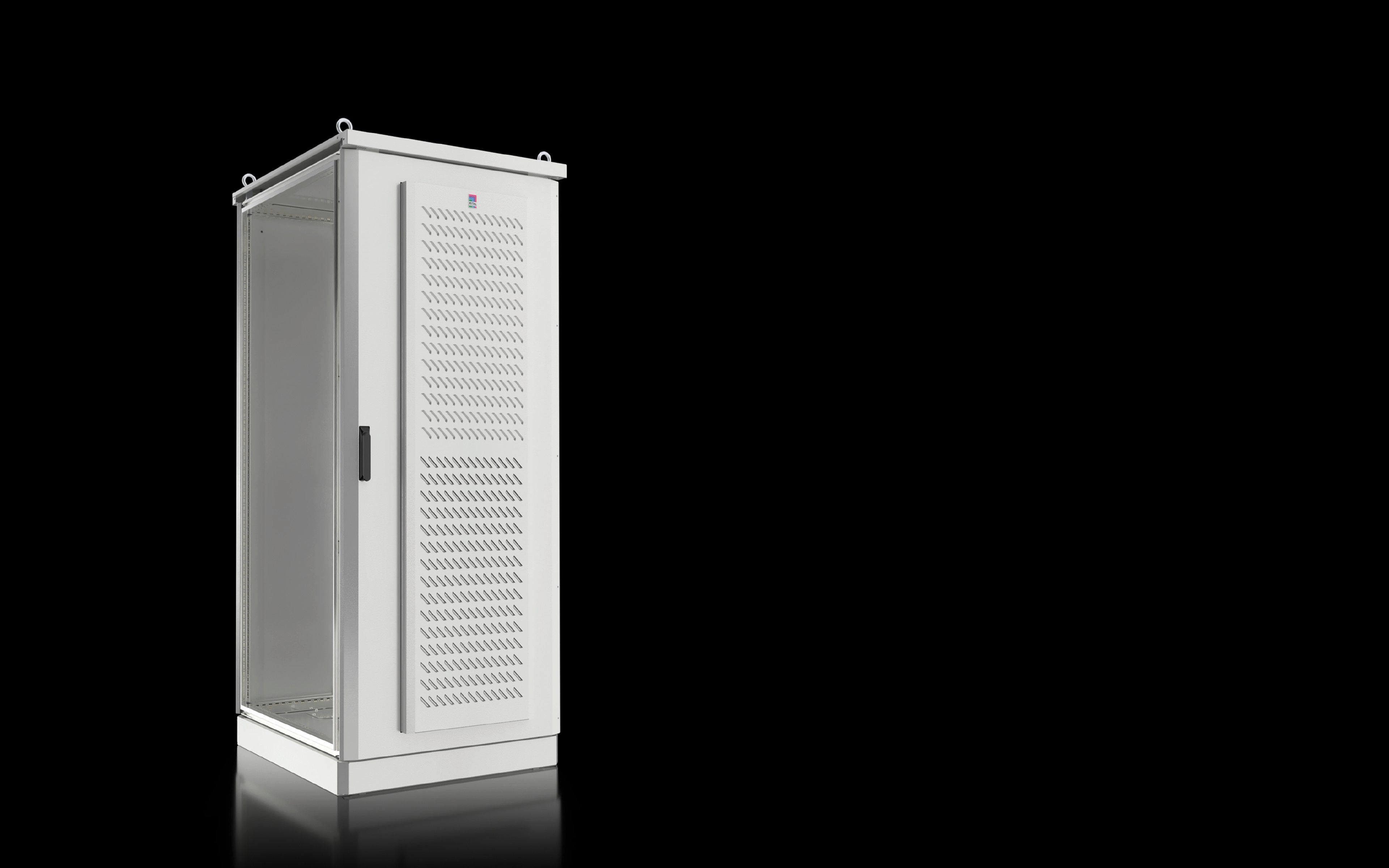

Rittal CS 9783.888 Enclosure – IP55, NEMA 3R Outdoor
Part Number: 9783888
Manufacturer
Rittal
Part number
9783888
Alt Part Number
CS 9783.888
Quick Summary
Rittal CS 9783.888 Enclosure is a bayable, twin-walled outdoor cabinet for control panels in harsh environments. Engineers often struggle with balancing secure enclosure performance and rapid interior reconfiguration at outdoor sites. The design delivers IP55 protection, NEMA 3R compatibility, and IK10 impact resistance, paired with a stainless steel frame and UV‑resistant aluminium panels for long-term reliability. Its bayable architecture and modular interior layout support scalable configurations, while the weather canopy and cable-entry options streamline installation and reduce lifecycle costs in outdoor climate control applications.
Product Information
Extended Description
9783888 Rittal: CS Toptec, bayable, WxHxD: 800x1800x800 mm, with cut-out for outdoor climate control unit 2 - 5 kW
Article number
CS 9783.888
Design
for baying | With cut-out for outdoor cooling units 2 - 5 kW
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Bayable, twin-walled outdoor enclosure | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width: 800 mm | Height: 1,800 mm | Depth: 800 mm
Dimensions
Overall height: 1,945 mm | Rain canopy height: 45 mm | Height base/plinth: 100 mm
Number of doors
1
Lock
Lock version: 4-point locking | Number of locks: 1 | Lock insert: BJ20027
Gland plate
Size: 2 | Qty.: 2
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 3R
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Note on Model No.
A climate control unit is required to seal the cut-out
Packs of
1 pc(s).
EAN
4028177986169
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS Toptec, bayable, WxHxD: 800x1800x800 mm, with cut-out for outdoor climate control unit 2 - 5 kW
Feature → Business Impact → Application: Bayable, twin-walled outdoor enclosure enables modular expansion and flexible interior installation, reducing retrofit time and enabling scalable control panel layouts for evolving automation needs in outdoor environments. This translates to faster commissioning and lower total cost of ownership in industrial facilities and utilities. Feature → Business Impact → Application: Stainless steel enclosure frame (1.4301) with aluminium panels (AlMg3) delivers excellent corrosion resistance and durable aesthetics in demanding sites, minimizing maintenance and replacement costs for outdoor control rooms. Application: harsh outdoor installations and marine-adjacent locations. Feature → Business Impact → Application: Cut-out for outdoor climate control unit 2–5 kW allows integrated cooling when paired with a climate unit, improving uptime and preventing thermal-induced failures. Application: outdoor automation cabinets near hot equipment. Feature → Business Impact → Application: Base/plinth (100 mm) and 25 mm system punchings enable clean cable routing and secure mounting, accelerating cabling installs and future reconfigurations. Application: modular electrical infrastructure. Feature → Business Impact → Application: 4-point door locking (BJ 20027) and double-earthed panels enhance security and EMC shielding, reducing tampering risk and maintenance interruptions. Application: external installations requiring robust access control. Long-tail keywords integrated include bayable outdoor enclosure, climate-control cut-out, IP55 NEMA 3R IK10 enclosure, corrosion-resistant stainless steel frame, UV-resistant powder coating, and modular interior installation.
Get a Quick Quote for a Rittal 9783888
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9783888?
Enquire Now
FAQs
The enclosure includes a 2–5 kW outdoor climate control unit cut-out and requires a climate control unit to seal the opening. It ships as a bayable system with 25 mm system punchings in the roof and base, plus vertical sections offering two mounting levels for flexible interior layouts. Gland plates (two) support clean cable pass-through and organized cabling.
Constructed with a stainless steel 1.4301 frame (AISI 304) and aluminium panels (AlMg3), the CS 9783.888 features UV-resistant powder coating and a rain canopy. It achieves IP55 protection, NEMA 3R compatibility, and IK10 impact resistance, ensuring reliable operation in exposed outdoor environments. All panels are doubled and earthed to improve EMC and safety.
Ideal for outdoor control panels in industrial automation, utilities, and telecoms where weather protection and secure access are critical. The bayable design supports modular expansion as needs evolve, while the 800x1800x800 footprint fits standard rack layouts. The rain canopy reduces water ingress in rain-prone sites, and the 4-point locking system enhances on-site security.
The enclosure meets IP55 (IEC 60 529), NEMA 3R, and IK10 standards, reflecting robust weather, impact, and enclosure integrity for outdoor use. It aligns with ETIM EC000261 and ECLASS 8.0 27180101. Note that sealing the climate control cut-out requires a climate control unit, ensuring compliant operation of the integrated cooling solution.
Long-term value comes from corrosion-resistant materials (AISI 304 stainless steel frame and AlMg3 panels), a dual-wall design, and easy baying for interior reconfiguration. Features like the weather canopy, secure four-point lock, and gland plates minimize maintenance and security concerns. Modular interior layouts and rapid commissioning translate to lower downtime and reduced total cost of ownership.
