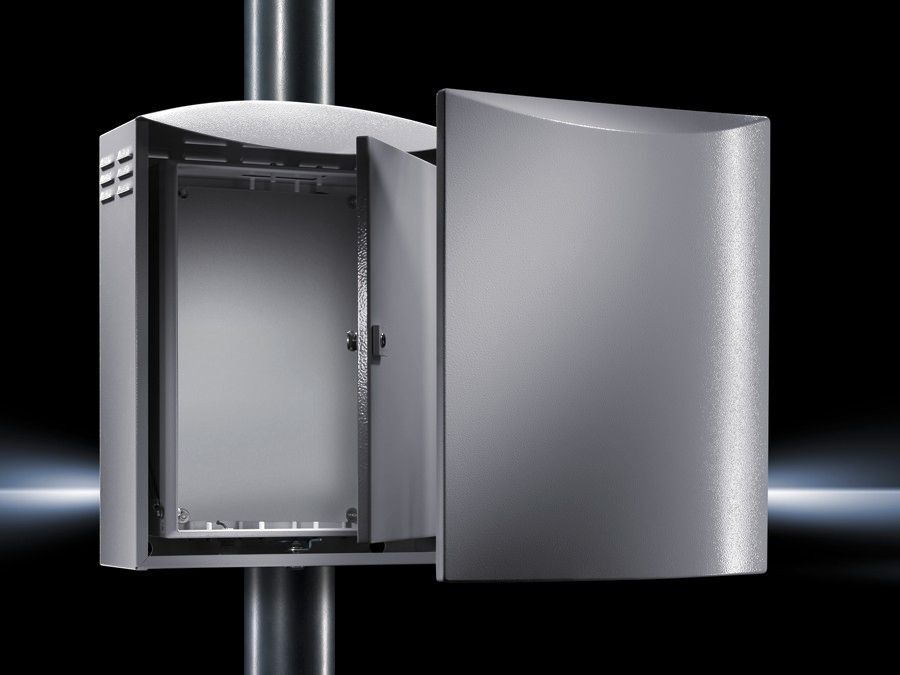

Rittal CS 9791.015 Outdoor Enclosure - IP55
Part Number: 9791015
Manufacturer
Rittal
Part number
9791015
Alt Part Number
CS 9791.015
Quick Summary
Rittal CS 9791.015 outdoor enclosure protects control gear on walls or poles in harsh environments. It addresses weather, dust, and ingress challenges by combining a double-wall outer housing with a vented inner enclosure for reliable, easy access. With IP55 protection, UV-resistant powder coating, and a stainless steel inner chamber, it supports long outdoor service life while keeping electronics secure. The design aligns with ETIM 9 and ECLASS 8.0 references to simplify procurement and data integration. Compatible with standard mounting rails and thermostat or hygrostat accessories, it delivers robust protection with flexible installation and straightforward maintenance in demanding outdoor applications.
Product Information
Extended Description
9791015 Rittal: CS Wall-mounted enclosure, WHD: 370x522x210 mm, aluminum, with mounting plate, Enclosure-within-an-enclosure concept
Article number
CS 9791.015
Product description
Outdoor enclosures for wall or pole mounting. Enclosure-within-an-enclosure concept, outer enclosure with cut-out in the bottom and integrated louvres on the rear panel and side panels for ventilation.
Material
Enclosure and mounting plate: Aluminium, AlMg3 | Door, inner enclosure: Stainless steel 1.4301 (AISI 304)
Surface finish
Enclosure: Powder-coated, UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Double-walled outdoor enclosure, fully preconfigured | Inner enclosure with mounting plate, gland plate and security lock | Mounting bracket for enclosure internal thermostat or hygrostat | Outer enclosure with designer cover and security lock 3524 E | 2 C rails on the rear panel
Dimensions
Width: 370 mm | Height: 522 mm | Depth: 210 mm
Clearances
Clearance width: 280 mm | Clearance height: 380 mm | Clearance depth: 145 mm
Dimensions mounting plate (W x H)
270 mm x 380 mm
Inner enclosure
Width: 300 mm | Height: 400 mm | Depth: 170 mm
Lock
Lock version: Cam | Number of locks: 1
IP protection category to IEC 60 529
IP 55
Note
Extended delivery times.
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
7.2 kg
Customs tariff number
94032080
EAN
4028177193697
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS Wall-mounted enclosure, WHD: 370x522x210 mm, aluminum, with mounting plate, Enclosure-within-an-enclosure concept
Feature: Enclosure-within-an-enclosure concept → Business Impact: Double-wall protection reduces weather ingress and offers enhanced security for outdoor electronics → Application: Outdoor control cabinets on walls or poles, where reliability matters in harsh climates. Feature: Outer enclosure with bottom cut-out and rear/side louvres → Business Impact: Improves ventilation and thermal management without compromising enclosure integrity → Application:控制 cabinets in variable ambient conditions needing passive cooling. Feature: Material combination AlMg3 aluminium outer and 1.4301 stainless inner → Business Impact: Superior corrosion resistance and longevity in outdoor environments → Application: Industrial automation and energy management equipment exposed to humidity and dust. Feature: UV-resistant powder-coated finish in RAL 7035 → Business Impact: Maintains aesthetics and protection over time, reducing repaint/rework costs → Application: Exterior installations with extended service life expectations. Feature: Supplier inclusions (mounting plate, gland plate, security lock; 2 rear C rails; inner enclosure with mounting plate) → Business Impact: Faster installation and flexible upgrade paths, minimizing downtime → Application: Systems requiring quick commissioning and easy retrofit. Feature: Locking security (Cam lock, 1) → Business Impact: Physical protection for sensitive controls and reduced tampering risk → Application: Public or semi-public outdoor control cabinets with access control needs.
Get a Quick Quote for a Rittal 9791015
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9791015?
Enquire Now
FAQs
The CS 9791.015 is supplied with a mounting plate and rear C rails for straightforward rail-based DIN-rail setups, plus a gland plate and security lock. Installation accommodates wall or pole mounting using the 270x380 mm mounting plate and the outer enclosure’s predefined cut-outs, simplifying alignment and securing the enclosure in outdoor locations. This minimizes commissioning time and ensures consistent installation across sites.
Externally the enclosure measures 370 mm wide, 522 mm high, and 210 mm deep, with an inner enclosure of 300 mm by 400 mm by 170 mm. Clearances are 280 mm wide, 380 mm high, and 145 mm deep, enabling adequate space for wiring and components while maintaining IP55 protection and ventilation through integrated louvres.
The CS 9791.015 features an IP55 rating per IEC 60529, ensuring protection against dust and water ingress in external environments. The outer enclosure is aluminium AlMg3, while the inner enclosure is stainless steel 1.4301 (AISI 304), with a UV-resistant polyester powder coat finish for long-term outdoor durability.
Yes. A mounting bracket for an enclosure internal thermostat or hygrostat is included, allowing precise climate control inside the double-walled enclosure. This supports reliable operation of sensitive electronics in outdoor settings and helps manage condensation and temperature-related performance issues.
The enclosure-within-an-enclosure concept provides enhanced protection for the inner equipment, better security, and improved thermal management. It simplifies maintenance, enables straightforward upgrades with mounting plates and rails, reduces downtime during servicing, and extends service life in variable outdoor conditions—delivering predictable total cost of ownership for outdoor automation cabinets.
