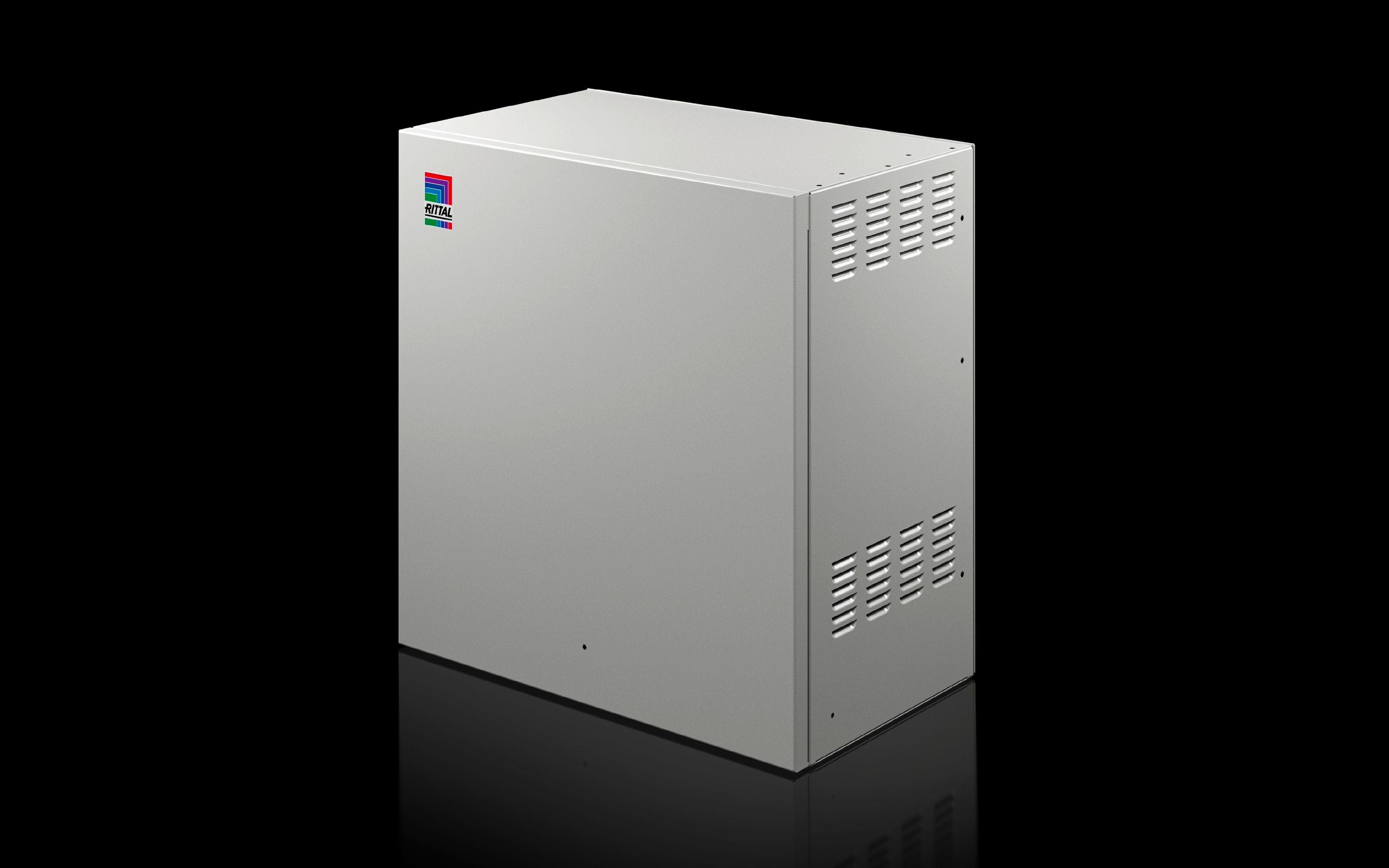

Rittal AX 9792.075 Housing - Outdoor encapsulation, AlMg3
Part Number: 9792075
Manufacturer
Rittal
Part number
9792075
Alt Part Number
AX 9792.075
Quick Summary
Rittal AX 9792.075 housing is an outdoor enclosure solution that protects AX compact enclosures in harsh environments. This design addresses the common challenge of weather ingress and ventilation management in exposed locations, enabling reliable operation. It references industry classifications ETIM 7.0 EC000261 and ECLASS 8.0 27180101 to support interoperability and procurement workflows. For engineers evaluating outdoor control panels, the enclosure provides modularity with wall-mount rails, brush strips, and earthing/assembly parts, enabling an enclosure-within-an-enclosure concept. Choosing this housing supports proactive maintenance planning, reduces downtime, and lowers total cost of ownership by simplifying installation, access, and spare-part compatibility. The result is robust outdoor automation infrastructure with proven material performance and lifecycle value.
Product Information
Extended Description
9792075 Rittal: Outdoor encapsulation for AX compact enclosures, WHD: 600 x 600 x 350 mm
Article number
AX 9792.075
Product description
Housing for AX compact enclosures, for use outdoors. For creating an enclosure-within-an-enclosure concept. Cut-out at the bottom and integrated louvres in the side and base for optimum enclosure ventilation.
Benefits
Housing for AX compact enclosures, for use outdoors
Material
Aluminium AlMg3
Surface finish
Powder-coated
Supply includes
Support rails for wall mounting | Brush strip | M25 stepped collar | Cam lock with 3 mm double-bit insert | Including earthing and assembly parts
Note
Depending on the application/environment, a sheet steel or stainless steel enclosure may be built into the housing
Dimensions
Width:Â 721 mm | Height:Â 750 mm | Depth:Â 448 mm
To fit
Enclosure type:Â AX | Width:Â = 600 mm | Height:Â = 600 mm | Depth:Â = 350 mm
Packs of
1 pc(s).
Weight/pack
22 kg
Customs tariff number
73089059
EAN
4028177961777
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
Outdoor encapsulation for AX compact enclosures, WHD: 600 x 600 x 350 mm
Feature: Outdoor encapsulation for AX compact enclosures Business Impact: Protects sensitive control gear from weather, dirt, and corrosion in outdoor or harsh environments Application: Outdoor industrial panels where reliability and ventilation are critical. Feature: Aluminium AlMg3 with powder-coated finish Business Impact: Delivers corrosion resistance and long service life in challenging environments, reducing repainting and maintenance costs Application: Exterior enclosures exposed to moisture, dust, and temperature variation. Feature: Integrated ventilation with side and base louvres and bottom cut-out Business Impact: Improves enclosure airflow and thermal management, lowering thermal stress on electronics Application: High-duty cycles or heat-generating equipment in outdoor locations. Feature: Supplied with wall-mount rails, brush strip, M25 collar, cam lock, earthing and assembly parts Business Impact: Simplifies field installation and reduces on-site labour, accelerating project timelines Application: Fast deployment in new builds or retrofit projects. Feature: External dimensions Width 721 mm | Height 750 mm | Depth 448 mm; Internal fit AX enclosure 600 x 600 x 350 mm Business Impact: Clear space planning for component layout while ensuring a precise enclosure mix Application: System architects coordinating AX enclosure configurations. Feature: Weight per pack 22 kg | Packs of 1 Business Impact: Manageable handling for shipping, mounting, and serviceability, lowering installation risk Application: On-site lifting and positioning with standard tools. Note: Depending on the application/environment, a sheet steel or stainless steel enclosure may be built into the housing Business Impact: Provides design flexibility to meet specific regulatory or corrosion requirements Application: Projects requiring alternate material options without changing system topology.
Get a Quick Quote for a Rittal 9792075
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9792075?
Enquire Now
FAQs
Begin with confirming external dimensions (721x750x448 mm) and the internal fit (600x600x350 mm). Use the supplied wall-mount rails, brush strip, M25 collar, and cam lock to secure the enclosure, then connect earthing and assembly parts. Ensure proper ventilation by aligning the louvres and bottom cut-out for cable access, and follow local safety guidelines during mounting and commissioning.
The housing features integrated louvres on the side and base paired with a bottom cut-out to promote continuous airflow. This design helps maintain equipment temperatures within safe limits, reducing thermal stress on components and extending service life in outdoor or dusty environments.
Yes. Constructed from aluminium AlMg3 with powder-coated surface, the enclosure resists corrosion and weather exposure while supporting an enclosure-within-an-enclosure concept. It is designed to accommodate AX compact enclosures outdoors and is compatible with standard installation accessories included with the unit.
The data references ETIM 7.0 EC000261 and ECLASS 8.0 27180101 for classification and interoperability. For formal regulatory certifications such as CE marking or IP ratings, please verify with Rittal for your specific region and application, as these may vary by implementation and configuration.
The rugged, powder-coated aluminium enclosure extends service life in outdoor settings, reduces maintenance frequency, and simplifies installation with included hardware. These factors collectively lower downtime, shorten project timelines, and improve total cost of ownership in outdoor automation installations.
