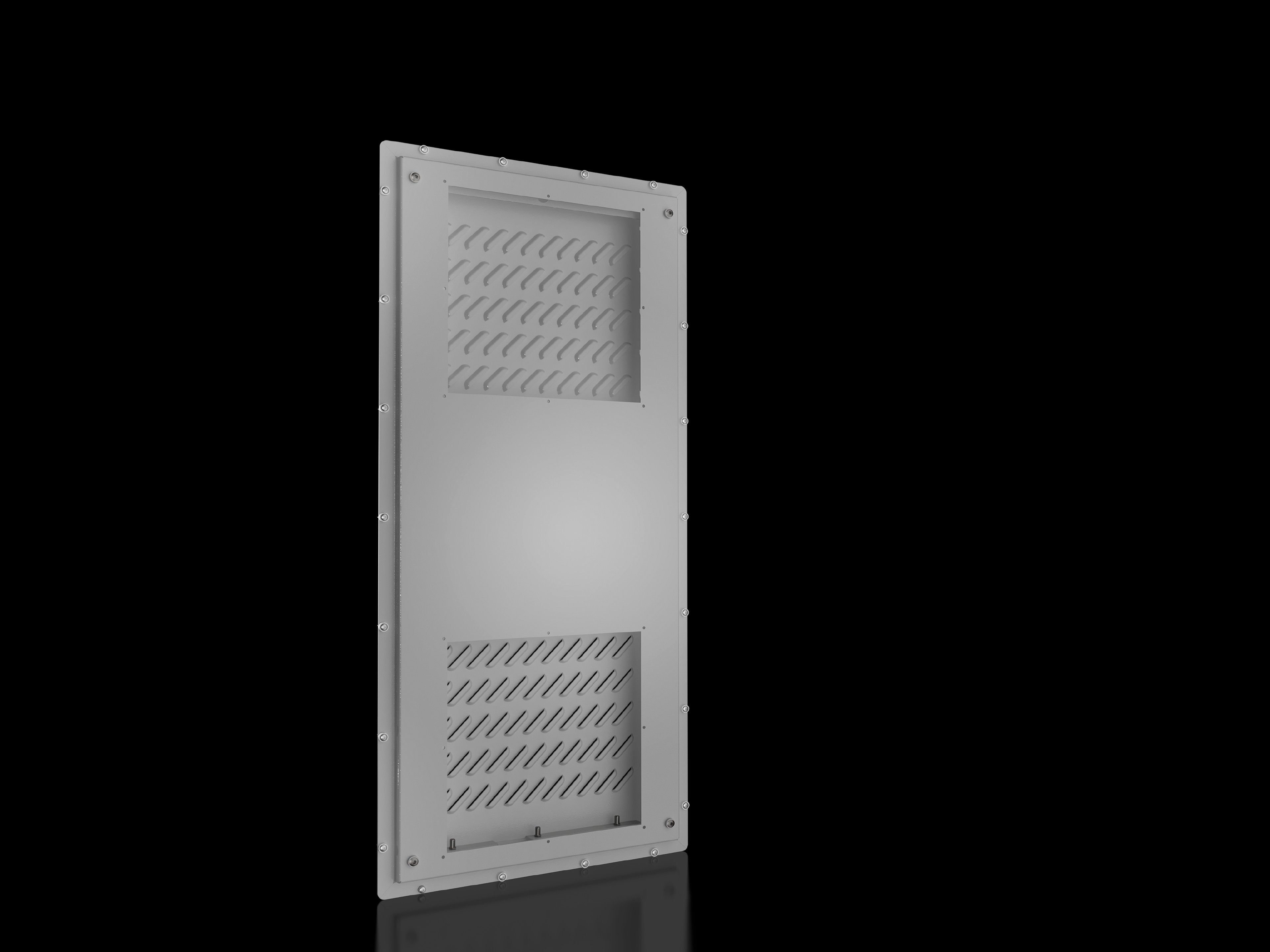

Rittal 9828110 CS Adapter Plate for Toptec - Aluminium
Part Number: 9828110
Quick Summary
CS 9828.110 CS adapter plate for Toptec enables filter-fan integration in climate-control cut-outs. Engineers face retrofit compatibility and airflow challenges when mounting cooling units in dense or modular enclosures. This solution aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, supporting interoperability and procurement consistency. Its aluminium construction in the colour RAL 7035 yields robust durability and easy integration with Toptec systems, while the included designer cover and assembly parts reduce on-site effort. The plate is designed for professional installation by qualified technicians, delivering predictable performance in industrial environments. With weight and dimension details at hand, procurement and installation planning become straightforward. This product helps minimize downtime during retrofits and ensures reliable climate-control fan operation in control cabinets.
Product Information
Extended Description
9828110 Rittal: CS adapter plate for Toptec, to accommodate filter fans, suitable for cooling unit cut-outs
Article number
CS 9828.110
Product description
To accommodate suitable fan-and-filter units with a climate control device cut-out.
Material
Aluminium
Colour
RAL 7035
Supply includes
Adaptor plate | Designer cover | Assembly parts
Dimensions
Width:Â 467 mm | Height:Â 1,042 mm | Depth:Â 50 mm
Packs of
1 pc(s).
Weight/pack
3.92 kg
EAN
4028177963030
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
CS adapter plate for Toptec, to accommodate filter fans, suitable for cooling unit cut-outs
Feature: The CS adapter plate provides dedicated mounting space for Toptec cooling-fan units. Business Impact: This delivers reliable airflow, reduces retrofit time, and minimizes enclosure heat buildup. Application: Ideal for enclosures where Toptec cooling solutions are retrofitted to climate-control cut-outs. Feature: Aluminium construction with a durable RAL 7035 finish. Business Impact: Offers corrosion resistance and professional aesthetics for industrial environments. Application: Suitable for long-term installations inside electrical cabinets and control panels. Feature: Supplied with adaptor plate, designer cover, and assembly parts. Business Impact: Streamlines procurement, reduces on-site parts handling, and speeds installation. Application: Quick, one-batch assembly on shop floors or in the field within standard Toptec frames. Feature: Large footprint compatibility: Width 467 mm, Height 1,042 mm, Depth 50 mm. Business Impact: Ensures compatibility with common enclosure openings and filter-fan units. Application: Facilitates precise alignment when adapting Toptec for climate-control components. Feature: Weight 3.92 kg. Business Impact: Manageable weight for safe handling and straightforward mounting. Application: Supports efficient installation with standard mounting methods. Feature: Classification alignment ETIM 9 EC002620 and ECLASS 8.0 27189261. Business Impact: Facilitates procurement, cataloging, and ERP integration. Application: Enables BOM alignment and cross-system interoperability for manufacturing environments.
Get a Quick Quote for a Rittal 9828110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9828110?
Enquire Now
FAQs
The installation starts with aligning the adaptor plate within the Toptec frame, followed by attaching the designer cover and securing assembly parts. The process is streamlined by the included hardware, reducing field time and ensuring proper clearance for filter-fan units. Always follow pre-installation safety checks and torque specifications for fasteners.
The plate measures Width 467 mm, Height 1,042 mm, Depth 50 mm, and weighs 3.92 kg per pack. These dimensions fit standard enclosure openings and Toptec cut-outs, facilitating precise mounting and predictable airflow paths in climate-control applications.
Yes. The CS adapter plate is specifically designed to accommodate filter-fan assemblies within Toptec climate-control cut-outs, enabling efficient cooling unit integration and reliable airflow management in modular enclosures.
The product references ETIM 9 EC002620 and ECLASS 8.0 27189261, which support consistent specification, procurement, and system interoperability across catalogs and ERP workflows.
The package includes the adaptor plate, designer cover, and assembly parts, enabling a complete, ready-to-install retrofit. This reduces sourcing steps, minimizes field labor, and accelerates project timelines, delivering faster return on investment for enclosure upgrades.
