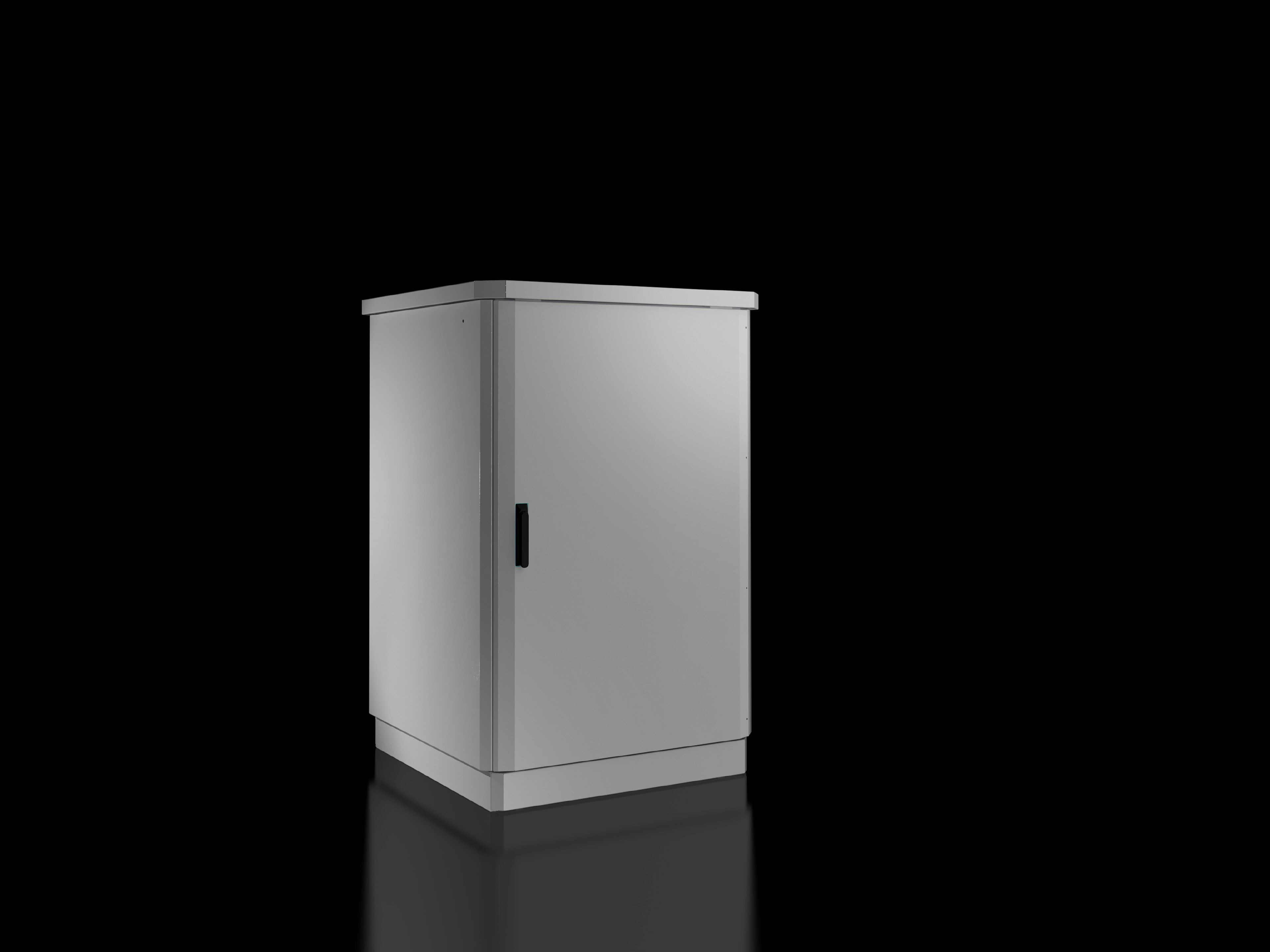

Rittal 9828500 Outdoor Enclosure - IP55 IK10
Part Number: 9828500
Manufacturer
Rittal
Part number
9828500
Alt Part Number
CS 9828.500
Quick Summary
Rittal 9828500 outdoor enclosure protects electrical equipment in harsh environments, delivering weatherproof housing for outdoor installations. Many projects struggle with moisture ingress, corrosion, and difficult mounting in exposed sites. IP protection of IP55 and IK10 impact resistance ensure reliability in dust, water spray, and physical shocks. Designed with a stainless steel frame, aluminium panels, and a UV-resistant powder-coated finish, it integrates with existing enclosures and electrical infrastructure while enabling interior installation on the TS 8 frame. The preconfigured base/plinth, rain canopy, and built-in gland plates streamline installation, reducing on-site labor and downtime. This combination supports long service life and predictable maintenance, translating into lower total cost of ownership for engineered systems.
Product Information
Extended Description
9828500 Rittal: CS TopTec Enclosure WHD: 800x1200x800 mm closed
Article number
CS 9828.500
Design
Without cut-out
Product description
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. Side panels, rear panel and door fully double-walled on the outside, the entire TS 8 frame is available for interior installation.
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Double-walled outdoor enclosure, fully preconfigured | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Side panels left and right | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width:Â 800 mm | Height:Â 1,200 mm | Depth:Â 800 mm
IP protection category to IEC 60 529
IP 55
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
98 kg
EAN
4028177962743
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS TopTec Enclosure WHD: 800x1200x800 mm closed
Outdoor enclosure with 100 mm transport plinth and rain canopy provides a stable base and weather protection for exposed sites, enabling rapid deployment and reduced risk of moisture intrusion in outdoor electrical installations. Business impact: faster project timelines, fewer field adjustments, and improved uptime. Application: outdoor switchgear, control cabinets, and process equipment in manufacturing or infrastructure settings. The design includes side walls, rear panel, and door that are fully double-walled externally, with the TS 8 frame available for interior installation. This delivers superior insulation and internal layout flexibility, supporting a wide range of components and cabling configurations. Measurable outcomes include lower energy losses due to better thermal management and easier retrofit of new equipment with minimal structural changes. Long-term reliability is achieved through corrosion-resistant materials and a robust powder-coat finish suitable for outdoor exposure. Application contexts include chemical plants, offshore facilities, and outdoor automation installations.
Get a Quick Quote for a Rittal 9828500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9828500?
Enquire Now
FAQs
The CS 9828.500 is designed for seamless integration with TS 8 frame interiors and uses 25 mm system punchings in the roof and base frame, plus vertical sections with two mounting levels. This enables quick retrofit or new builds without specialized adapters, reducing installation time and risk while preserving a modular, scalable enclosure concept.
It delivers IP55 ingress protection and IK10 impact resistance, with double-walled exterior panels and a robust aluminium/stainless-steel construction. This combination minimizes dust intrusion and water exposure, ensuring reliable operation for outdoor control cabinets and process equipment in demanding environments.
Yes. The enclosure uses a stainless steel frame (AISI 304) and aluminium panels with a UV-resistant powder coat, offering excellent corrosion resistance and weather durability for coastal or industrial settings where equipment requires robust protection and long service life.
The enclosure meets IP55 protection per IEC 60529 and IK10 impact resistance per EN 62262, providing reliable outdoor performance. CE marking applicability depends on regional requirements; verify regional regulatory compliance for your installation project.
The preconfigured base/plinth, rain canopy, gland plates, and TS 8 interior compatibility reduce installation labor and downtime. Durable materials, powder-coated finish, and modular punchings enable easier upgrades and maintenance, delivering lower lifecycle costs and predictable long-term performance in outdoor industrial environments.
