Rittal 9868500 Outdoor Enclosure - IP55 IK10 TS 8
Part Number: 9868500
Manufacturer
Rittal
Part number
9868500
Alt Part Number
CS 9868.500
Quick Summary
Rittal 9868500 Outdoor Enclosure protects sensitive electrical gear in harsh outdoor environments. This rugged enclosure is designed to withstand weather, dust, and impact while keeping critical controls dry and accessible. Installation challenges like moisture ingress, corrosion, and difficult cable management are reduced with a preconfigured TS TopTec frame and a rain canopy that projects on all sides. The IP55 ingress protection and IK10 impact rating provide dependable reliability for outdoor PLCs, drive controllers, and meter panels. By combining Aluminium panels with a stainless steel frame and a durable powder-coated finish, it delivers long service life, while predrilled gland plates and 25 mm punchings simplify mounting and future upgrades. This translates to lower lifecycle costs and faster time to operation.
Product Information
Extended Description

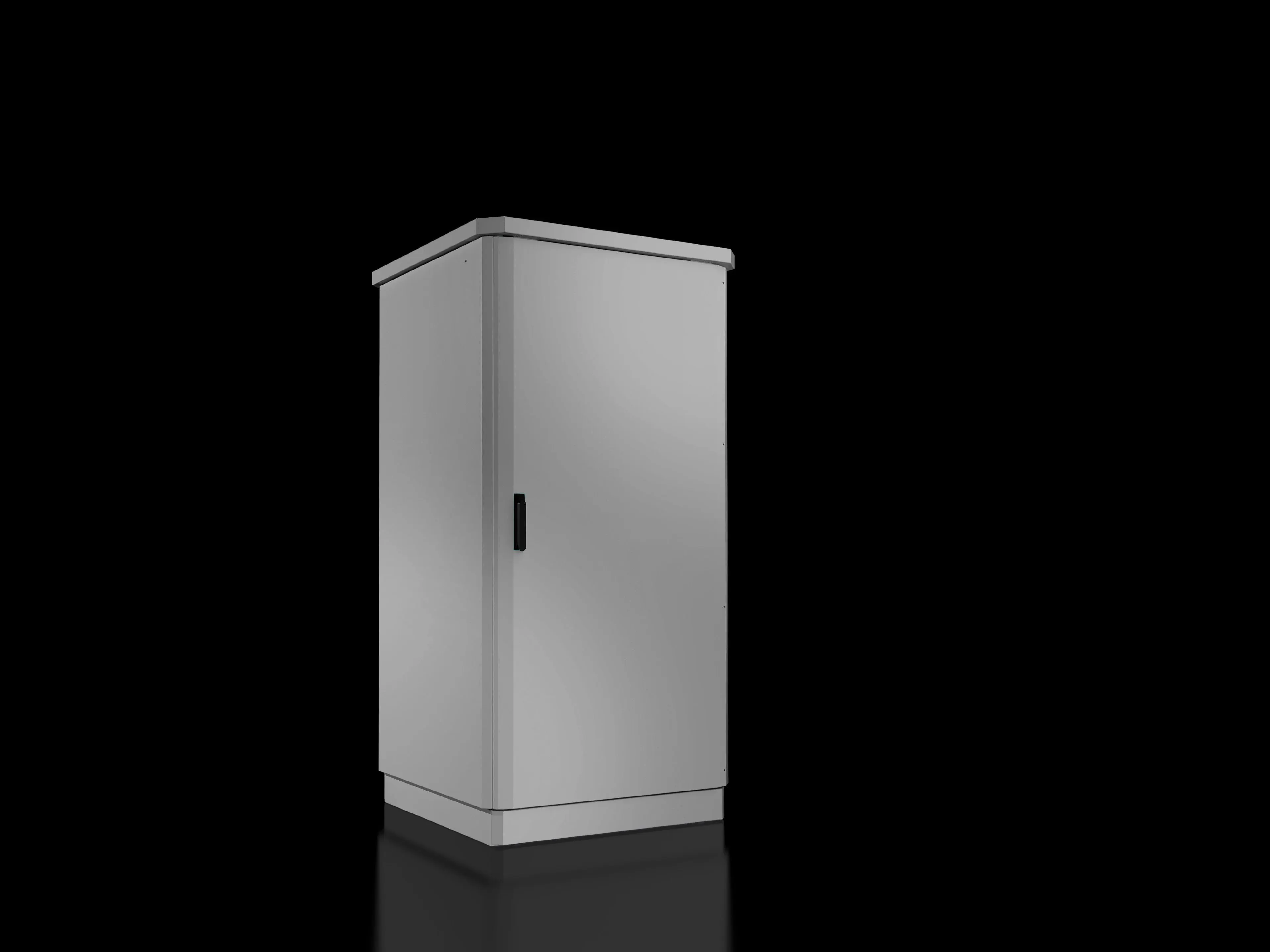

9868500 Rittal: CS TopTec Enclosure WHD: 800x1600x800 mm closed
Article number
CS 9868.500
Design
Without cut-out
Product description
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. Side panels, rear panel and door fully double-walled on the outside, the entire TS 8 frame is available for interior installation.
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Double-walled outdoor enclosure, fully preconfigured | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Side panels left and right | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width: 800 mm | Height: 1,600 mm | Depth: 800 mm
IP protection category to IEC 60 529
IP 55
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
116 kg
EAN
4028177962729
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS TopTec Enclosure WHD: 800x1600x800 mm closed
Feature: Outdoor enclosure with fully double-walled exterior and a TS 8 frame design. Business Impact: Enhanced protection against moisture, dust, and physical shocks reduces maintenance needs and extends asset life. Application: Ideal for outdoor control panels in harsh environments. Feature: 25 mm system punchings in roof and base frame plus vertical sections with two mounting levels. Business Impact: Simplifies modular mounting and future reconfiguration, cutting installation time by hours. Application: Quick integration for evolving automation layouts in process plants. Feature: Front door with swing lever handle and profile half-cylinder lock (BJ 20027). Business Impact: Improves security and simplifies field service access, reducing downtime. Application: Critical control cabinets near production lines or outdoor facilities. Feature: Material mix—stainless steel frame 1.4301, aluminium enclosure panels, and rain canopy. Business Impact: Corrosion resistance and lightweight handling support long service life and lower total cost of ownership. Application: Exterior enclosures for wind, rain, and temperature fluctuations. Feature: Powder-coated UV-resistant finish in RAL 7035. Business Impact: Maintains appearance and protection in sun-exposed installations, reducing repaint cycles. Application: Outdoor electrical infrastructure, telecom, and energy systems. Feature: Preconfigured enclosure package with included gland plates and mounting hardware. Business Impact: Accelerates project timelines and ensures consistent installation quality. Application: New installations and retrofit projects where speed matters.
