Rittal 9868550 Outdoor Enclosure - IP55 IK10 Protection
Part Number: 9868550
Manufacturer
Rittal
Part number
9868550
Alt Part Number
CS 9868.550
Quick Summary
Rittal 9868550 Outdoor Enclosure protects control gear in harsh outdoor environments. Engineers often struggle with weatherproofing, cable routing, and interior installation in exposed sites. It delivers IP55 and IK10 protection with fully double-walled panels, ensuring durability in rain, dust, and mechanical impact. The CS TopTec design includes a climate-control cut-out for outdoor units up to 1.5 kW, plus a preconfigured frame with 25 mm system punchings for fast mounting. This enclosure is ideal for industrial automation, telecom, and utility applications, where reliable enclosure integrity translates to lower maintenance and longer equipment life. It also supports easy integration with external climate control devices and scalable interior layouts for future expansion.
Product Information
Extended Description

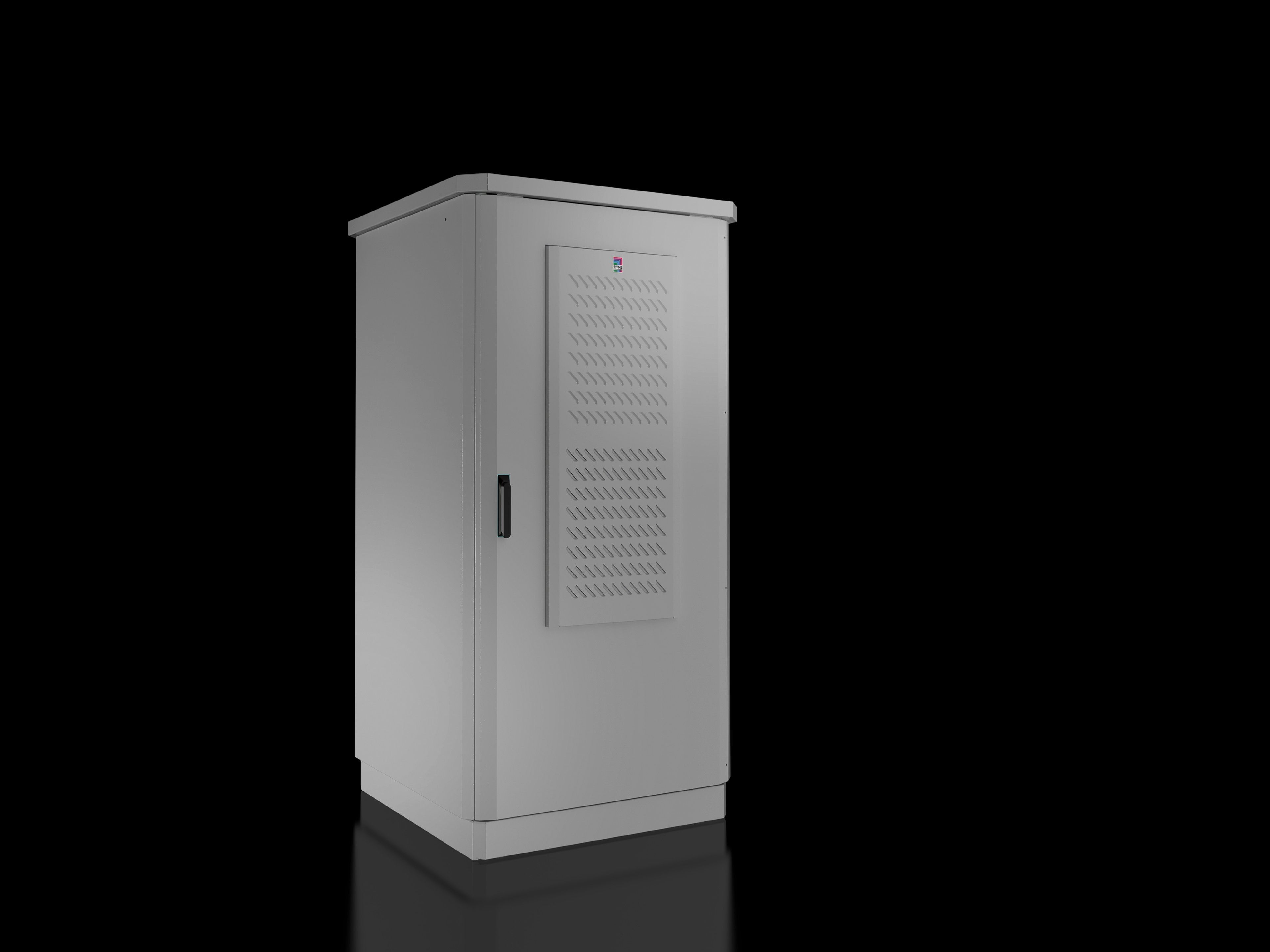

9868550 Rittal: CS TopTec enclosure WHD: 800x1600x800 mm with cut-out for outdoor climate control units 1.5 kW
Article number
CS 9868.550
Design
With cut-out for outdoor cooling units 1.5 kW
Product description
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. Side panels, rear panel and door fully double-walled on the outside, the entire TS 8 frame is available for interior installation.
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Double-walled outdoor enclosure, fully preconfigured | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Side panels left and right | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width:Â 800 mm | Height:Â 1,600 mm | Depth:Â 800 mm
IP protection category to IEC 60 529
IP 55
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Note on Model No.
A climate control unit or adaptor plate is required to seal the cut-out
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
112 kg
EAN
4028177962712
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS TopTec enclosure WHD: 800x1600x800 mm with cut-out for outdoor climate control units 1.5 kW
Feature: Outdoor enclosure with rain canopy and 100 mm transport plinth provides durable protection against weather and contaminants. Business impact: Reduces unplanned downtime and extends equipment life in exposed locations. Application: Field-installed control cabinets in manufacturing yards and outdoor installations. The design simplifies installation and improves reliability for automation systems exposed to rain, dust, or debris. Feature: Fully double-walled side panels, rear panel, and door with a robust outer wall and earthed interior wall. Business impact: Improves EMI/EMC shielding and safety in harsh environments, lowering insulation and grounding issues during commissioning. Application: Outdoor automation panels, utility cabinets, and telecom enclosures. Feature: Material mix—stainless steel frame (1.4301), aluminium panels (AlMg3), and an aluminium rain canopy—with UV-resistant powder coating. Business impact: Delivers corrosion resistance and long service life with managed maintenance costs. Application: Harsh outdoor environments including coastal or industrial areas. Feature: IP55 and IK10 protection ratings. Business impact: Enables reliable protection from water ingress and mechanical impact, minimizing maintenance and part replacement. Application: Outdoor control cabinets in industrial, utility, and transport sectors. Feature: Climate-control cut-out ready for up to 1.5 kW outdoor units. Business impact: Enables integrated climate management without extra housings or adapters, shrinking installation time and lifecycle costs. Application: Enclosures housing heat-sensitive electronics in outdoor deployments. Feature: Preconfigured enclosure frame with 25 mm punchings in roof and base, plus two mounting levels. Business impact: Accelerates on-site mounting and future reconfiguration, lowering total installed cost. Application: Rapid deployment in automation projects and turnkey installations.
Get a Quick Quote for a Rittal 9868550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9868550?
Enquire Now
FAQs
The CS 9868.550 includes a cut-out designed for outdoor climate control units up to 1.5 kW. It ships with a preconfigured frame featuring 25 mm system punchings in the roof and base, plus vertical sections with two mounting levels, enabling quick, reliable integration without extra adapters.
It carries IP55 and IK10 protection, with double-walled outer panels and a fully earth-connected internal wall arrangement. This combination provides robust protection from rain, dust ingress, and mechanical shocks typical of outdoor environments.
Yes. Its large 800x1600x800 footprint accommodates diverse control gear, and the climate-control cut-out supports integrated cooling for outdoor automation, telecom cabinets, and utility switchgear, delivering reliable operation in harsh outdoor conditions.
Key specifications include IP55 protection, IK10 impact rating, and materials listed as stainless steel frame (1.4301) with aluminium panels. It aligns with ETIM EC000261 and ECLASS 8.0 27180101 classifications, with EAN 4028177962712.
The corrosion-resistant aluminium panels and stainless steel frame minimize upkeep, while the preconfigured frame and gland plates reduce installation time. This translates to lower lifecycle costs and faster time-to-operational status for outdoor automation equipment.
