Rittal 9888500 Outdoor Enclosure - IP55 Rating
Part Number: 9888500
Manufacturer
Rittal
Part number
9888500
Alt Part Number
CS 9888.500
Quick Summary
Outdoor enclosure 9888500 from Rittal protects electrical gear for rugged outdoor installations. When weather, dust, and wind-driven contaminants threaten uptime, a tough cabinet with reliable sealing and robust mounting is essential. The enclosure carries IP55 protection and IK10 impact resistance, providing dependable performance in challenging environments. Built around the TS TopTec frame, it ships preconfigured, with double-walled external panels and a rain canopy for all-round protection. This design supports rapid installation, simplified maintenance, and scalable configurations, reducing field labor and lifecycle costs while ensuring compliance with industry standards. For engineers and procurement teams, it offers predictable enclosure performance and long service life in outdoor applications such as substations, outdoor control rooms, and industrial process sites.
Product Information
Extended Description

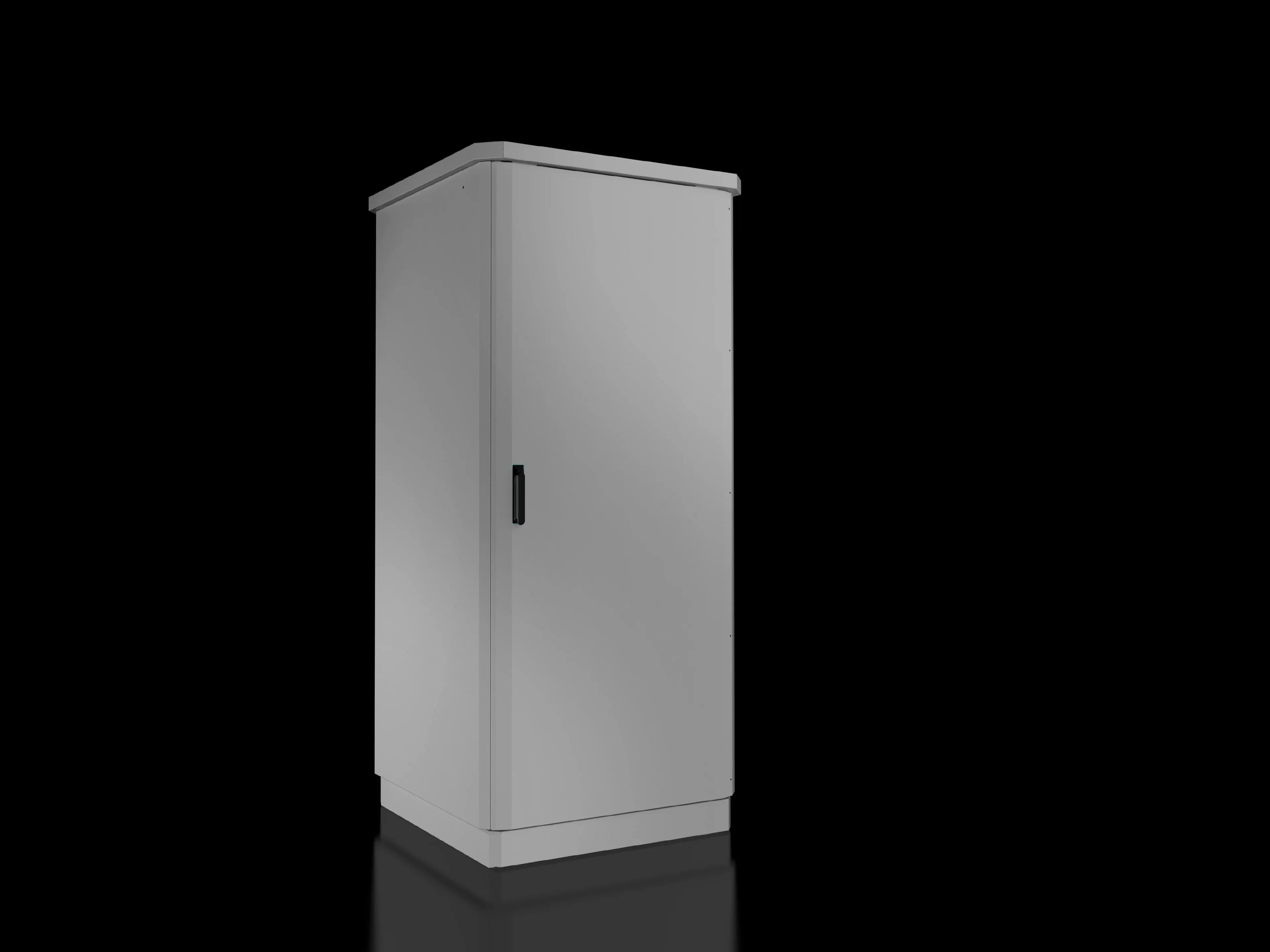

9888500 Rittal: CS TopTec Enclosure WHD: 800x1800x800 mm closed
Article number
CS 9888.500
Design
Without cut-out
Product description
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. Side panels, rear panel and door fully double-walled on the outside, the entire TS 8 frame is available for interior installation.
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Double-walled outdoor enclosure, fully preconfigured | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Side panels left and right | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width: 800 mm | Height: 1,800 mm | Depth: 800 mm
IP protection category to IEC 60 529
IP 55
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
118 kg
EAN
4028177962705
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
CS TopTec Enclosure WHD: 800x1800x800 mm closed
Preconfigured TS TopTec frame with 25 mm punchings in roof and base, plus two mounting levels, enables fast, standardized installation and simplifies future upgrades. Business impact: reduced commissioning time and lower risk of wiring errors. Application: outdoor control cabinets in process plants or substations where quick deployment matters. The double-walled exterior panels and earthed design enhance safety and EMI shielding, delivering improved reliability and maintenance intervals. Application: harsh environments with strict safety or regulatory considerations. IP55 protection and IK10 impact resistance provide durable weather sealing and physical resilience, ensuring uptime in outdoor locations and reducing replacement costs. Application: outdoor automation cabinets exposed to rain, dust and impact. Aluminium panels, rain canopy, and stainless steel frame deliver corrosion resistance and long service life, lowering lifecycle costs in corrosive or humid environments. Application: coastal facilities or chemical plants. Dimensions 800x1800x800 mm with a weight of 118 kg per pack, base/plinth with gland plates and front/rear trim panels, plus a preconfigured TS frame, streamline transport and installation. Application: projects requiring a ready-to-install outdoor enclosure with flexible gland entry options. The front door with lever handle and lock, side and rear panels, and a fully preconfigured set support secure access and scalable wiring layouts. Application: remote facilities needing reliable access control and future expansion.
Get a Quick Quote for a Rittal 9888500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9888500?
Enquire Now
FAQs
The enclosure provides IP55 weather protection against dust and water ingress and IK10 impact resistance. It uses a stainless steel frame (AISI 304) with double-walled aluminium panels, internal earth continuity, and a rain canopy. This combination ensures reliability in outdoor environments such as substations and process plants.
Yes. It ships as a fully preconfigured outdoor enclosure with a TS TopTec frame featuring 25 mm punchings in the roof and base, vertical sections with two mounting levels, and hardware sets including front door, handle, stay, and a profile half-cylinder lock. The supply also includes side and rear panels, and a rain canopy.
The enclosure measures 800 mm wide, 1,800 mm high, and 800 mm deep. It is supplied as a single pack with a weight of 118 kg. The base/plinth includes gasketed gland plates and trim panels front and rear, making wiring entry straightforward while maintaining the weather seal.
The base/plinth ships with gland plates and the roof/base frame includes 25 mm punchings to accommodate modular cable entry. Front and rear trim panels simplify gland installation, and all enclosure panels are double-walled and earthed to maintain safety and EMI control in outdoor environments.
Industries such as process automation, oil and gas, water treatment, and utilities can deploy this enclosure for outdoor control cabinets, substations, and remote monitoring stations, where IP55 protection, IK10 impact resistance, corrosion resistance, and a durable rain canopy reduce downtime and extend service life.
