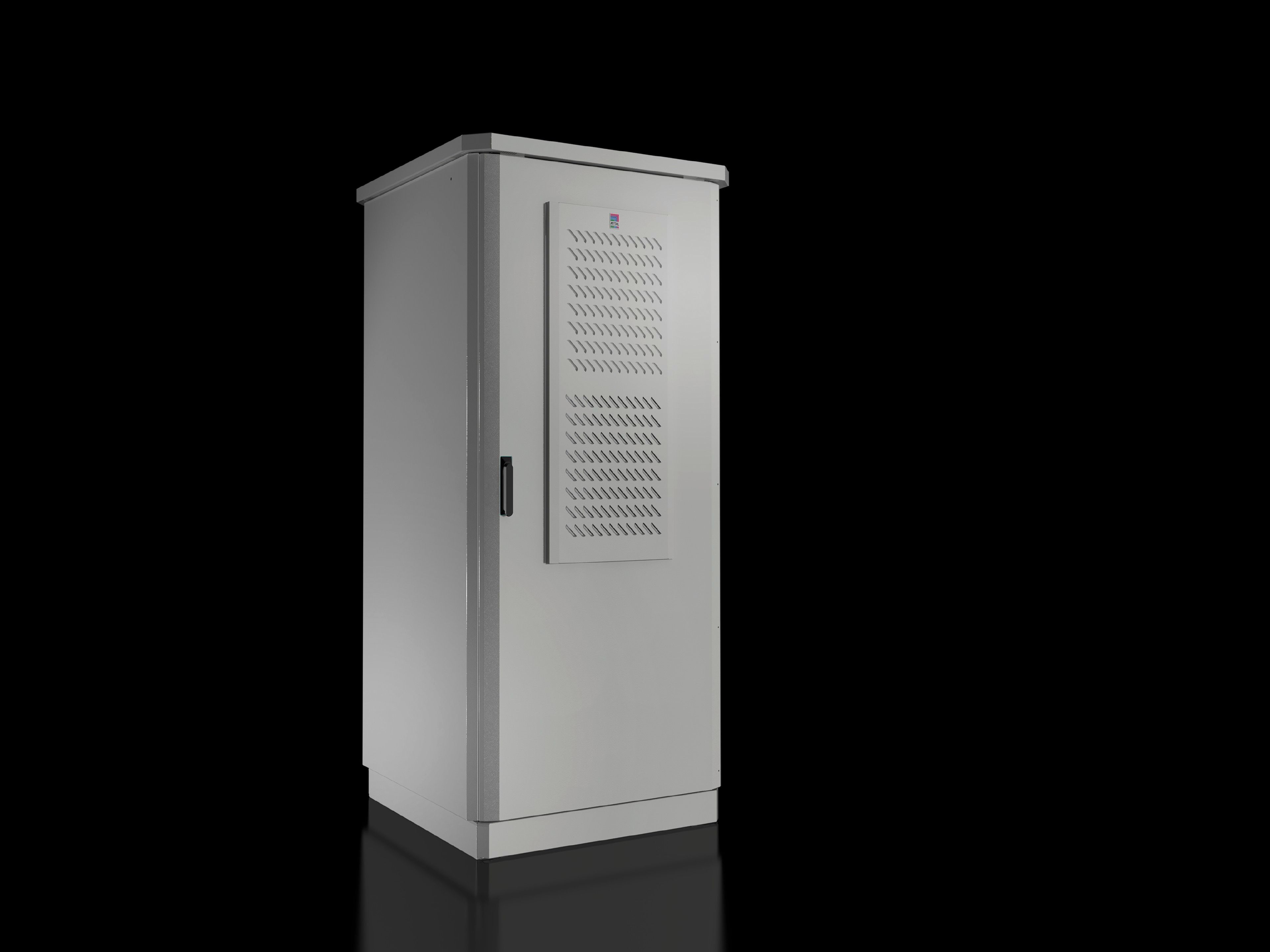

Rittal CS 9888.550 Outdoor Enclosure - IP55 & IK10
Part Number: 9888550
Manufacturer
Rittal
Part number
9888550
Alt Part Number
CS 9888.550
Quick Summary
Rittal CS 9888.550 Outdoor Enclosure protects outdoor electrical assemblies in harsh environments. Contractors and maintenance teams struggle with weather-related ingress, condensation, and cumbersome installation when upgrading outdoor control cabinets. Rated IP55 with IK10 protection, the enclosure’s double-walled panels and earthed outer wall deliver reliable safety in demanding settings. The design includes a cut-out for outdoor climate-control units up to 1.5 kW, simplifying integration without extra retrofits. Coupled with aluminum panels, stainless steel frame, and UV-resistant finish, it offers long-term corrosion resistance and predictable maintenance costs. This combination supports efficient, compliant installations for OEMs, system integrators, and end users.
Product Information
Extended Description
9888550 Rittal: CS TopTec enclosure WHD: 800x1800x800 mm with cut-out for outdoor climate control units 1.5 kW
Article number
CS 9888.550
Design
With cut-out for outdoor cooling units 1.5 kW
Product description
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. Side panels, rear panel and door fully double-walled on the outside, the entire TS 8 frame is available for interior installation.
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Double-walled outdoor enclosure, fully preconfigured | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Side panels left and right | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width: 800 mm | Height: 1,800 mm | Depth: 800 mm
IP protection category to IEC 60 529
IP 55
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Note on Model No.
A climate control unit or adaptor plate is required to seal the cut-out
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
122 kg
EAN
4028177962699
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS TopTec enclosure WHD: 800x1800x800 mm with cut-out for outdoor climate control units 1.5 kW
Feature: Preconfigured TS 8 frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels. Business Impact: Accelerates integration, reduces field modifications, and provides reliable mounting for drives and controls. Application: Ideal for process automation cabinets exposed to weather, wind, and dust. Feature: Fully preconfigured, double-walled outdoor enclosure, with side panels, rear panel and door. Business Impact: Enhanced environmental protection and safety, simplifies maintenance, and minimizes leak paths. Application: Outdoor substations and control cabinets in manufacturing and utility sites. Feature: 800x1800x800 mm dimensions with IP55 and IK10. Business Impact: Confident installation in constrained spaces while withstanding impact and moisture. Application: Wall- or stand-mounted outdoor enclosures in plants and outdoor installations. Feature: Material mix—aluminium enclosure panels and base/plinth trim, stainless steel frame 1.4301 (AISI 304), rain canopy aluminium. Business Impact: Improves corrosion resistance, service life, and ease of maintenance while maintaining appearance. Application: Marine and outdoor environments or food & beverage facilities. Feature: Supply includes door with security features, gland plates, trim panels, and wind/rain canopy. Business Impact: Reduces procurement time and site installation steps, lowers integration risk. Application: OEMs integrating climate control or climate units for outdoor use.
Get a Quick Quote for a Rittal 9888550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9888550?
Enquire Now
FAQs
The enclosure ships with a preconfigured TS 8 frame, roof and base 25 mm punchings, and vertical sections with two mounting levels. This accelerates installation, reduces field modifications, and ensures alignment with standard DIN rail-mounted devices and drives for outdoor control cabinets.
The CS 9888.550 provides a cut-out designed for outdoor climate control units up to 1.5 kW. A climate control unit or adaptor plate is required to seal the opening, enabling straightforward integration of refrigeration or heater units without compromising IP55 protection.
The enclosure carries IP55 ingress protection and IK10 impact resistance. These ratings translate to robust dust and water ingress protection and high resistance to mechanical impacts, making the enclosure suitable for exposed outdoor environments and high-traffic industrial settings.
Yes. Preconfigured panels, a double-walled build, earthed external walls, and included gland plates minimize field assembly time, reduce potential sealing leaks, and simplify future maintenance. This translates to lower labor costs and more predictable long-term operating expenses.
The CS 9888.550 achieves IP55 and IK10 protection with aluminum panels and a stainless steel frame. While CE markings are common for European products, verify local electrical standards and labeling. The enclosure is designed for compatibility with climate-control accessories and modular mounting systems typical in automation environments.
