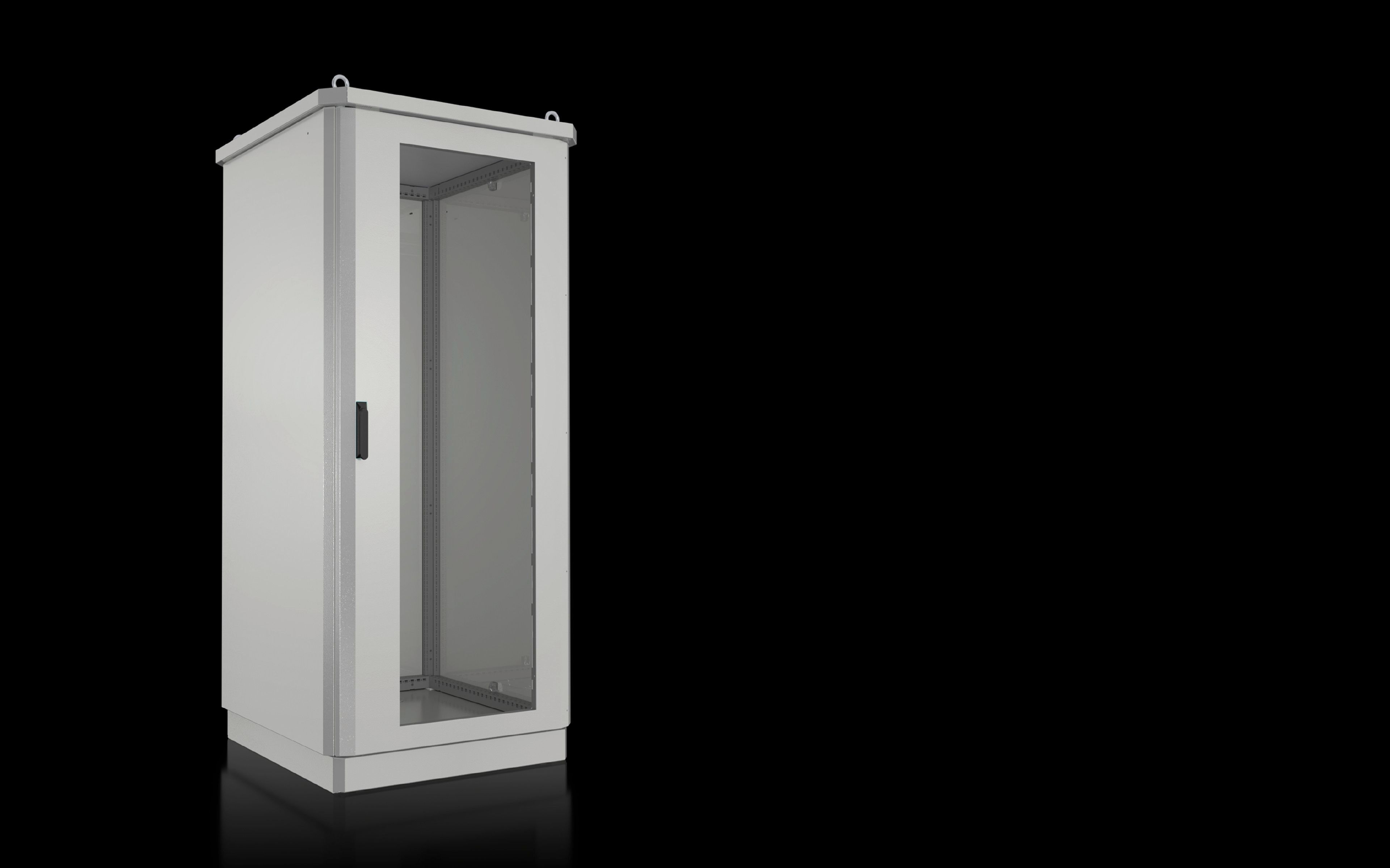

Rittal CS 9888.560 Outdoor Enclosure - IP55/IK10
Part Number: 9888560
Manufacturer
Rittal
Part number
9888560
Alt Part Number
CS 9888.560
Quick Summary
Rittal CS 9888.560 Outdoor Enclosure protects outdoor control gear in harsh environments, enabling reliable operation. It addresses corrosion risk, weather exposure, and space constraints that challenge durable outdoor installations. This enclosure delivers IP55 protection and IK10 impact resistance, with double-walled, earthed panels and a robust frame. Coupled with preconfigured mounting options and 25 mm punchings for roof and base, it reduces installation time for climate-control units 2–5 kW, delivering measurable uptime and cost savings while integrating with outdoor electrical infrastructure.
Product Information
Extended Description
9888560 Rittal: CS Toptec enclosure WHD: 800x1800x800 mm with cut-out for outdoor climate control units 2-5 kW
Article number
CS 9888.560
Design
With cut-out for outdoor cooling units 2 - 5 kW
Product description
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. Side panels, rear panel and door fully double-walled on the outside, the entire TS 8 frame is available for interior installation.
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Double-walled outdoor enclosure, fully preconfigured | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Side panels left and right | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width: 800 mm | Height: 1,800 mm | Depth: 800 mm
IP protection category to IEC 60 529
IP 55
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Note on Model No.
A climate control unit is required to seal the cut-out
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
118 kg
EAN
4028177981942
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS Toptec enclosure WHD: 800x1800x800 mm with cut-out for outdoor climate control units 2-5 kW
Feature: Outdoor enclosure with a 100 mm transport plinth and rain canopy on all sides → Business Impact: Enhanced weather protection and easier site handling reduce field damage and installation risk → Application: Outdoor substations, control cabinets in exposed environments. Feature: Stainless steel 1.4301 frame and aluminium panels plus aluminium rain canopy → Business Impact: Superior corrosion resistance and long service life lower maintenance costs → Application: Harsh industrial outdoors, chemical plants, outdoor automation. Feature: IP55 protection and IK10 impact resistance → Business Impact: Meets demanding dust and impact requirements, improving safety and compliance → Application: Outdoor control panels near heavy machinery. Feature: Fully double-walled panels with external-to-internal earth connection → Business Impact: Reduced heat load on climate systems and enhanced electrical safety → Application: Pre-staged climate-controlled circuits with energy efficiency in mind. Feature: Supplied with front door, gland plates, and two mounting levels in vertical sections, plus 25 mm punchings in roof/base → Business Impact: Accelerated assembly and flexible integration for climate control units 2–5 kW → Application: Rapid deployment in field installations; scalable for future upgrades.
Get a Quick Quote for a Rittal 9888560
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9888560?
Enquire Now
FAQs
The CS 9888.560 is preconfigured for rapid installation, featuring a 800x1800x800 mm footprint, a 100 mm transport plinth, and a rain canopy. It includes roof and base 25 mm system punchings and vertical sections with two mounting levels, plus a front door with a robust lock. Ensure space for the climate control unit cut-out and required seal around outdoor units. Planning should account for earthing connections and gland plate locations for feed-throughs, as well as accessibility for maintenance and future expansion.
Yes. The enclosure is designed with a cut-out specifically sized for outdoor climate control units in the 2–5 kW range. Note that a climate control unit is required to seal the cut-out, so ensure you have the appropriate unit and sealing arrangement. The roof/base punchings and vertical mounting levels support secure installation and service access, enabling reliable cooling system integration in outdoor environments.
The CS 9888.560 provides IP55 protection and IK10 impact resistance, along with double-walled, earthed panels. The enclosure uses a stainless steel (AISI 304) frame with aluminium panels and rain canopy, offering corrosion resistance, UV stability, and robust mechanical protection. This combination supports long-term reliability in outdoor industrial settings, reducing risk of water ingress, dust intrusion, and physical impact on interior equipment.
The enclosure ships with 25 mm system punchings in the roof and base, plus vertical sections offering two mounting levels, which accelerates initial install and simplifies future upgrades. Front door hardware, gland plates, and trim panels are included for straightforward integration of cables and devices. This layout minimizes field modifications, shortens commissioning time, and supports scalable automation expansion without rework.
Key materials include a stainless steel 1.4301 frame (AISI 304) and aluminium enclosure panels and base plinth trim (AlMg3), with an aluminium rain canopy. The surface is powder-coated with UV-resistant polyester, and panels are fully double-walled with external-to-internal earthing. These choices provide corrosion resistance, reduced maintenance, and prolonged lifecycle in outdoor settings, helping to lower total cost of ownership and downtime.
