003F1232
Part Number: 003F1232
Product Information
Extended Description

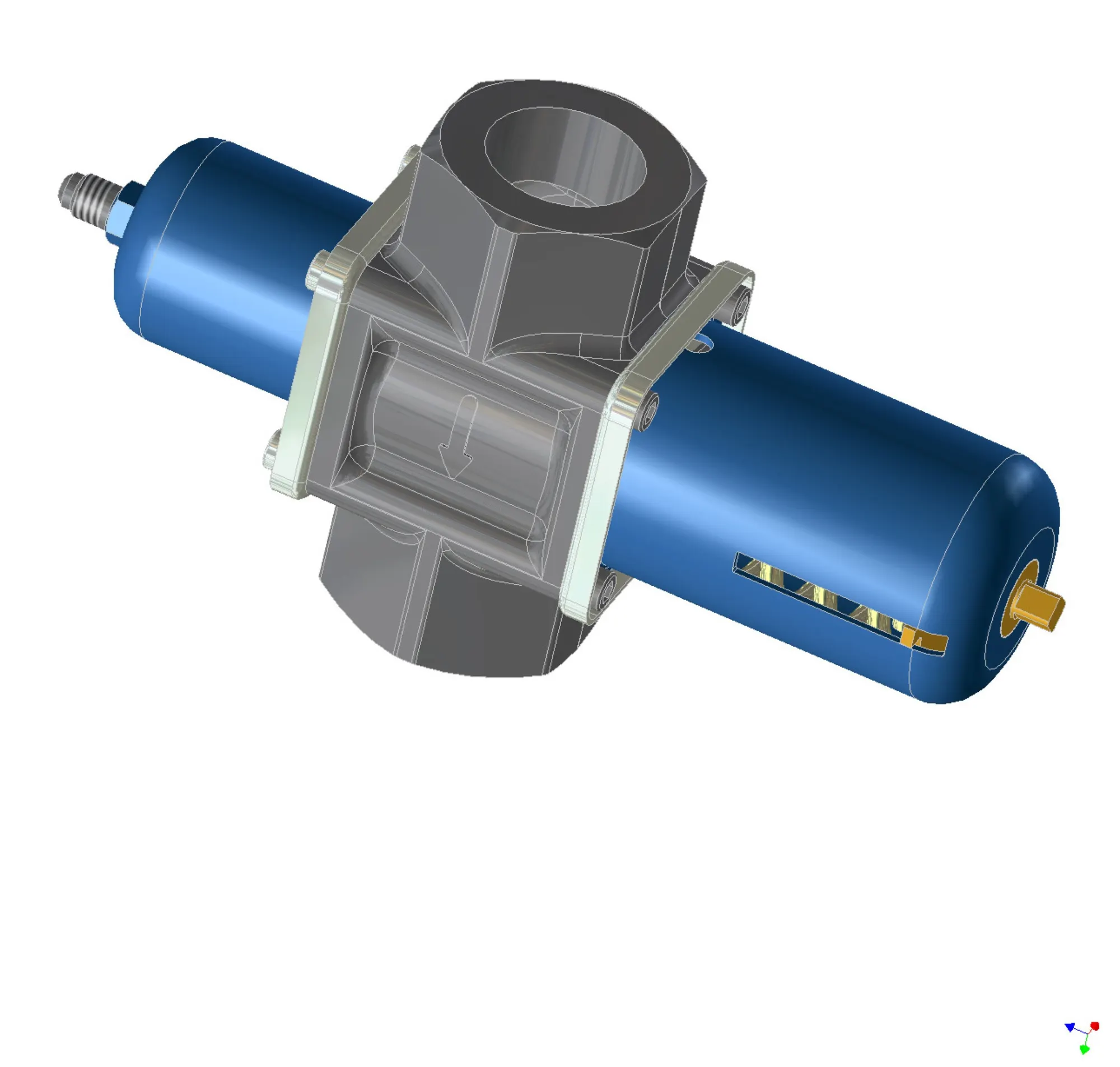

003F1232 Danfoss: Connection type: G, Connection size [in]: 1 1/4, Kv value [m=C2=B3/h]: 11.000, Opening configuration: Opens on rising cond. pressure, Control pressure range [bar]: 4.00 - 17.00, Connection size (refrigerant): 1/4 in - 6 mm, Connection type (refrigerant): SAE flare
Gross weight
3.288 Kilogram
Net weight
3.218 Kilogram
Volume
5.087 Liter
EAN
5702422026501
Approval
EAC,LLC CDC TYSK,PED,RoHS,RoHS China
Body material
Cast iron
China RoHS compliance
Yes
Connection Internal/External
Internal
Connection size (refrigerant)
1/4 in - 6 mm
Connection size [in]
1 1/4
Connection standard
ISO 228-1
Connection type
G
Connection type (refrigerant)
SAE flare
Contain batteries
No
Control pressure range [bar] [max]
17 bar
Control pressure range [bar] [min]
4 bar
Differential pressure [bar]
10 bar
Differential pressure [psi]
145 psi
EU RoHS compliance
Out of scope
Kv value [m=C2=B3/h]
11 m=C2=B3/h
Lubricants compatibility
Oilfree applications
Max. test pressure [bar] Pe
10 bar
Max. test pressure [psig]
145 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Max.test press.(refrig.)[bar]
26.5 bar
Max.test press.(refrig.)[psig]
384.3 psig
Media
Fresh water,Neutral brine
Medium temperature range [=C2=B0C] [max]
90 =C2=B0C
Medium temperature range [=C2=B0C] [min]
-25 =C2=B0C
Medium temperature range [=C2=B0F] [max]
194 =C2=B0F
Medium temperature range [=C2=B0F] [min]
-13 =C2=B0F
MWP (refrigerant) [bar]
24.1 bar
Oil free refrigerants
R513A
Opening configuration
Opens on rising cond. pressure
Packing format
Multi pack
Product accessories
Generic accessories,Water valves accessories
Product group
Water regulating valves
Product Name Description
Pressure operated water valve
Quantity per packing format
4 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1234yf,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R448A,R449A,R449B,R450A,R452A,R454A,R454C,R455A,R507A,R513A,R515B,R516A
SCIP dossier no.
f7d782f1-04df-4c40-bfe2-ea3a06dce79f
SCIP dossier product name
WVS/WVTS
Serviceable
Water valve spare parts
Type
WVFX 32
