003G1009
Part Number: 003G1009
Product Information
Extended Description
003G1009 Danfoss: AFA PB25 1-5 80cm2 silver
Gross weight
9.864 Kilogram
Net weight
9.068 Kilogram
Volume
25.974 Liter
EAN
5702421808238
Actuator diaphragm material
EPDM (Rolling, fibre enforced)
Actuator size [cm²]
80 cm²
Body material
Steel, mat. No 1.0338, zinc plated and yellow chromate
China RoHS compliance
Out of scope
Colour
Silver
Contain batteries
No
Description
AFA PB25 1-5 80cm2 silver
Diameter [mm] [Max]
125 mm
Diameter [mm] [Min]
15 mm
Differential pressure setting [bar] [Max]
5 bar
Differential pressure setting [bar] [Min]
1 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Press. relief controller
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Bypass
Operating pressure [bar] [Max]
25 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 25
Pressure controller
Pressure relief controller
Pressure nominal [bar]
25 bar
Pressure setting range [bar] [Max]
5 bar
Pressure setting range [bar] [Min]
1 bar
Product group
Actuators - Pressure Flow
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
d6136a2c-1f94-49c4-8ba7-76f280516979
SCIP dossier product name
AFD/A
Setting Type
Adjustable
Type
AFA
UK RoHS compliance
Out of scope
003G1391
Impulse tubes, 10 mm, G 1/4, 1500 mm, Cooper CW 024A, For product type: AFP(Q)/B, Universal
003G1392
Seal pot V1, 1.0 l, AF range
003G1401
Shut off valve 10 mm (Herose)
003G1403
Seal pot V3, 3.0 l, AF range
003G1468
Compression fitting fi 10x1 mm, 1 pc
065B2909
Throttle valve HD impulstubes
Save energy with efficient and safe steam distribution
AFA-VFG2(1)
AFA/VFG 2 (21)
AFA / VFG 2(1)
Danfoss EU 230530EN0858104.05
Actuators pressure flow and temperature
Danfoss UK 230612EN0856102.02

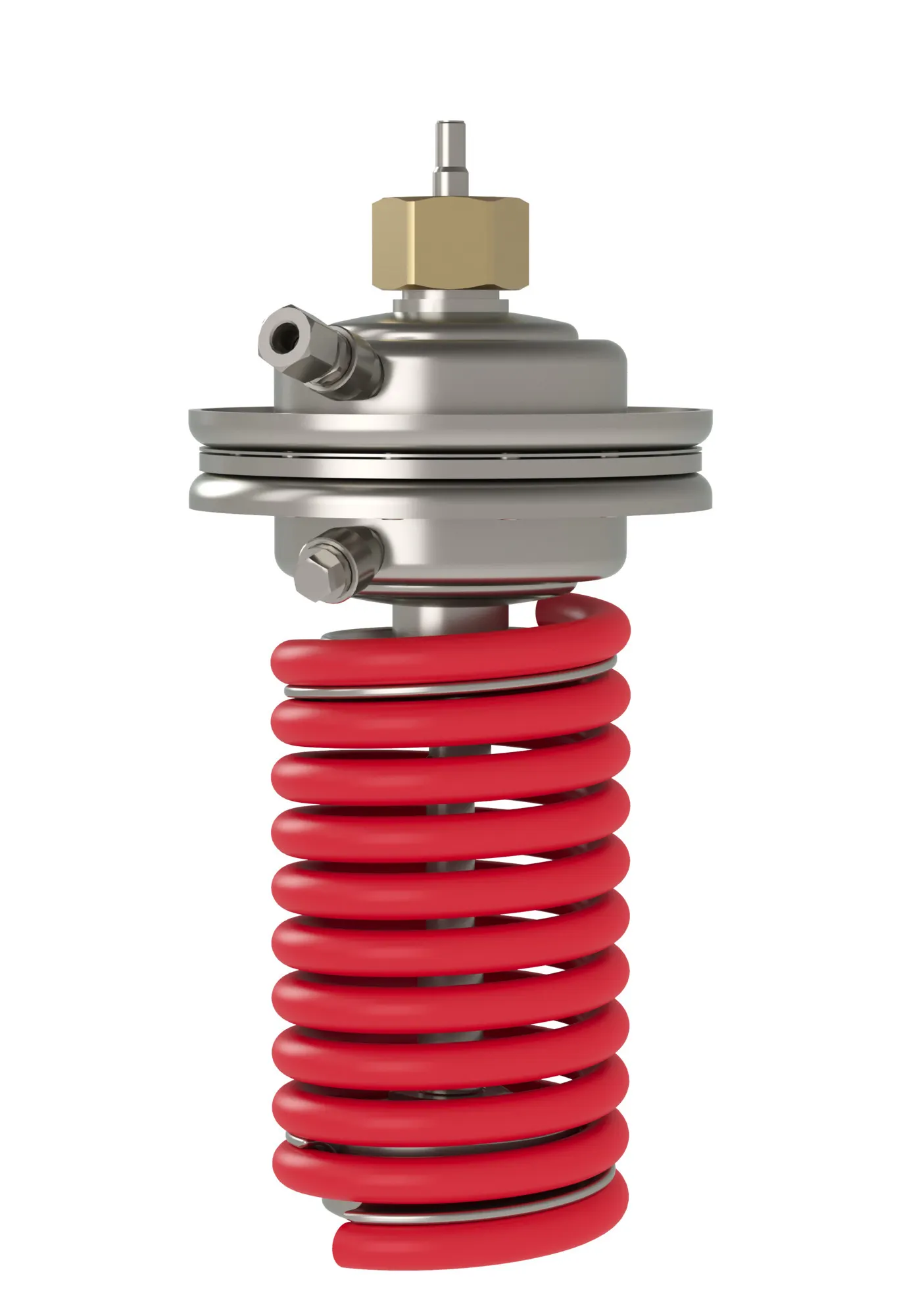

Render - AFA - 003G1007, 003G1009, 003G1008, 003G1010
Render - AFA - 003G1007, 003G1009, 003G1008, 003G1010
AFA_DN15-125_3D
AFA_DN15-125_STEP
AFA_DN15-125_2D
