003G1013
Part Number: 003G1013
Product Information
Extended Description

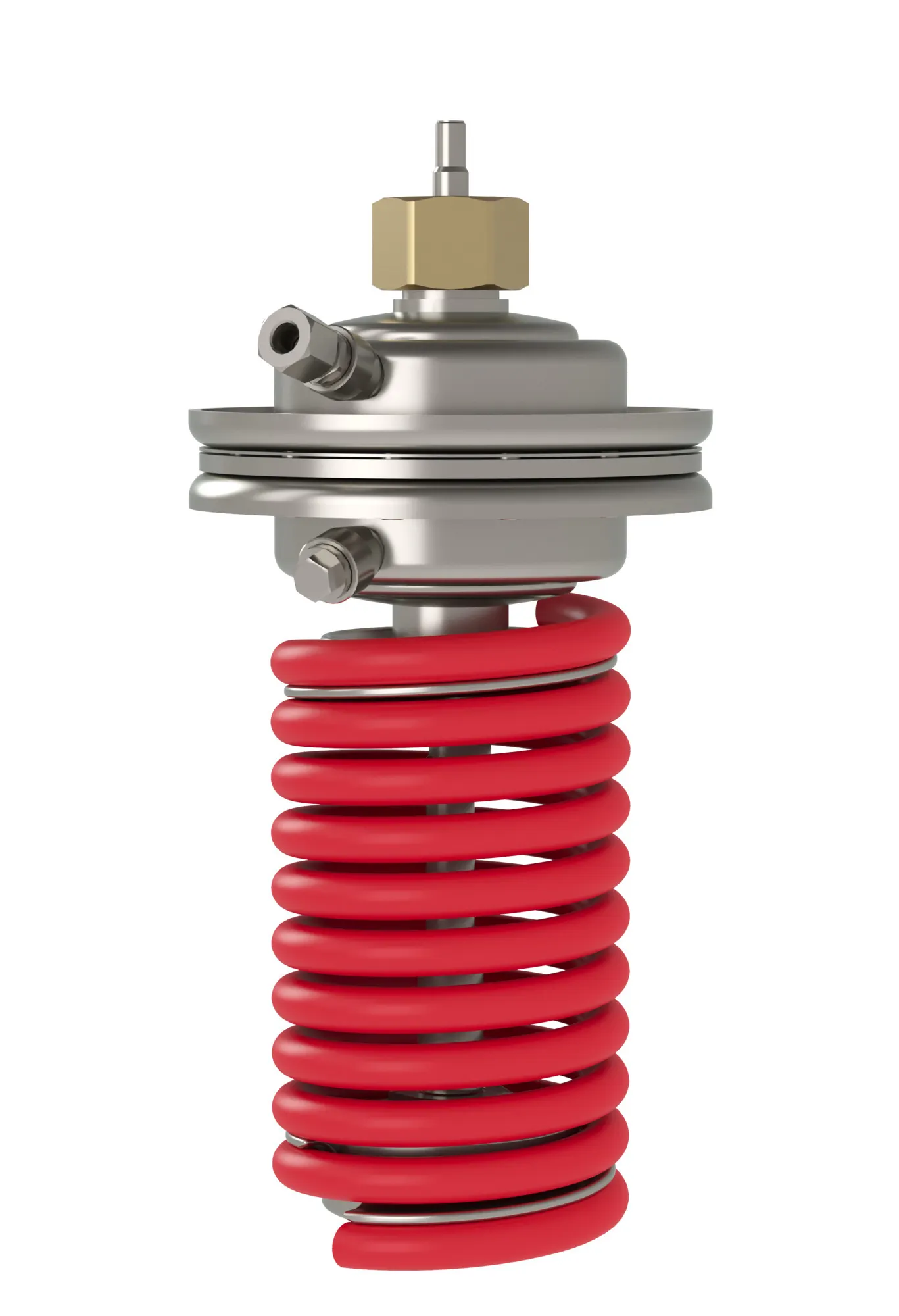

003G1013 Danfoss: AFA PN16 0,05-0,3 630cm2 yellow
Gross weight
23.392 Kilogram
Net weight
23.392 Kilogram
Volume
87.36 Liter
EAN
5702421808276
Actuator diaphragm material
EPDM (Rolling, fibre enforced)
Actuator size [cm²]
630 cm²
Body material
Steel, mat. No 1.0338, zinc plated and yellow chromate
China RoHS compliance
Out of scope
Colour
Yellow
Contain batteries
No
Description
AFA PN16 0,05-0,3 630cm2 yellow
Diameter [mm] [Max]
250 mm
Diameter [mm] [Min]
15 mm
Differential pressure setting [bar]
0.05 bar
Differential pressure setting [bar] [Min]
0.3 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Press. relief controller
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Bypass
Operating pressure [bar] [Max]
16 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure controller
Pressure relief controller
Pressure nominal [bar]
16 bar
Pressure setting range [bar] [Max]
0.4 bar
Pressure setting range [bar] [Min]
0.05 bar
Product group
Actuators - Pressure Flow
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
d6136a2c-1f94-49c4-8ba7-76f280516979
SCIP dossier product name
AFD/A
Setting Type
Adjustable
Type
AFA
UK RoHS compliance
Out of scope
003G1391
Impulse tubes, 10 mm, G 1/4, 1500 mm, Cooper CW 024A, For product type: AFP(Q)/B, Universal
003G1392
Seal pot V1, 1.0 l, AF range
003G1401
Shut off valve 10 mm (Herose)
003G1403
Seal pot V3, 3.0 l, AF range
003G1468
Compression fitting fi 10x1 mm, 1 pc
065B2909
Throttle valve HD impulstubes
