003G1015

Part Number: 003G1015
003G1015
Manufacturer
Danfoss
Part number
003G1015
Category

Product Information

Extended Description

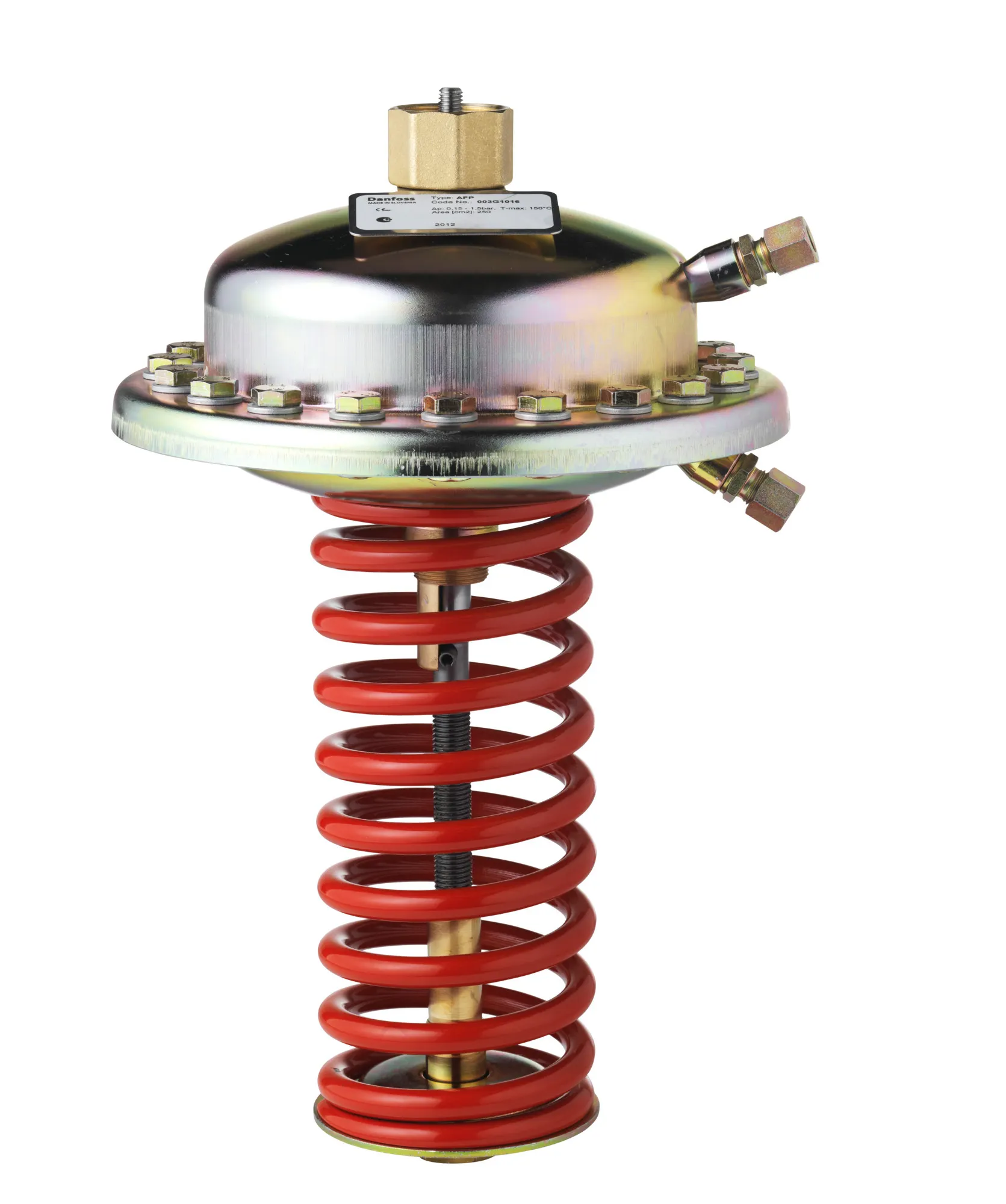

003G1015 Danfoss: AFP-9 PB25 0,5-3 80cm2 yellow
Gross weight
7.19 Kilogram
Net weight
6.53 Kilogram
Volume
26.424 Liter
EAN
5702421808290
Actuator size [cm²]
80 cm²
China RoHS compliance
Out of scope
Colour
Yellow
Contain batteries
No
Description
AFP-9 PB25 0,5-3 80cm2 yellow
Diameter [mm] [Max]
125 mm
Diameter [mm] [Min]
15 mm
Differential pressure setting [bar] [Max]
3 bar
Differential pressure setting [bar] [Min]
0.5 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Diff. press. controller
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Mounting version
Free
Operating pressure [bar] [Max]
25 bar
Pressure class
PN 25
Pressure controller
Differential pressure controller
Pressure nominal [bar]
25 bar
Product group
Actuators - Pressure Flow
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
1fc27f33-7222-414d-8ff1-81abdd587564
SCIP dossier product name
AFP/A/B
Setting Type
Adjustable
Stroke [mm]
7 mm
Type
AFP-9
UK RoHS compliance
Out of scope
003G1391
Impulse tubes, 10 mm, G 1/4, 1500 mm, Cooper CW 024A, For product type: AFP(Q)/B, Universal
003G1392
Seal pot V1, 1.0 l, AF range
003G1401
Shut off valve 10 mm (Herose)
003G1403
Seal pot V3, 3.0 l, AF range
003G1440
Combination pieces KF2 2 x G 1 1/4"
003G1441
Combination pieces KF3, 2 x G 1 1/4"
003G1468
Compression fitting fi 10x1 mm, 1 pc
065B2909
Throttle valve HD impulstubes
