003G1021
Part Number: 003G1021
Product Information
Extended Description

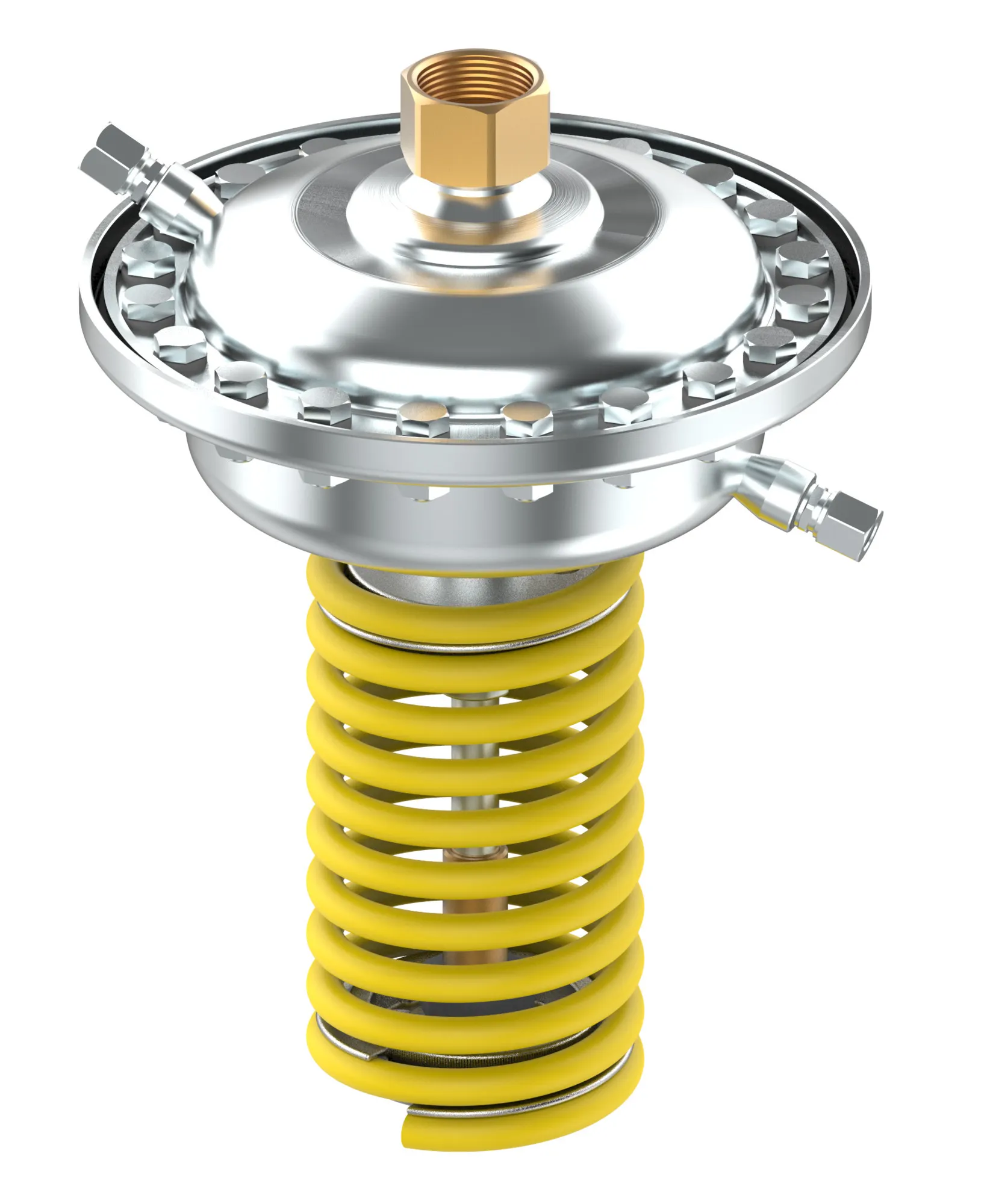

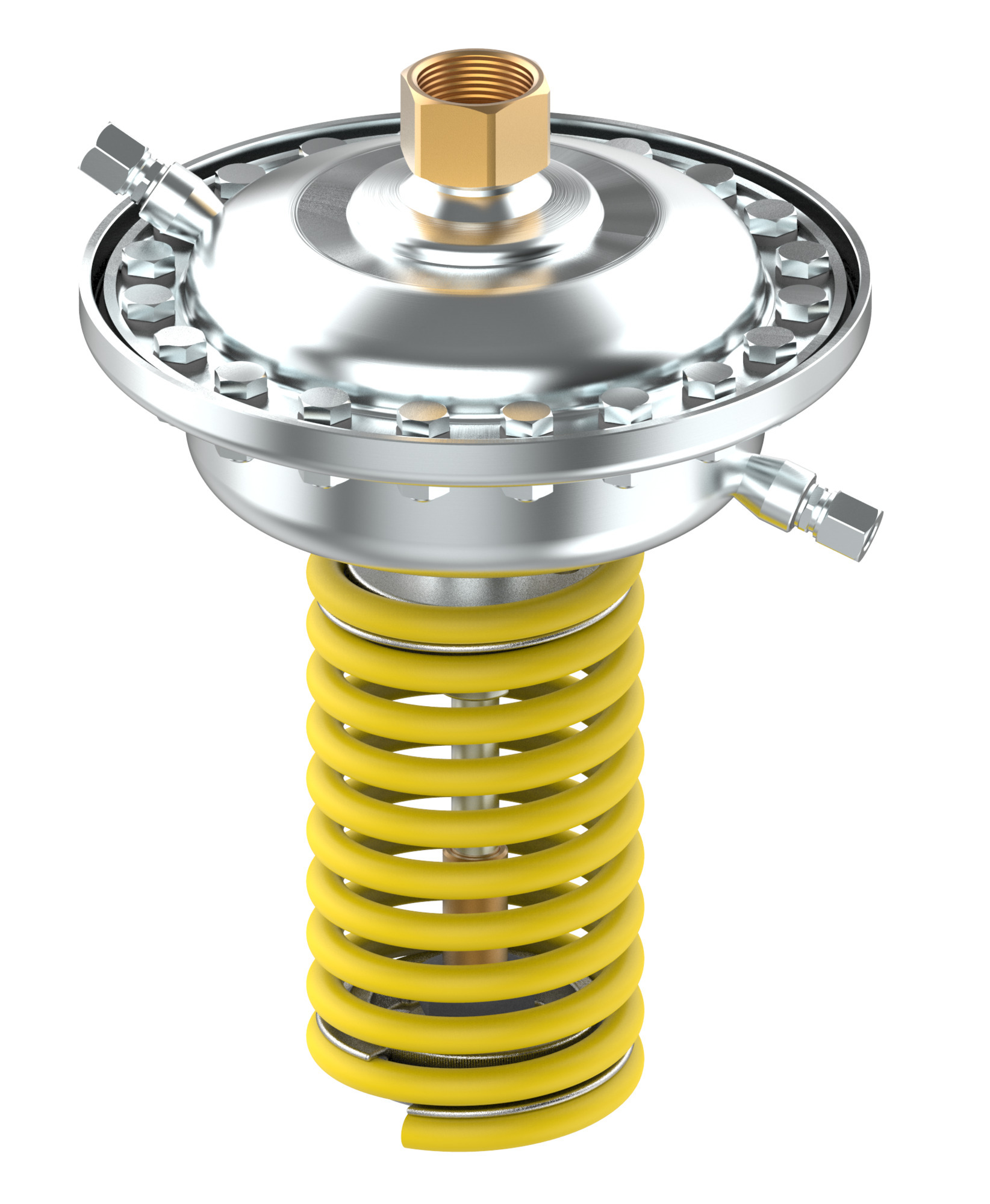

003G1021 Danfoss: AFPA PB25 0,15-1,2 250cm2 silver
Gross weight
15.68 Kilogram
Net weight
15.68 Kilogram
Volume
49.141 Liter
EAN
5702421808351
Actuator size [cm²]
250 cm²
China RoHS compliance
Out of scope
Colour
Silver
Contain batteries
No
Description
AFPA PB25 0,15-1,2 250cm2 silver
Diameter [mm] [Max]
250 mm
Diameter [mm] [Min]
15 mm
Differential pressure setting [bar] [Max]
1.2 bar
Differential pressure setting [bar] [Min]
0.15 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Diff. press. relief controller
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Mounting version
Bypass
Operating pressure [bar] [Max]
25 bar
Pressure class
PN 25
Pressure controller
Pressure relief controller
Pressure nominal [bar]
25 bar
Product group
Actuators - Pressure Flow
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
1fc27f33-7222-414d-8ff1-81abdd587564
SCIP dossier product name
AFP/A/B
Setting Type
Adjustable
Stroke [mm]
7 mm
Type
AFPA
UK RoHS compliance
Out of scope
003G1391
Impulse tubes, 10 mm, G 1/4, 1500 mm, Cooper CW 024A, For product type: AFP(Q)/B, Universal
003G1392
Seal pot V1, 1.0 l, AF range
003G1401
Shut off valve 10 mm (Herose)
003G1403
Seal pot V3, 3.0 l, AF range
003G1468
Compression fitting fi 10x1 mm, 1 pc
065B2909
Throttle valve HD impulstubes
