003G1041
Part Number: 003G1041
Product Information
Extended Description

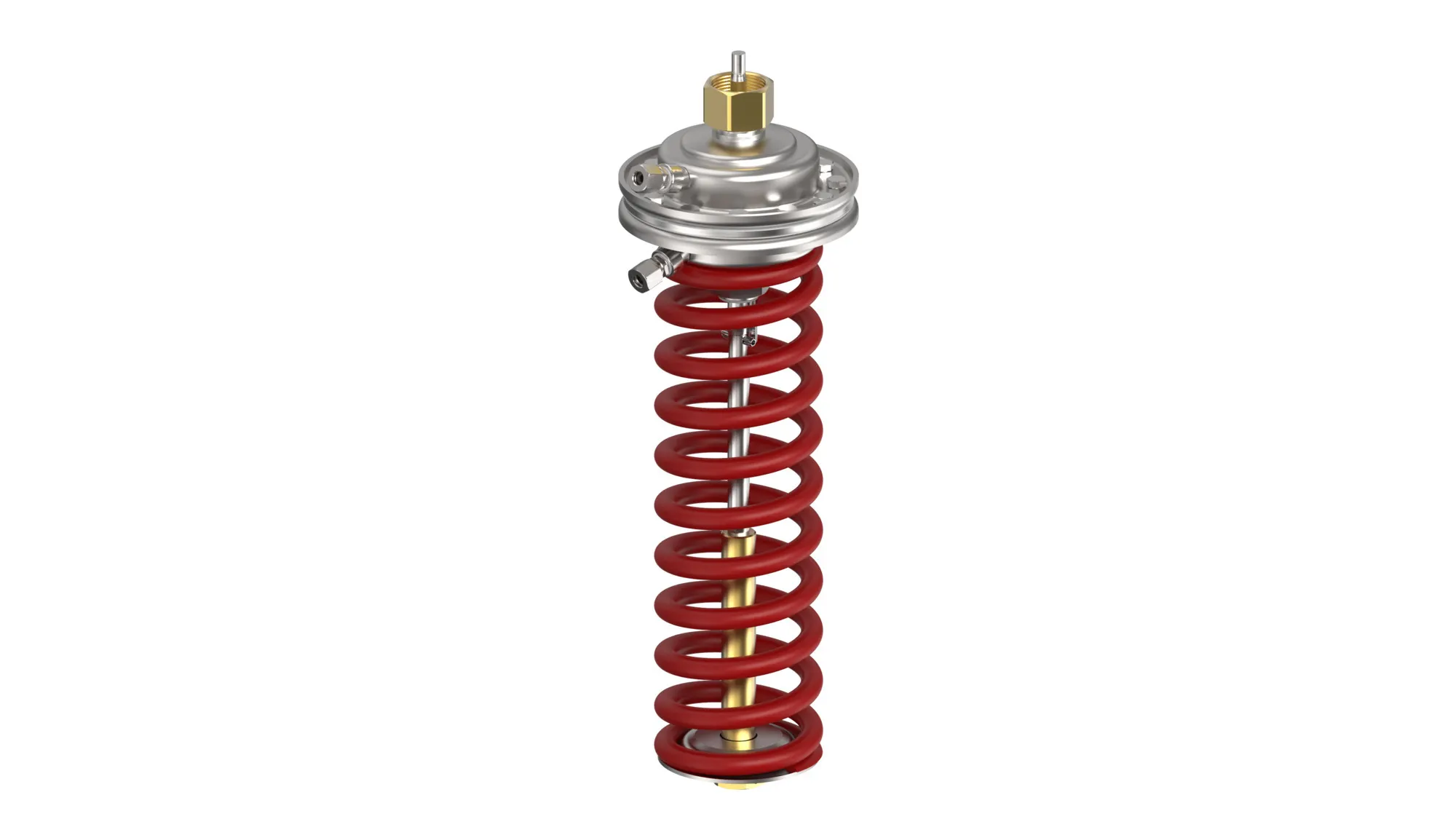

003G1041 Danfoss: AFD OIL PB25 3-12 32cm2 red
Gross weight
9.045 Kilogram
Net weight
9.045 Kilogram
Volume
26.772 Liter
EAN
5702421808559
Actuator size [cm²]
32 cm²
Body material
Steel, mat. No 1.0338, zinc plated
China RoHS compliance
Out of scope
Colour
Red
Contain batteries
No
Description
AFD OIL PB25 3-12 32cm2 red
Differential pressure setting [bar] [Max]
12 bar
Differential pressure setting [bar] [Min]
3 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Press. reduction controller
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Mounting version
Flow
Operating pressure [bar] [Max]
25 bar
Permissible media
Termo oil
Pressure class
PN 25
Pressure controller
Pressure reduction controller
Pressure nominal [bar]
25 bar
Pressure setting range [bar] [Max]
12 bar
Pressure setting range [bar] [Min]
3 bar
Product group
Actuators - Pressure Flow
Setting Type
Adjustable
Type
AFD Oil
UK RoHS compliance
Out of scope
