003G1044
Part Number: 003G1044
Product Information
Extended Description

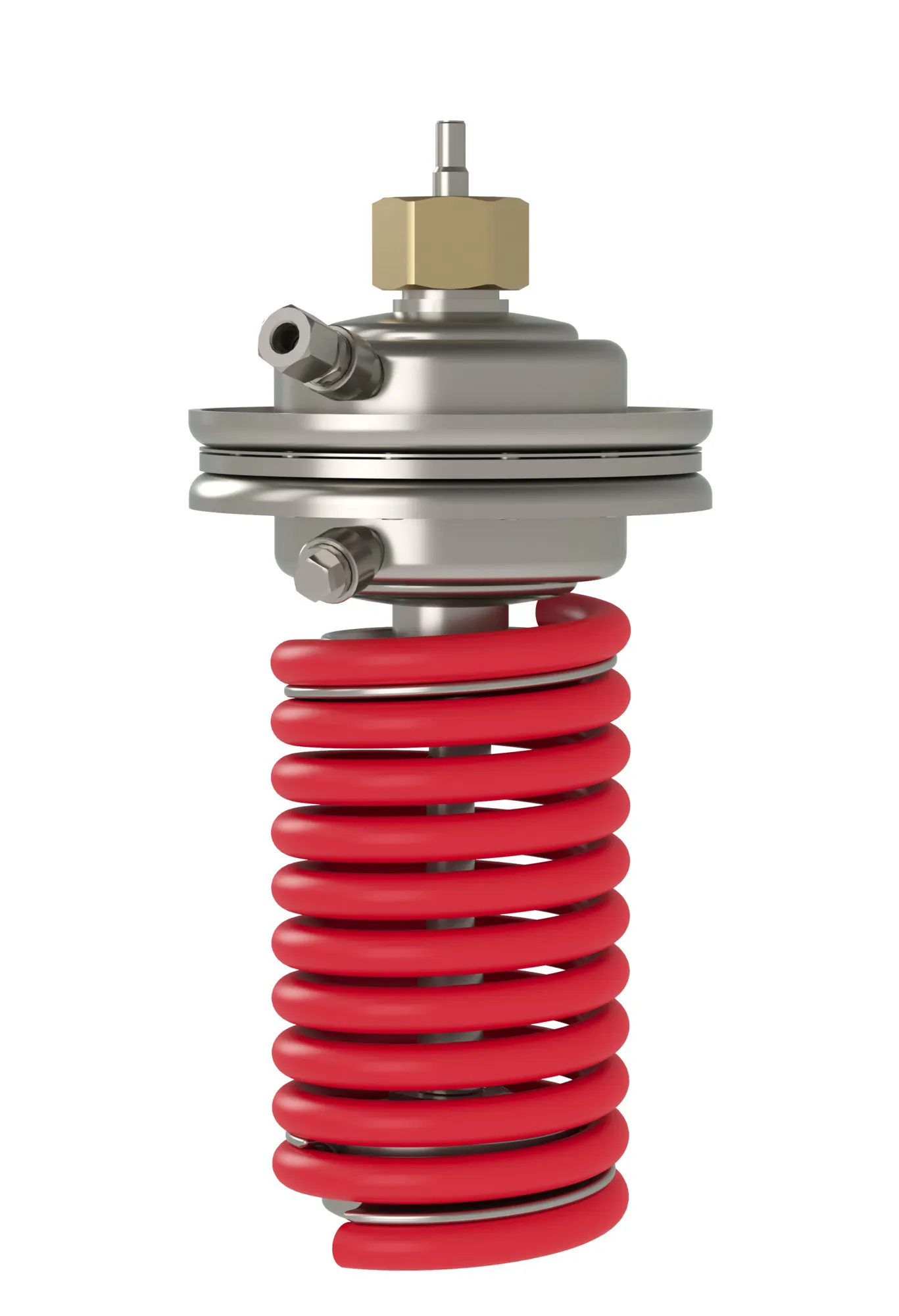

003G1044 Danfoss: AFA OIL PB25 10-16 32cm2 black
Gross weight
12.288 Kilogram
Net weight
12.288 Kilogram
Volume
26.485 Liter
EAN
5702421808580
Actuator size [cm²]
32 cm²
Body material
Steel, mat. No 1.0338, zinc plated and yellow chromate
China RoHS compliance
Out of scope
Colour
Black
Contain batteries
No
Description
AFA OIL PB25 10-16 32cm2 black
Differential pressure setting [bar] [Max]
16 bar
Differential pressure setting [bar] [Min]
10 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Press. relief controller
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Mounting version
Bypass
Operating pressure [bar] [Max]
25 bar
Permissible media
Termo oil
Pressure class
PN 25
Pressure controller
Pressure relief controller
Pressure nominal [bar]
25 bar
Pressure setting range [bar] [Max]
16 bar
Pressure setting range [bar] [Min]
10 bar
Product group
Actuators - Pressure Flow
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
d6136a2c-1f94-49c4-8ba7-76f280516979
SCIP dossier product name
AFD/A
Setting Type
Adjustable
Type
AFA Oil
UK RoHS compliance
Out of scope
