003G1085

Part Number: 003G1085
003G1085
Manufacturer
Danfoss
Part number
003G1085
Category

Product Information

Extended Description

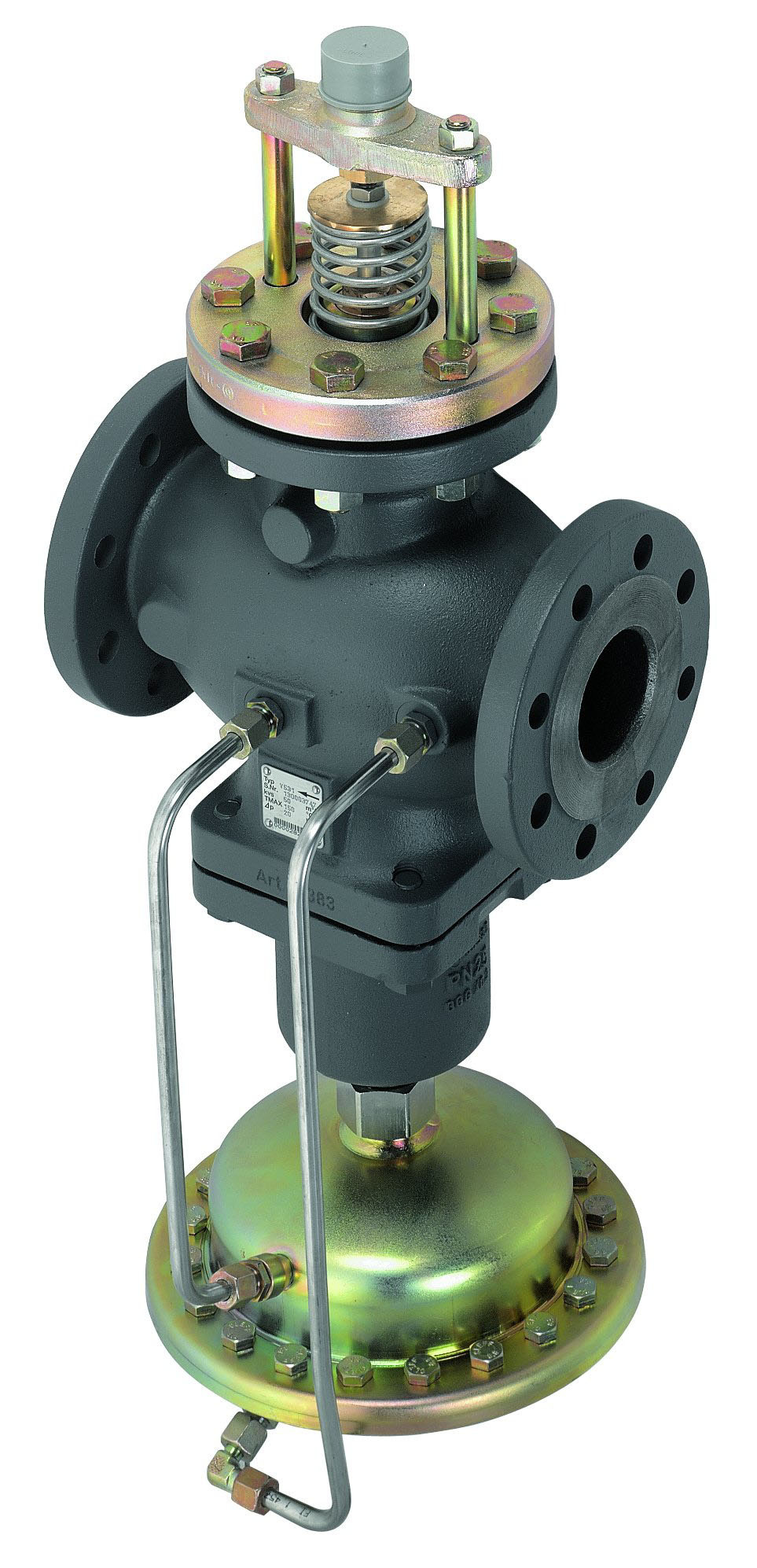

003G1085 Danfoss: AFQM 6 PN25 50/32 /0,2 flange flow/ret
Gross weight
31 Kilogram
Net weight
31 Kilogram
Volume
201.6 Liter
EAN
5702421808993
Actuator diaphragm material
EPDM (Rolling, fibre enforced)
Actuator size [cm²]
250 cm²
Application
District Heating
Cavitation factor
0.5
Cavitation factor 100%
0.34
Cavitation factor 25%
0.58
Cavitation factor 50%
0.52
Cavitation factor 75%
0.5
China RoHS compliance
Out of scope
Connection size
DN 50
Connection types
Flange
Contain batteries
No
Description
AFQM 6 PN25 50/32 /0,2 flange flow/ret
Diameter [mm]
50 mm
Differential pressure range [bar] [Max]
20 bar
EU RoHS compliance
Out of scope
Flow control
Yes
Flow limitation
Yes
Flow rate [mÂł/h]
16 mÂł/h
Flow rate [mÂł/h] [Max]
16 mÂł/h
Flow rate [mÂł/h] [Min]
3.2 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Function
Flow controller with int. control valve
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
32 mÂł/h
Leakage rate [% Kvs]
0.01
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 25
Pressure controller
No
Pressure nominal [bar]
25 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f8cf0cbc-88d9-460e-8f70-2be54794ee8e
SCIP dossier product name
AFQM DN40-50
Sealing CV material
Metal
Sealing DP material
EPDM
Setting Type
None
Stem position
Normally open
Stroke [mm]
12 mm
Type
AFQM 6
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone CV material
Stainless steel mat. No. 1.4404
Valve cone DP material
Stainless steel mat. No. 1.4404
Valve seat material
Stainless steel M. No. 1.4021
Valve size
DN 50
003G1024
AFQ, PN 25, 0.20 bar, 250 cm²
003G1026
AFPB-F, PN 25, 0.20 bar, 250 cm²
003G1425
Connection kit AMV(E) 41x,61x,63x/AFQM6
