003G1505
Part Number: 003G1505
Product Information
Extended Description

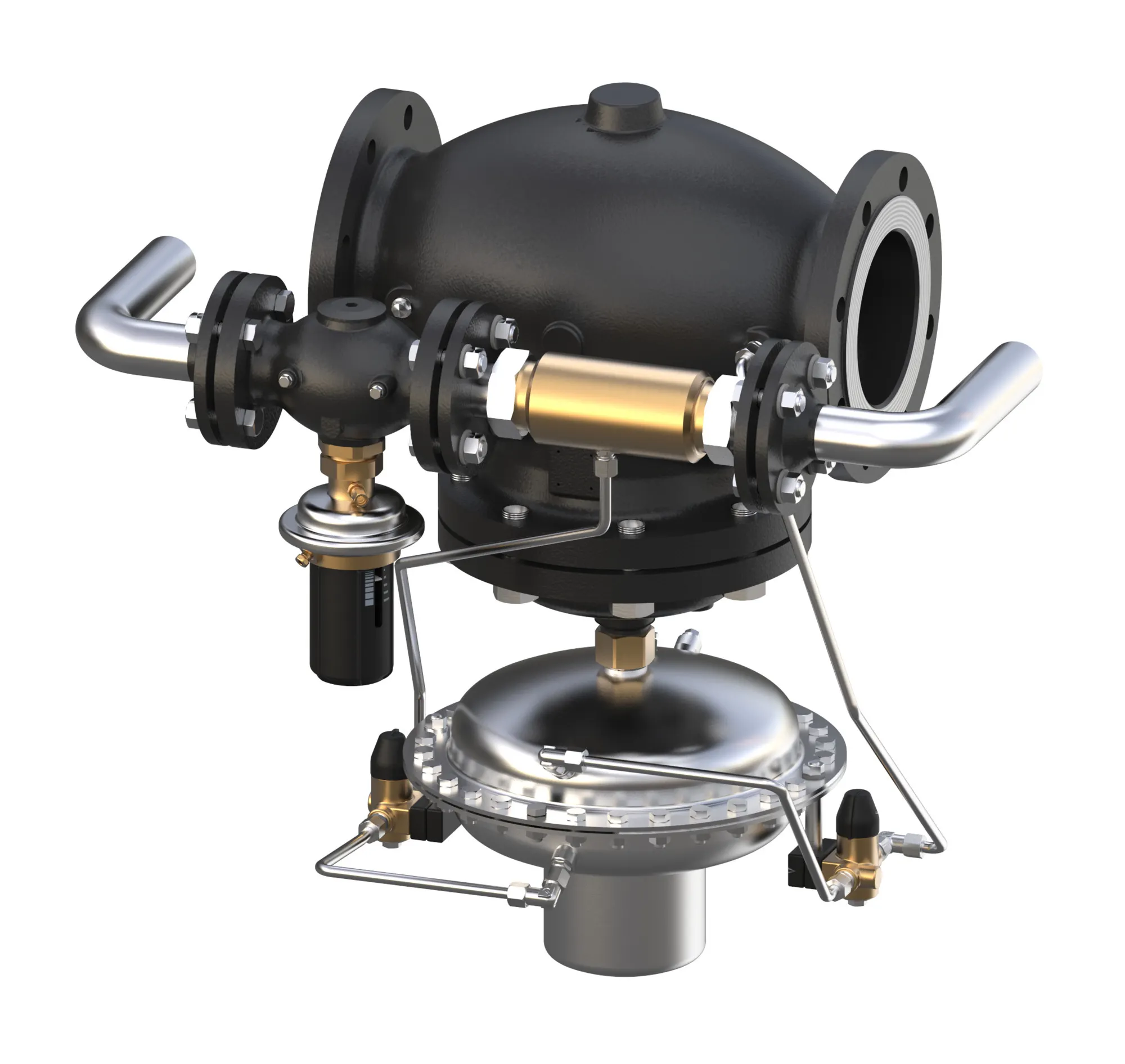

003G1505 Danfoss: Assem.kit PCV-VFG21 PN16 150/320 flange
Gross weight
177.5 Kilogram
Net weight
177.5 Kilogram
Volume
499.2 Liter
EAN
5702421813683
Actuator size [cm²]
630 cm²
Cavitation factor
0.3
Cavitation factor 100%
0.22
Cavitation factor 25%
0.47
Cavitation factor 50%
0.38
Cavitation factor 75%
0.3
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Control ratio
400:1
Description
Assem.kit PCV-VFG21 PN16 150/320 flange
Diameter [mm]
150 mm
Differential pressure range [bar] [Max]
15 bar
Differential pressure range [bar] [Min]
0.5 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
PCV Assembly kit
Kvs values [mÂł/h]
320 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Pilot - controlled valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing material
EPDM
Stem position
Normally closed
Type
PCV-VFG 21
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone material
Stainless steel, mat. No. 1.4021
Valve seat material
Stainless steel, mat. No. 1.4313
Valve size
DN 150
