003G1563
Part Number: 003G1563
Product Information
Extended Description

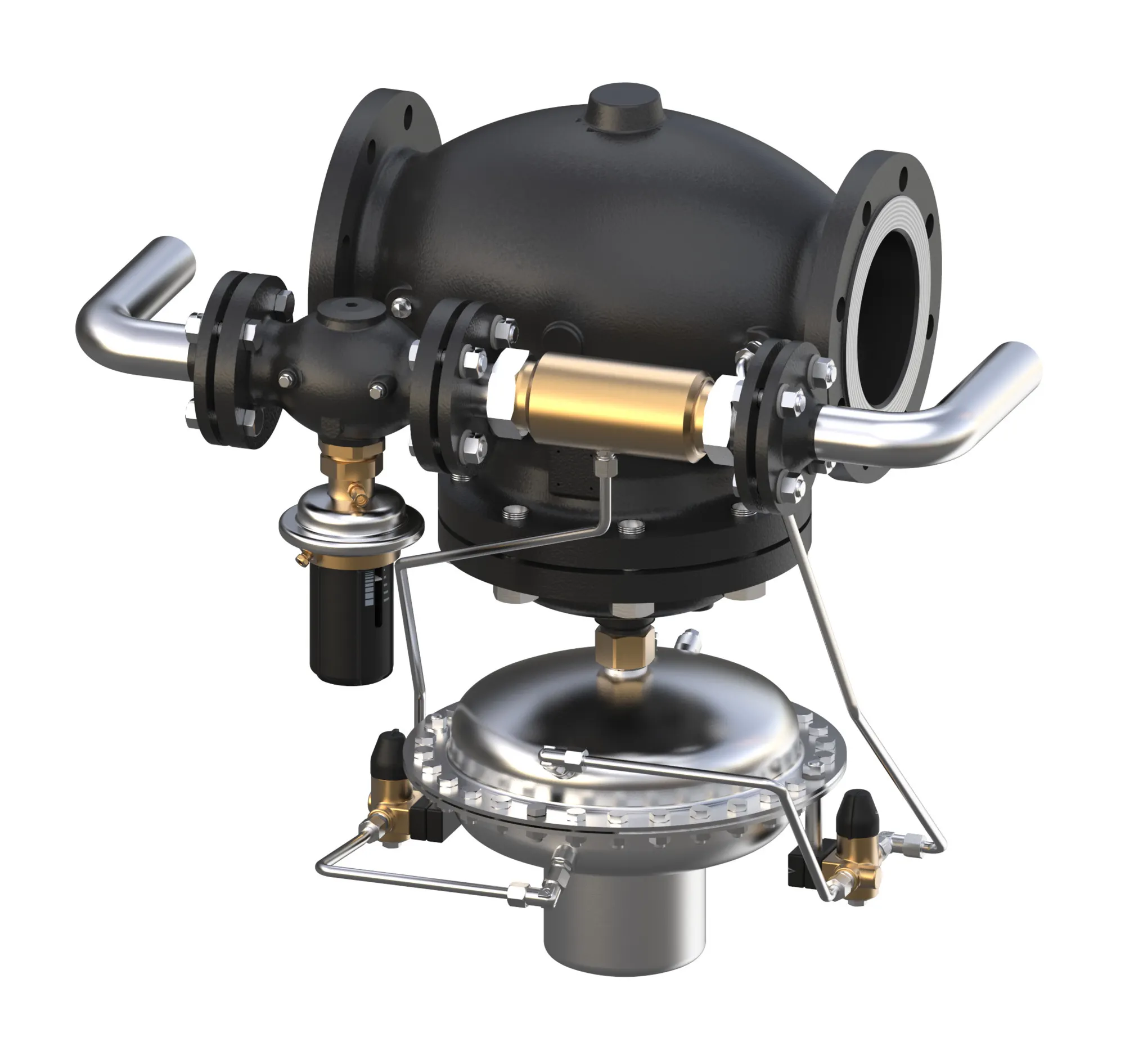

003G1563 Danfoss: Assem.kit PCV-VFGS2 PN25 100/125 flange
Gross weight
85 Kilogram
Net weight
85 Kilogram
Volume
506.1 Liter
EAN
5702421813874
Actuator size [cm²]
250 cm²
Cavitation factor
0.4
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Control ratio
300:1
Description
Assem.kit PCV-VFGS2 PN25 100/125 flange
Diameter [mm]
100 mm
Differential pressure range [bar] [Max]
15 bar
Differential pressure range [bar] [Min]
0.5 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
PCV Assembly kit
Kvs values [mÂł/h]
125 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
200 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Circulation water
Mounting version
Free
Number of ports
2
Permissible media
Steam
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Product group
Pilot - controlled valves
Sealing material
Metal
Stem position
Normally closed
Type
PCV-VFGS 2
UK RoHS compliance
Out of scope
Valve body material
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone material
Stainless steel M. No. 1.4021
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 100
