003G1566

Part Number: 003G1566
003G1566
Manufacturer
Danfoss
Part number
003G1566
Category

Product Information

Extended Description

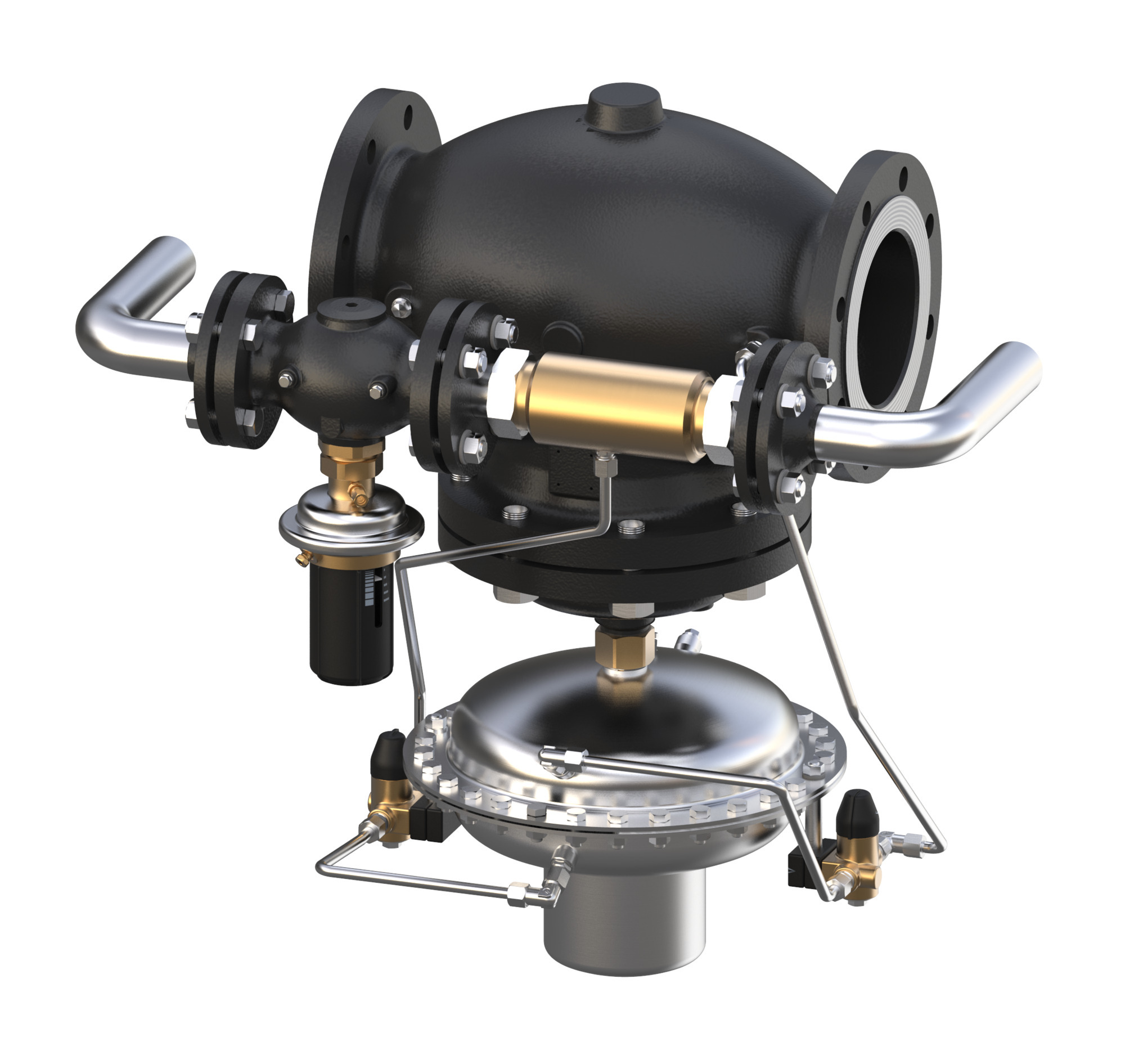

003G1566 Danfoss: Assem.kit PCV-VFGS2 PN40 200/450 flange
Gross weight
434 Kilogram
Net weight
203 Kilogram
Volume
1375.35 Liter
EAN
5702421813904
Actuator size [cm²]
630 cm²
Cavitation factor
0.2
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Control ratio
550:1
Description
Assem.kit PCV-VFGS2 PN40 200/450 flange
Diameter [mm]
200 mm
Differential pressure range [bar] [Max]
10 bar
Differential pressure range [bar] [Min]
0.5 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
PCV Assembly kit
Kvs values [mÂł/h]
450 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
200 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Circulation water
Mounting version
Free
Number of ports
2
Permissible media
Steam
Pressure class
PN 40
Pressure nominal [bar]
40 bar
Product group
Pilot - controlled valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing material
Metal
Stem position
Normally closed
Type
PCV-VFGS 2
UK RoHS compliance
Out of scope
Valve body material
Cast steel EN-GP-240-GH (GS-C 25)
Valve cone material
Stainless steel, mat. No. 1.4021
Valve seat material
Stainless steel, mat. No. 1.4313
Valve size
DN 200
