003G1574
Part Number: 003G1574
Product Information
Extended Description

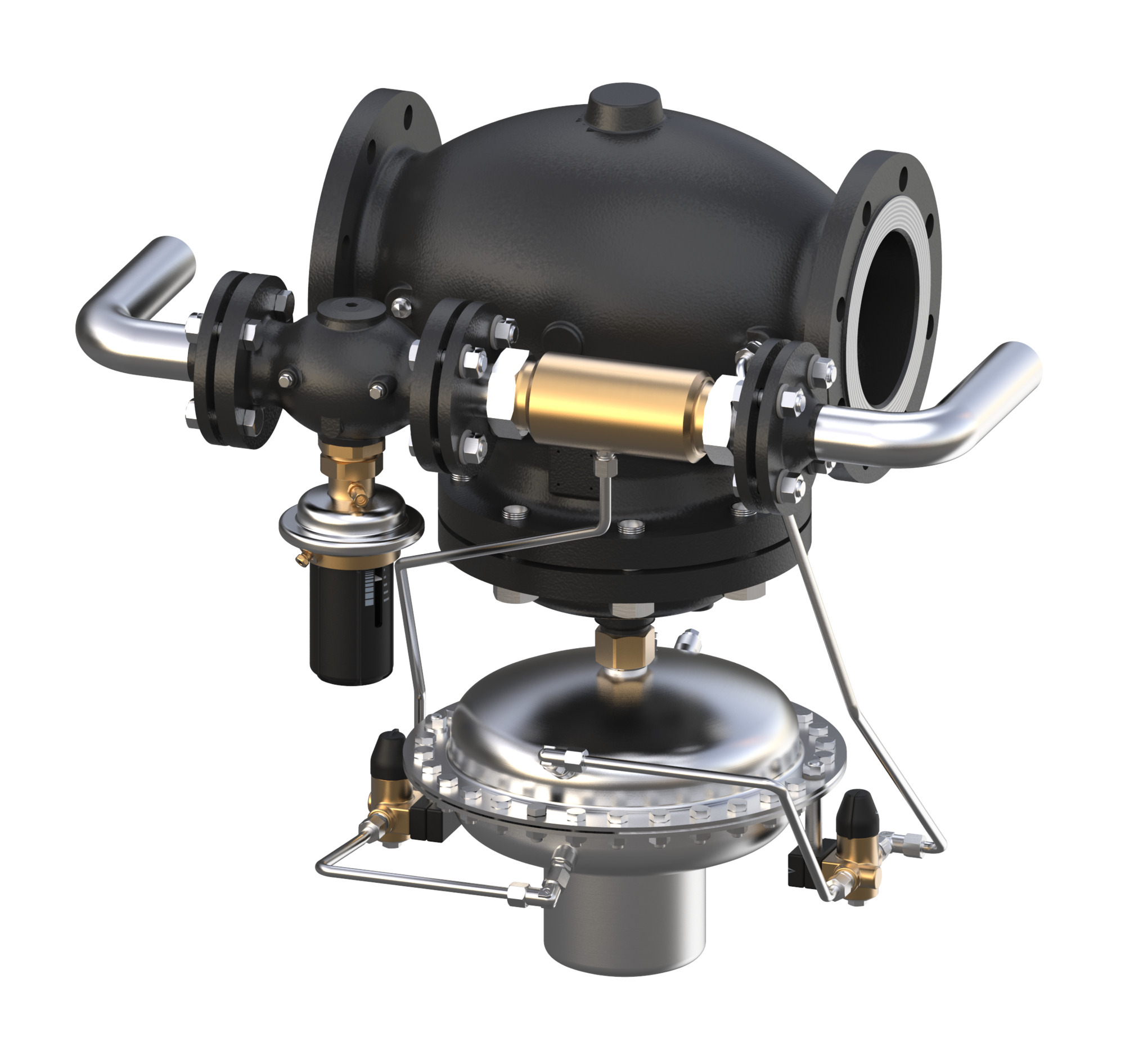

003G1574 Danfoss: Assem.kit PCV-VFG21 PN16 125/160 flange
Gross weight
112.8 Kilogram
Net weight
112.8 Kilogram
Volume
623.837 Liter
EAN
5710104011554
Cavitation factor
0.35
Cavitation factor 100%
0.28
Cavitation factor 25%
0.5
Cavitation factor 50%
0.42
Cavitation factor 75%
0.35
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Control ratio
400:1
Description
Assem.kit PCV-VFG21 PN16 125/160 flange
Diameter [mm]
125 mm
Differential pressure range [bar] [Max]
15 bar
Differential pressure range [bar] [Min]
0.5 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
PCV Assembly kit
Kvs values [mÂł/h]
160 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Pilot - controlled valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing material
EPDM
Stem position
Normally closed
Type
PCV-VFG 21
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone material
Stainless steel M. No. 1.4404
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 125
003G1391
Impulse tubes, 10 mm, G 1/4, 1500 mm, Cooper CW 024A, For product type: AFP(Q)/B, Universal
003G1392
Seal pot V1, 1.0 l, AF range
003G1468
Compression fitting fi 10x1 mm, 1 pc
003G1599
Compression fitting fi6 for internal thread with locking screw
003H6319
AVP, PN 25, DN 25, 8.00 mÂł/h, 0.20 bar - 1.00 bar, External Thread, G 1 1/4 A
003H6329
AVP, PN 25, DN 25, 8.00 mÂł/h, 0.30 bar - 2.00 bar, External Thread, G 1 1/4 A
003H6646
AVD, PN 25, DN 25, 8.00 mÂł/h, 1.00 bar - 5.00 bar, External Thread, G 1 1/4 A, Mounting version: Flow
003H6652
AVD, PN 25, DN 25, 8.00 mÂł/h, 3.00 bar - 12.00 bar, External Thread, G 1 1/4 A, Mounting version: Flow
003H6910
Weld-on tailpieces, PN 25, DN 25, G 1 1/4
