003G1858
Part Number: 003G1858
Product Information
Extended Description

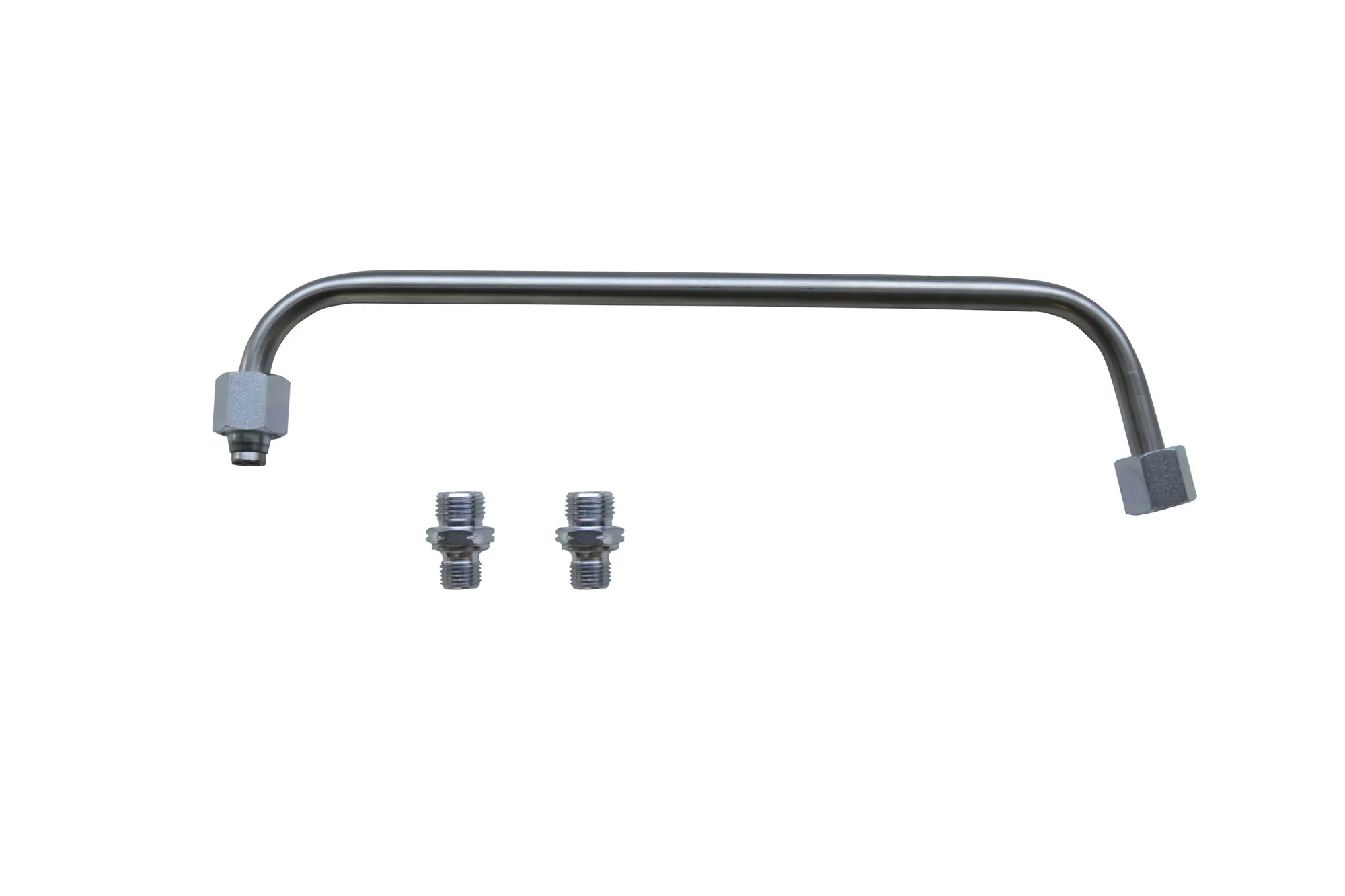

003G1858 Danfoss: Impulse tubes for AFPB(-F) 2 160cm2 PN40 DN125
Gross weight
0.343 Kilogram
Net weight
0.135 Kilogram
Volume
9.36 Liter
EAN
5715162414361
Connection size
G 1/4
Contain batteries
No
Description
Impulse tubes for AFPB(-F) 2 160cm2 PN40 DN125
Diameter [mm]
10 mm
EU RoHS compliance
Yes with exemptions
For product type
AFPB(-F) 2
For valve size
DN 125
Material
Stainless steel
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
40 bar
Product group
Accessories - SAC
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
a4dd7d83-0861-4c57-a440-a43a1c26e506
SCIP dossier product name
AF IMPULSE TUBES (3)
Suitable for valve of diameter [mm] [Max]
125 mm
Suitable for valve of diameter [mm] [Min]
125 mm
Suitable for valve of pressure [bar] [Max]
40 bar
Suitable for valve of pressure [bar] [Min]
16 bar
Type
Impulse tubes
