003G5508

Part Number: 003G5508
003G5508
Manufacturer
Danfoss
Part number
003G5508
Category

Product Information

Extended Description

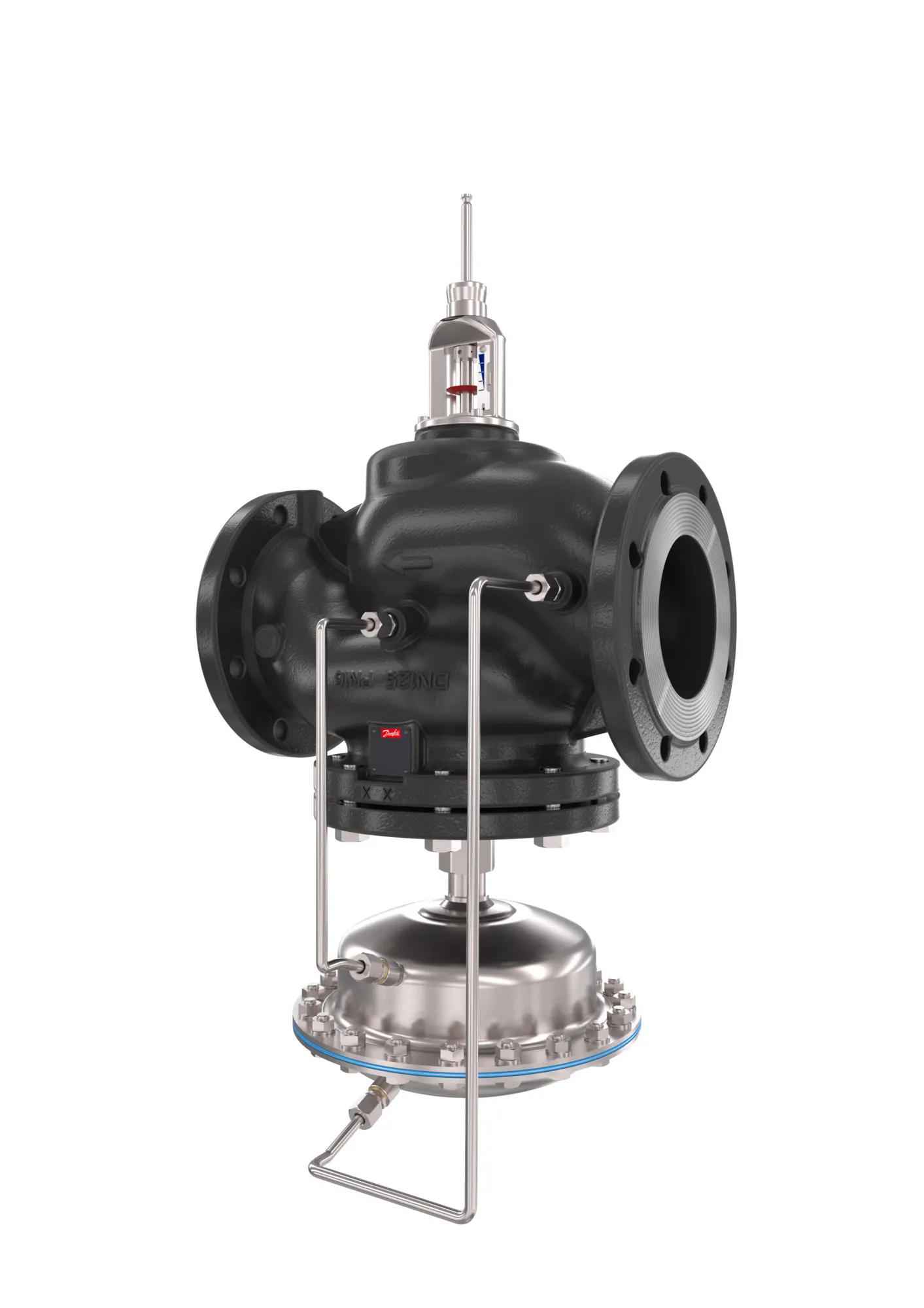

003G5508 Danfoss: Pressure independent control valve
Gross weight
168 Kilogram
Net weight
142.5 Kilogram
Volume
499.2 Liter
EAN
5714279065077
Actuator diaphragm material
EPDM (Rolling, fibre enforced)
Actuator size [cm²]
320 cm²
Application
District heating and cooling
Cavitation factor
0.4
Cavitation factor 100%
0.34
Cavitation factor 25%
0.64
Cavitation factor 50%
0.64
Cavitation factor 75%
0.41
China RoHS compliance
Out of scope
Connection size
DN 150
Connection types
Flange
Contain batteries
No
Description
Pressure independent control valve
Diameter [mm]
150 mm
Differential pressure range [bar] [Max]
12 bar
EU RoHS compliance
Out of scope
Flow control
Yes
Flow limitation
Yes
Flow rate [m³/h]
160 m³/h
Flow rate [m³/h] [Max]
160 m³/h
Flow rate [m³/h] [Min]
32 m³/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Function
Flow controller with int. control valve
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Kvs values [m³/h]
380 m³/h
Leakage rate [% Kvs]
0.01
Leakage through port max. [% Kvs]
0.01
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Operating pressure [bar] [Max]
16 bar
Permissible media
District heating/cooling circulation water
PN alternative VSP
25
Pressure class
PN 16
Pressure controller
No
Pressure nominal [bar]
16 bar
Pressure relieve system control valve insert
Chamber
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing CV material
EPDM
Sealing DP material
EPDM
Setting Type
Fixed
Stem position
Normally open
Stroke [mm]
23 mm
Type
AFQM 2
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone CV material
Stainless steel mat. No. 1.4021
Valve cone DP material
Stainless steel mat. No. 1.4021
Valve seat DP material
Stainless steel, mat. No. 1.4021
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 150
003G5596
AFQ 2, PN 16, 0.20 bar, 320 cm²
003G5597
AFQ 2, PN 16, 0.50 bar, 320 cm²
003G5600
AFQ 2, PN 16, 0.20 bar, 160 cm²
003G5601
AFQ 2, PN 16, 0.50 bar, 160 cm²
