003G5519
Part Number: 003G5519
Product Information
Extended Description

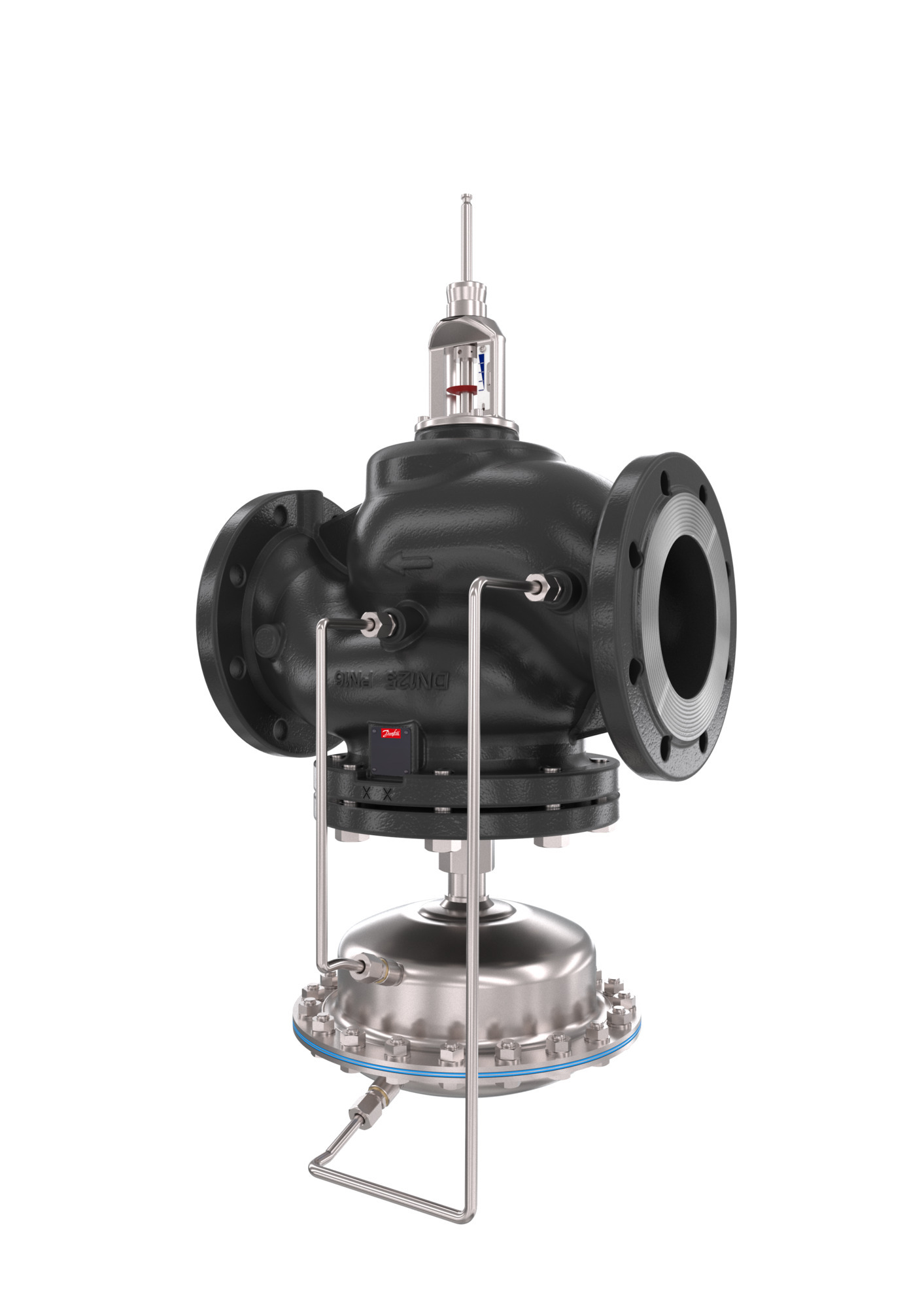

003G5519 Danfoss: Pressure independent control valve
Gross weight
77.5 Kilogram
Net weight
73 Kilogram
Volume
191.52 Liter
EAN
5710104522623
Actuator diaphragm material
EPDM (Rolling, fibre enforced)
Actuator size [cm²]
160 cm²
Application
District heating and cooling
Cavitation factor
0.4
Cavitation factor 100%
0.35
Cavitation factor 25%
0.45
Cavitation factor 50%
0.45
Cavitation factor 75%
0.4
China RoHS compliance
Out of scope
Connection size
DN 100
Connection types
Flange
Contain batteries
No
Description
Pressure independent control valve
Diameter [mm]
100 mm
Differential pressure range [bar] [Max]
15 bar
EU RoHS compliance
Out of scope
Flow control
Yes
Flow limitation
Yes
Flow rate [mÂł/h]
95 mÂł/h
Flow rate [mÂł/h] [Max]
95 mÂł/h
Flow rate [mÂł/h] [Min]
19 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.5 bar
Function
Flow controller with int. control valve
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
160 mÂł/h
Leakage rate [% Kvs]
0.01
Leakage through port max. [% Kvs]
0.01
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Operating pressure [bar] [Max]
25 bar
Permissible media
District heating/cooling circulation water
PN alternative VSP
40
Pressure class
PN 25
Pressure controller
No
Pressure nominal [bar]
25 bar
Pressure relieve system control valve insert
Chamber
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
b7b59542-4217-4c5c-96a5-552807d72d74
SCIP dossier product name
AFQM DN65-400
Sealing CV material
EPDM
Sealing DP material
EPDM
Setting Type
Fixed
Stem position
Normally open
Stroke [mm]
19 mm
Type
AFQM 2
UK RoHS compliance
Out of scope
Valve body material
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone CV material
Stainless steel mat. No. 1.4021
Valve cone DP material
Stainless steel mat. No. 1.4021
Valve seat DP material
Stainless steel, mat. No. 1.4021
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 100
