003G5576

Part Number: 003G5576
003G5576
Manufacturer
Danfoss
Part number
003G5576
Category

Product Information

Extended Description

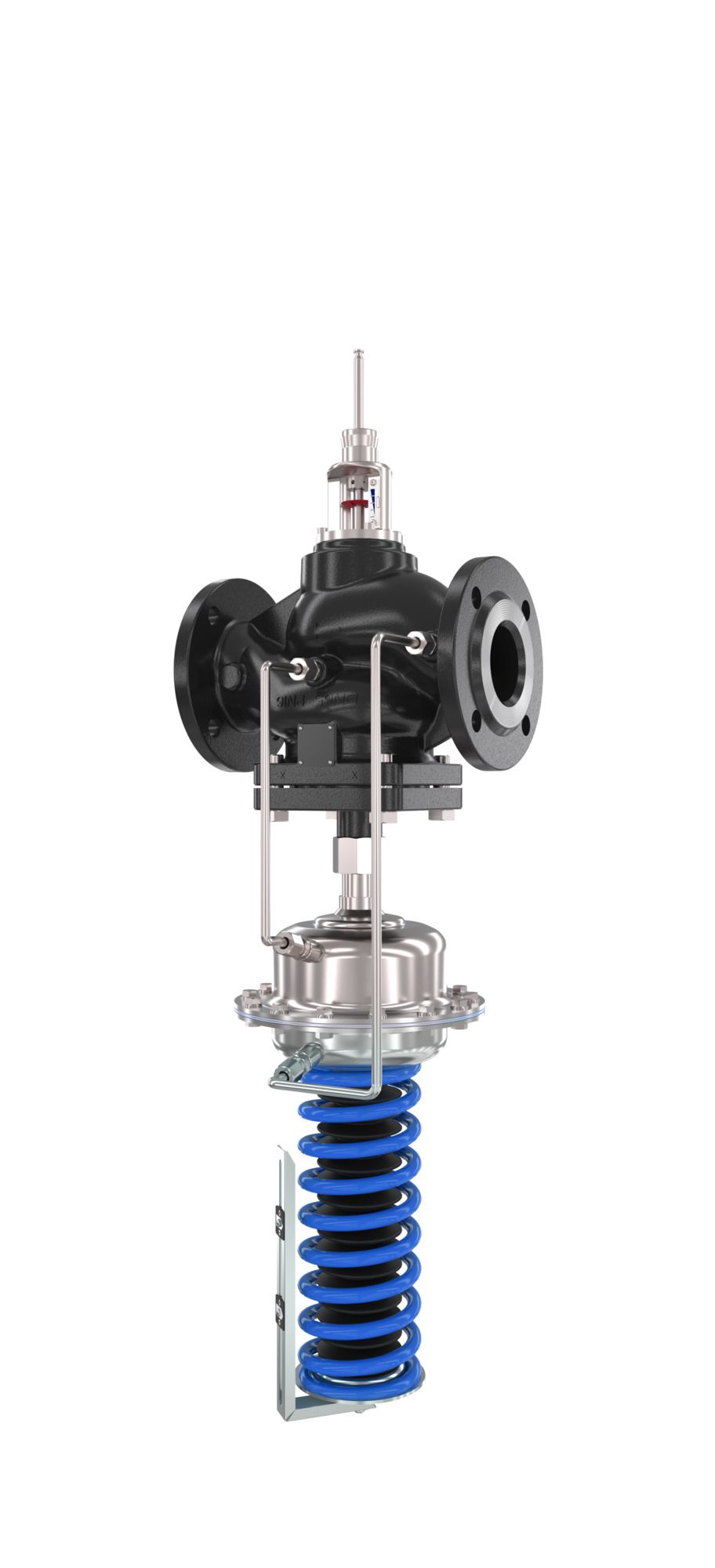

003G5576 Danfoss: Pressure independent control valve
Gross weight
483 Kilogram
Net weight
427 Kilogram
Volume
1376 Liter
EAN
5714279064896
Actuator diaphragm material
EPDM (Rolling, fibre enforced)
Actuator size [cm²]
320 cm²
Application
District heating and cooling
Cavitation factor
0.27
Cavitation factor 100%
0.22
Cavitation factor 25%
0.36
Cavitation factor 50%
0.36
Cavitation factor 75%
0.27
China RoHS compliance
Out of scope
Connection size
DN 250
Connection types
Flange
Contain batteries
No
Description
Pressure independent control valve
Diameter [mm]
250 mm
Differential pressure range [bar] [Max]
10 bar
Differential pressure setting [bar] [Max]
1 bar
Differential pressure setting [bar] [Min]
0.1 bar
EU RoHS compliance
Out of scope
Flow control
Yes
Flow limitation
Yes
Flow rate [mÂł/h]
630 mÂł/h
Flow rate [mÂł/h] [Max]
630 mÂł/h
Flow rate [mÂł/h] [Min]
56 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
1 bar
Function
Flow controller with int. control valve
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
800 mÂł/h
Leakage rate [% Kvs]
0.01
Leakage through port max. [% Kvs]
0.01
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Operating pressure [bar] [Max]
25 bar
Permissible media
District heating/cooling circulation water
PN alternative VSP
40
Pressure class
PN 25
Pressure controller
No
Pressure nominal [bar]
25 bar
Pressure relieve system control valve insert
Chamber
Pressure setting range [bar] [Max]
1 bar
Pressure setting range [bar] [Min]
0.1 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing CV material
EPDM
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally open
Stroke [mm]
32 mm
Type
AFQMP 2
UK RoHS compliance
Out of scope
Valve body material
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone CV material
Stainless steel mat. No. 1.4021
Valve cone DP material
Stainless steel mat. No. 1.4021
Valve seat DP material
Stainless steel, mat. No. 1.4021
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 250
003G5610
AFP 2, PN 16, 0.10 bar - 1.00 bar, 320 cm²
003G5620
AFP 2, PN 40, 0.10 bar - 1.00 bar, 320 cm²
082G4300
AMEi 6 iSET 230V
082G4301
AMEi 6 iSET 24 V
082G4302
AMEi 6 iNET 230V
082G4303
AMEi 6 iNET 24V
eBook | Virtus - Digital empowered heavy-duty pressure and flow controllers AFQMP 2 AFQM 2, AFQMP 2 (PN16,25,40) Danfoss EU 230530EN0858104.05 Actuators pressure flow and temperature BV UKCA-0041-PESR-H-DAF 001-22-FBR Danfoss UK 230612EN0856102.02 AFQMP 2 PN16 65/60 /0,1-0,7 160 cm2 blue flange flow/ret AFQMP 2 PN16 65/60 /0,1-0,7 160 cm2 blue flange flow/ret AFQMP2_DN250_PN25_003G5576_3D AFQMP2_DN250_PN25_003G5576_STEP AFQMP2_DN250_PN25_003G5576_2D AFQMP 2_DN65-250_PN25_RFA
