003G5617

Part Number: 003G5617
003G5617
Manufacturer
Danfoss
Part number
003G5617
Category

Product Information

Extended Description

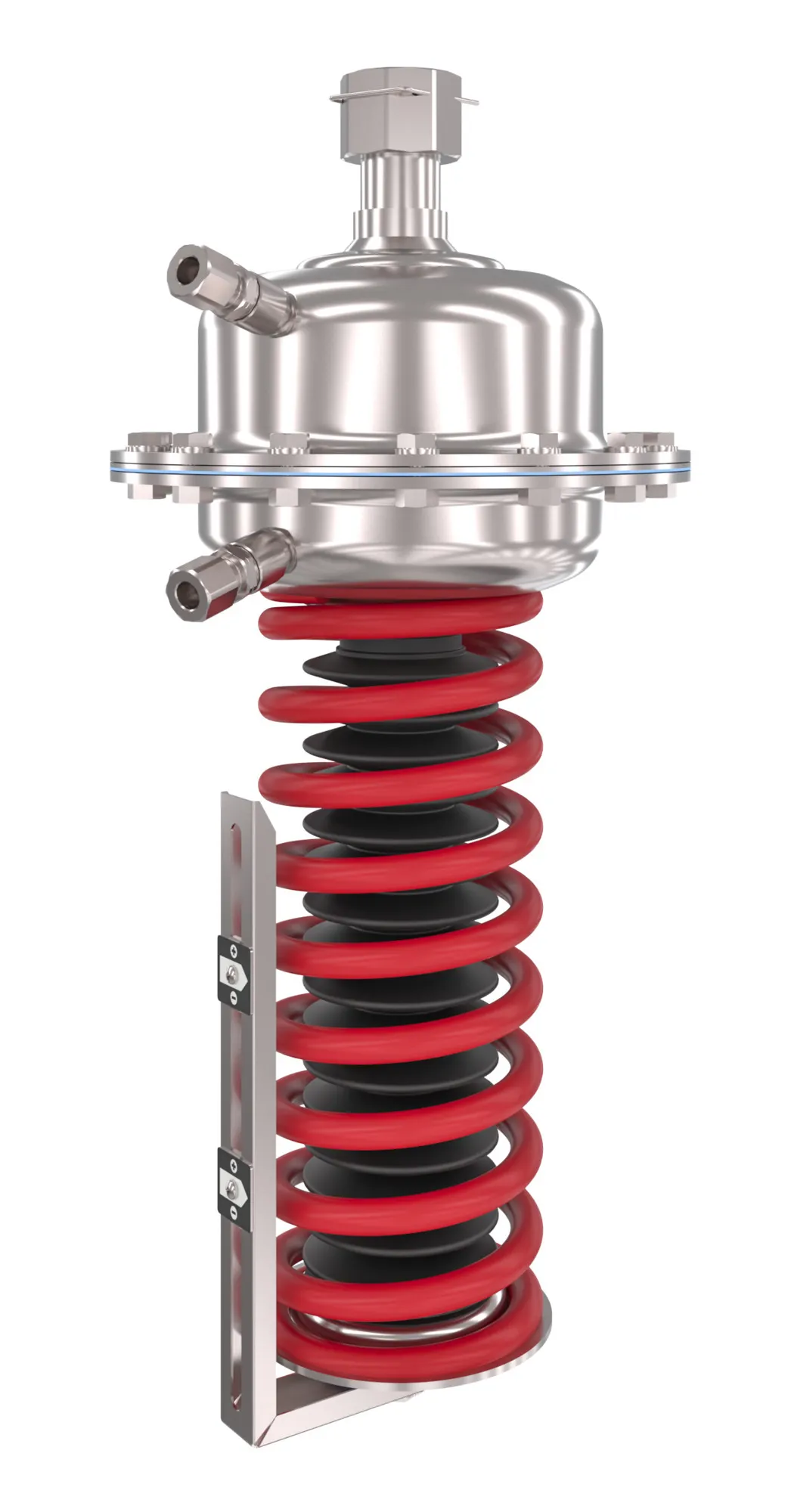

003G5617 Danfoss: Differential pressure actuator
Gross weight
15.5 Kilogram
Net weight
14 Kilogram
Volume
51.867 Liter
EAN
5710104523149
Actuator diaphragm material
EPDM (Rolling, fibre enforced)
Actuator size [cm²]
160 cm²
Body material
Steel, mat. No. 1.0345, zinc plated
China RoHS compliance
Out of scope
Contain batteries
No
Description
Differential pressure actuator
Diameter [mm] [Max]
250 mm
Diameter [mm] [Min]
65 mm
Differential pressure setting [bar] [Max]
2.5 bar
Differential pressure setting [bar] [Min]
1 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Diff. press. controller
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Operating pressure [bar] [Max]
40 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 40
Pressure controller
Differential pressure controller
Pressure nominal [bar]
40 bar
Product group
Actuators - Pressure Flow
Setting Type
Adjustable
Type
AFP 2
UK RoHS compliance
Out of scope
003G1391
Impulse tubes, 10 mm, G 1/4, 1500 mm, Cooper CW 024A, For product type: AFP(Q)/B, Universal
003G1401
Shut off valve 10 mm (Herose)
003G1468
Compression fitting fi 10x1 mm, 1 pc
003G1780
Adapter new AFP2 to old VFG/Q2(1) DN15-250
065B2909
Throttle valve HD impulstubes
082G4300
AMEi 6 iSET 230V
082G4301
AMEi 6 iSET 24 V
082G4302
AMEi 6 iNET 230V
082G4303
AMEi 6 iNET 24V
eBook | Virtus - Digital empowered heavy-duty pressure and flow controllers AFP 2, VFG 22(1) AFP 2_VFG 2(21), VFG 22(221) Danfoss EU 230530EN0858104.05 Actuators pressure flow and temperature BV UKCA-0041-PESR-H-DAF 001-22-FBR Danfoss UK 230612EN0856102.02 AFP 2 PN16 1,5-5 AFP2_PN40_RFA VFG 22(1)_DN65-250_PN25_AFP2_RFA VFG 22(1)_DN65-250_PN40_AFP2_RFA AFP2_PN40_160cm2_3D AFP2_PN40_160cm2_STEP AFP2_PN40_160cm2_2D
