003G5632
Part Number: 003G5632
Product Information
Extended Description

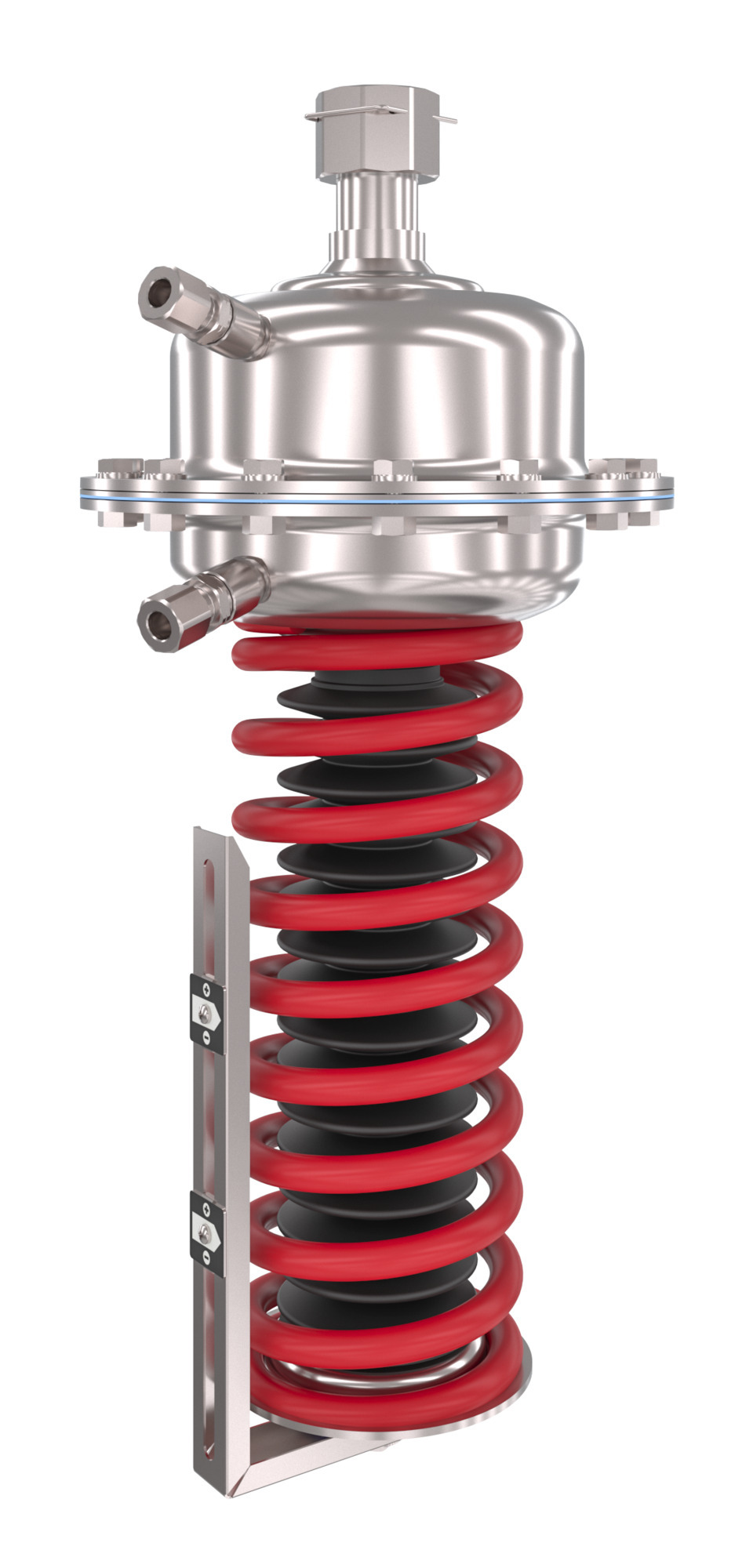

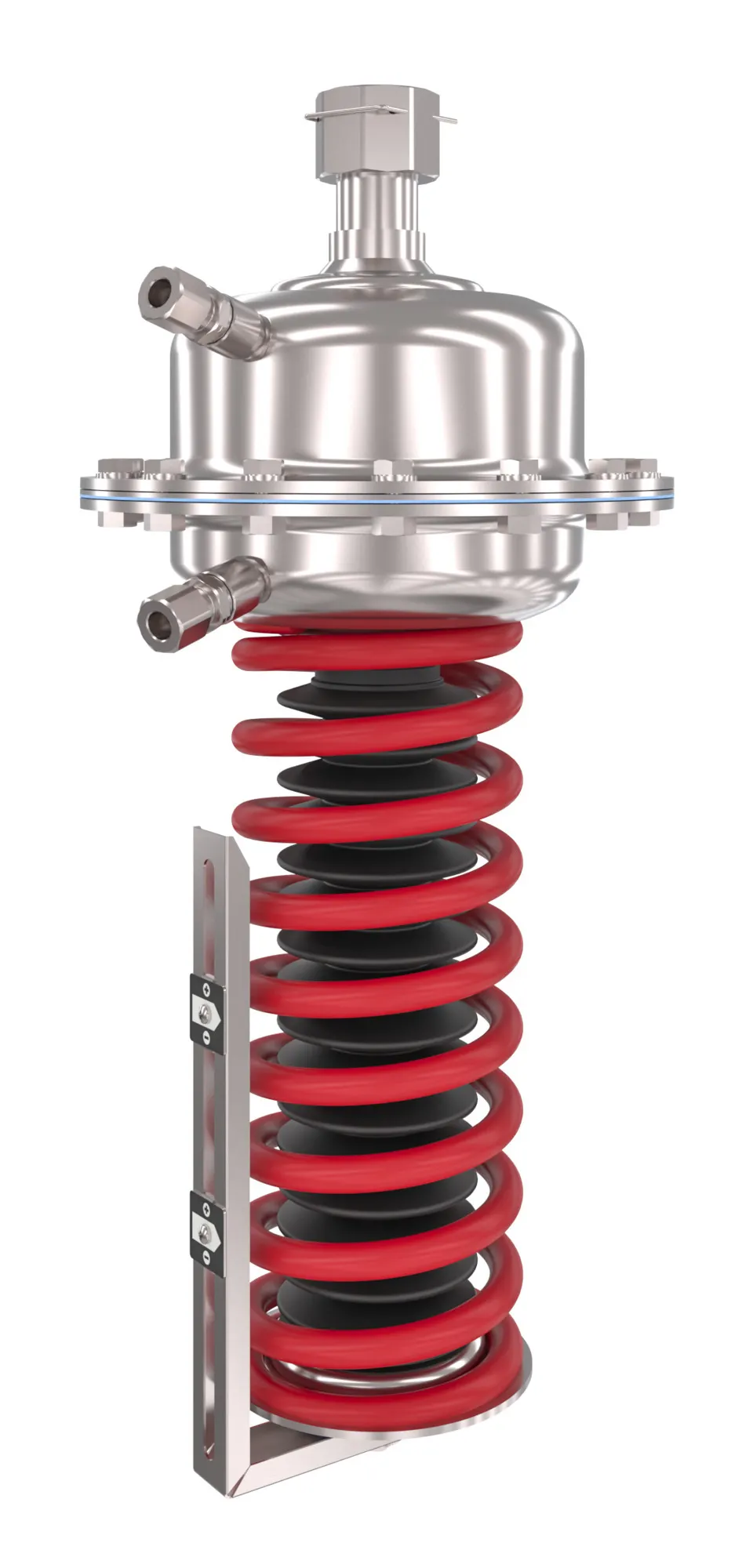

003G5632 Danfoss: Pressure reduction actuator
Gross weight
25.5 Kilogram
Net weight
15 Kilogram
Volume
201.6 Liter
EAN
5710104518633
Actuator diaphragm material
EPDM (Rolling, fibre enforced)
Actuator size [cm²]
320 cm²
Application
District heating and cooling
Body material
Steel, mat. No. 1.0345, zinc plated
China RoHS compliance
Out of scope
Contain batteries
No
Description
Pressure reduction actuator
Diameter [mm] [Max]
250 mm
Diameter [mm] [Min]
65 mm
Differential pressure setting [bar] [Max]
1 bar
Differential pressure setting [bar] [Min]
0.1 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Press. reduction controller
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Flow
Operating pressure [bar] [Max]
16 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure controller
Press. reduction controller
Pressure nominal [bar]
16 bar
Pressure setting range [bar] [Max]
0.7 bar
Pressure setting range [bar] [Min]
0.1 bar
Product group
Actuators - Pressure Flow
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Setting Type
Adjustable
Type
AFD 2
UK RoHS compliance
Out of scope
003G1391
Impulse tubes, 10 mm, G 1/4, 1500 mm, Cooper CW 024A, For product type: AFP(Q)/B, Universal
003G1401
Shut off valve 10 mm (Herose)
003G1468
Compression fitting fi 10x1 mm, 1 pc
003G1780
Adapter new AFP2 to old VFG/Q2(1) DN15-250
065B2909
Throttle valve HD impulstubes
eBook | Virtus - Digital empowered heavy-duty pressure and flow controllers
AFD 2/VFG 22(1)
AFD 2_VFG 2(21), VFG 22(221)
Danfoss EU 230530EN0858104.05
Actuators pressure flow and temperature
BV UKCA-0041-PESR-H-DAF 001-22-FBR
Danfoss UK 230612EN0856102.02
AFD 2 PN16 3-12
AFD 2 PN16
AFD2_PN16_80cm2_STEP
AFD2_PN16_320cm2_3D
AFD2_PN16_320cm2_2D
