003G5696
Part Number: 003G5696
Product Information
Extended Description

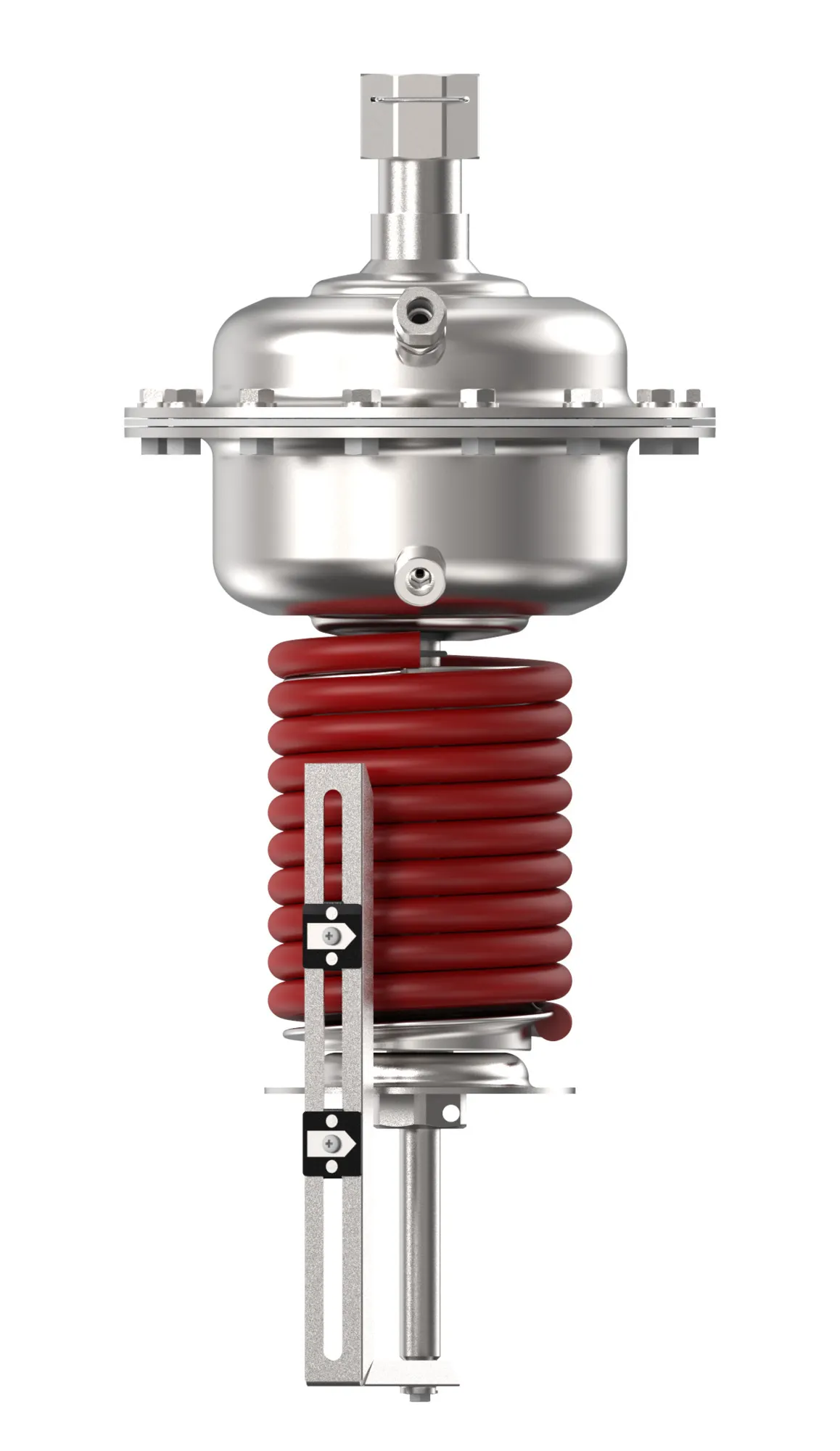

003G5696 Danfoss: Differential pressure relief actuator
Gross weight
13.793 Kilogram
Net weight
12.4 Kilogram
Volume
52.304 Liter
EAN
5710104523569
Actuator diaphragm material
EPDM (Rolling, fibre enforced)
Actuator size [cm²]
80 cm²
Application
District heating and cooling
Body material
Steel, mat. No. 1.0345, zinc plated
China RoHS compliance
Out of scope
Contain batteries
No
Description
Differential pressure relief actuator
Diameter [mm] [Max]
125 mm
Diameter [mm] [Min]
65 mm
Differential pressure setting [bar] [Max]
6 bar
Differential pressure setting [bar] [Min]
1.5 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Diff. press. relief controller
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Bypass
Operating pressure [bar] [Max]
40 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 40
Pressure controller
Differential pressure relief controller
Pressure nominal [bar]
40 bar
Product group
Actuators - Pressure Flow
Setting Type
Adjustable
Type
AFPA 2
UK RoHS compliance
Out of scope
003G1391
Impulse tubes, 10 mm, G 1/4, 1500 mm, Cooper CW 024A, For product type: AFP(Q)/B, Universal
003G1401
Shut off valve 10 mm (Herose)
003G1468
Compression fitting fi 10x1 mm, 1 pc
003G1780
Adapter new AFP2 to old VFG/Q2(1) DN15-250
065B2909
Throttle valve HD impulstubes
082G4302
AMEi 6 iNET 230V
082G4303
AMEi 6 iNET 24V
