003H6361

Part Number: 003H6361
003H6361
Manufacturer
Danfoss
Part number
003H6361
Category

Product Information

Extended Description

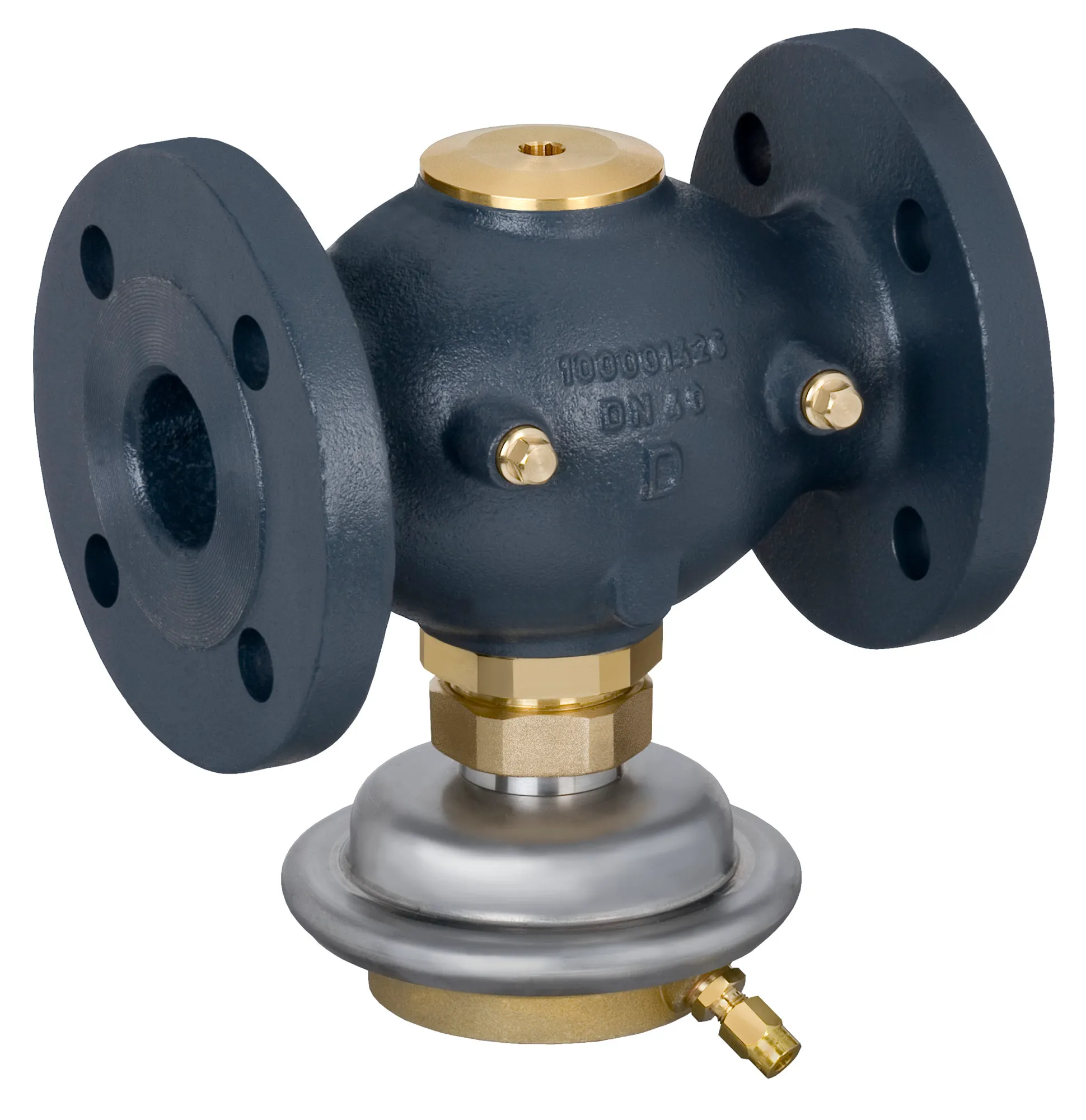

003H6361 Danfoss: AVP-F PN25 40/20 0,2 flange return
Gross weight
11.555 Kilogram
Net weight
11.555 Kilogram
Volume
27.048 Liter
EAN
5702421538920
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.34
Cavitation factor 25%
0.58
Cavitation factor 50%
0.52
Cavitation factor 75%
0.5
China RoHS compliance
Out of scope
Connection size
G 2 A
Connection types
Flange
Contain batteries
No
Description
AVP-F PN25 40/20 0,2 flange return
Diameter [mm]
40 mm
Differential pressure range [bar] [Max]
16 bar
Differential pressure setting [bar] [Max]
0.2 bar
Differential pressure setting [bar] [Min]
0.2 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Diff. press. controller
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
20 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Return
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
0
Pressure class
PN 25
Pressure controller
Differential pressure controller
Pressure nominal [bar]
25 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Setting Type
Fixed
Stem position
Normally open
Type
AVP-F
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 40
