003H6449

Part Number: 003H6449
003H6449
Manufacturer
Danfoss
Part number
003H6449
Category

Product Information

Extended Description

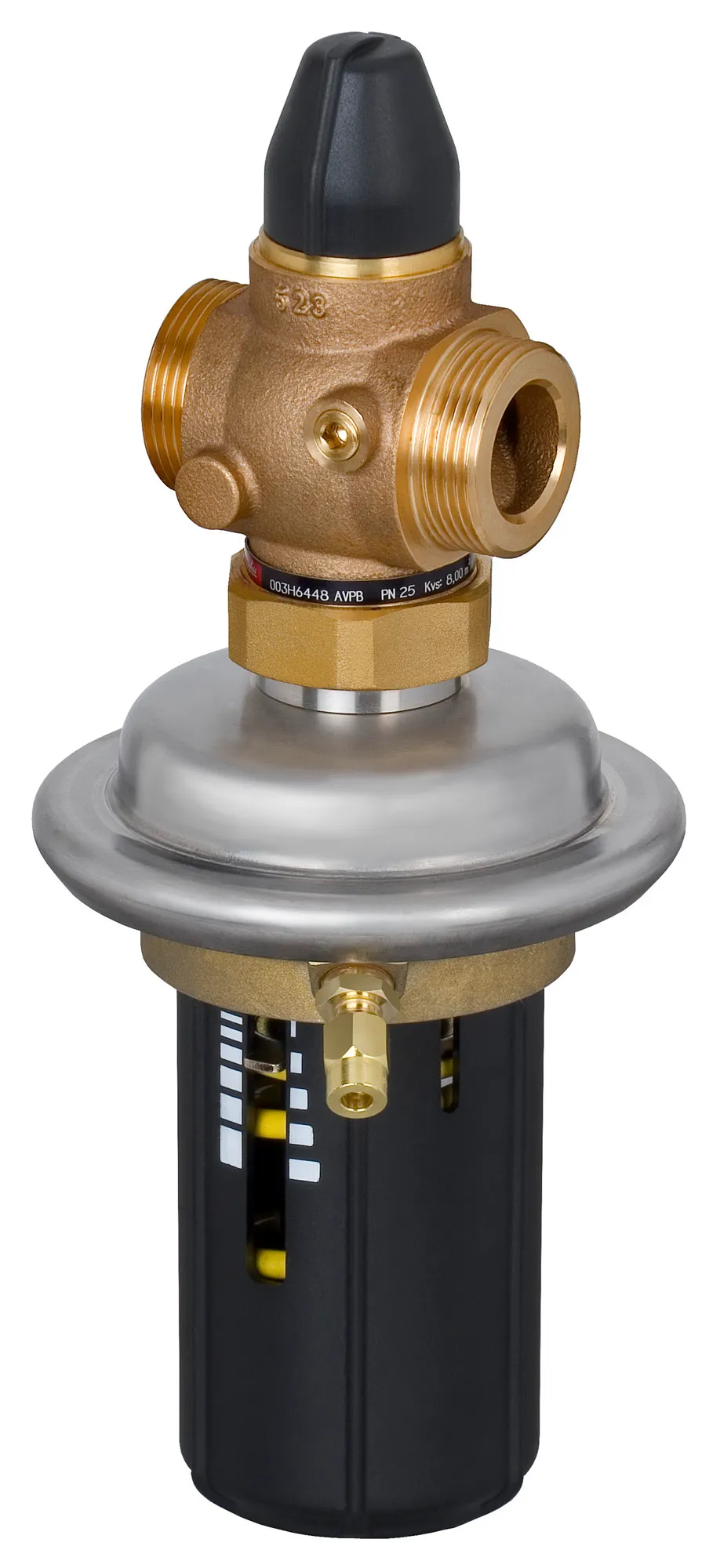

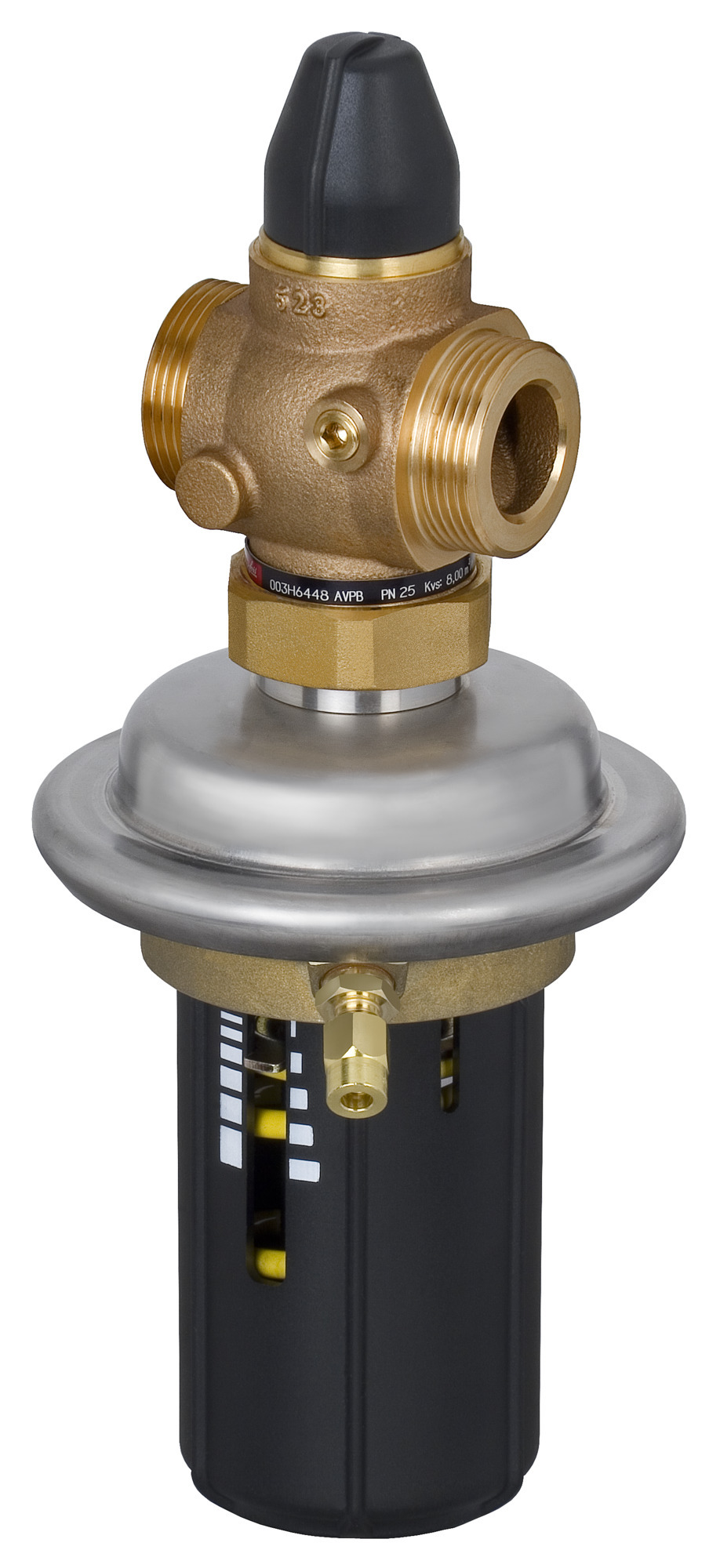

003H6449 Danfoss: AVPB PN25 32/12,5 0,2-1,0 thread return
Gross weight
5.954 Kilogram
Net weight
5.954 Kilogram
Volume
11.876 Liter
EAN
5702421539682
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.38
Cavitation factor 25%
0.64
Cavitation factor 50%
0.57
Cavitation factor 75%
0.55
China RoHS compliance
Out of scope
Connection size
G 1 3/4 A
Connection types
External Thread
Contain batteries
No
Description
AVPB PN25 32/12,5 0,2-1,0 thread return
Diameter [mm]
32 mm
Differential pressure range [bar] [Max]
16 bar
Differential pressure setting [bar] [Max]
1 bar
Differential pressure setting [bar] [Min]
0.2 bar
dPb virtual
0.2
EU RoHS compliance
Yes with exemptions
Flow control
No
Flow limitation
Yes
Flow rate [mÂł/h]
8 mÂł/h
Flow rate [mÂł/h] [Max]
10 mÂł/h
Flow rate [mÂł/h] [Min]
0.4 mÂł/h
Function
Diff. press. and flow limiter
Function VSP - P
Yes
Function VSP - Q
Yes
Function VSP - T
No
Kvs values [mÂł/h]
12.5 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Return
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure controller
Differential pressure controller
Pressure nominal [bar]
25 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally open
Type
AVPB
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 32
003H6829
Actuators and adjustment parts, For product type: AVP, 0.20 bar - 1.00 bar, 0.20 bar - 1.00 bar, Mounting version: Return
003H6868
Valve Inserts, For product type: AV(P)QM (T), PN 25, DN 32
003H0276
Shut off valve 6 mm (Serto)
003H6852
Impulse tubes, 6 mm, R 1/8, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6853
Impulse tubes, 6 mm, R 3/8, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6854
Impulse tubes, 6 mm, R 1/2, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6857
10 comp.fitt.imp.tube pipe fi 6x1mmR1/8
003H6858
10 comp.fitt.imp.tube pipe fi 6x1mmR3/8
003H6859
10 comp.fitt.imp.tube pipe fi 6x1mmR1/2
003H6905
Thread tailpieces, PN 25, DN 32, G 1 3/4; Rp 1 1/4, External Thread
003H6911
Weld-on tailpieces, PN 25, DN 32, G 1 3/4
003H6931
10 comp.fitt.imp.t.act fi6x1mmG1/8#fi1
