003H6487

Part Number: 003H6487
003H6487
Manufacturer
Danfoss
Part number
003H6487
Category

Product Information

Extended Description

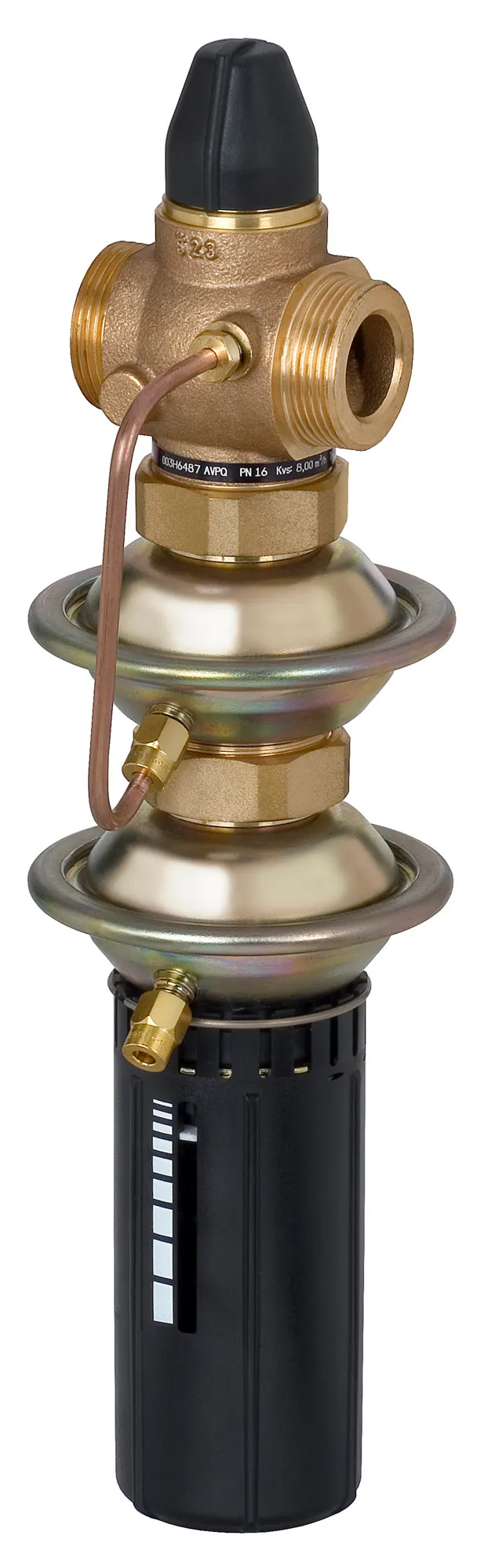

003H6487 Danfoss: AVPQ PN16 25/8 0,2-1,0/0,2 thread return
Gross weight
3.29 Kilogram
Net weight
3.29 Kilogram
Volume
10.108 Liter
EAN
5702421540060
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.38
Cavitation factor 25%
0.64
Cavitation factor 50%
0.57
Cavitation factor 75%
0.55
China RoHS compliance
Out of scope
Connection size
G 1 1/4 A
Connection types
External Thread
Contain batteries
No
Description
AVPQ PN16 25/8 0,2-1,0/0,2 thread return
Diameter [mm]
25 mm
Differential pressure range [bar] [Max]
12 bar
Differential pressure setting [bar] [Max]
1 bar
Differential pressure setting [bar] [Min]
0.2 bar
EU RoHS compliance
Yes with exemptions
Flow control
Yes
Flow limitation
No
Flow rate [mÂł/h]
4.5 mÂł/h
Flow rate [mÂł/h] [Max]
4.5 mÂł/h
Flow rate [mÂł/h] [Min]
0.1 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Function
Diff. press. and flow controller
Function VSP - P
Yes
Function VSP - Q
Yes
Function VSP - T
No
Kvs values [mÂł/h]
8 mÂł/h
Leakage rate [% Kvs]
0.02
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Return
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
0
Pressure class
PN 16
Pressure controller
Differential pressure controller
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
a883467d-7d07-451c-98b2-12e7e7816a62
SCIP dossier product name
AVPQ PN16 DN15-32
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally open
Type
AVPQ
UK RoHS compliance
Out of scope
Valve body material
Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 25
003H6822
Actuators and adjustment parts, For product type: AVP, 0.20 bar - 1.00 bar, 0.20 bar - 1.00 bar, Mounting version: Return
003H6827
Actuators and adjustment parts, For product type: AVPQ, Mounting version: Return
003H6867
Valve Inserts, For product type: AV(P)QM (T), PN 25, DN 25
003H0276
Shut off valve 6 mm (Serto)
003H0277
Seal pot, 0.3 l, MD range
003H6852
Impulse tubes, 6 mm, R 1/8, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6853
Impulse tubes, 6 mm, R 3/8, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6854
Impulse tubes, 6 mm, R 1/2, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6855
Combination Piece K2, M45 / 2 x M45
003H6856
Combination Piece K3, M45 / 3 x M45
003H6904
Thread tailpieces, PN 25, DN 25, R 1; G 1 1/4, External Thread
003H6910
Weld-on tailpieces, PN 25, DN 25, G 1 1/4
003H6917
Flange tailpieces, PN 25, DN 25, G 1 1/4
