003H6567

Part Number: 003H6567
003H6567
Manufacturer
Danfoss
Part number
003H6567
Category

Product Information

Extended Description

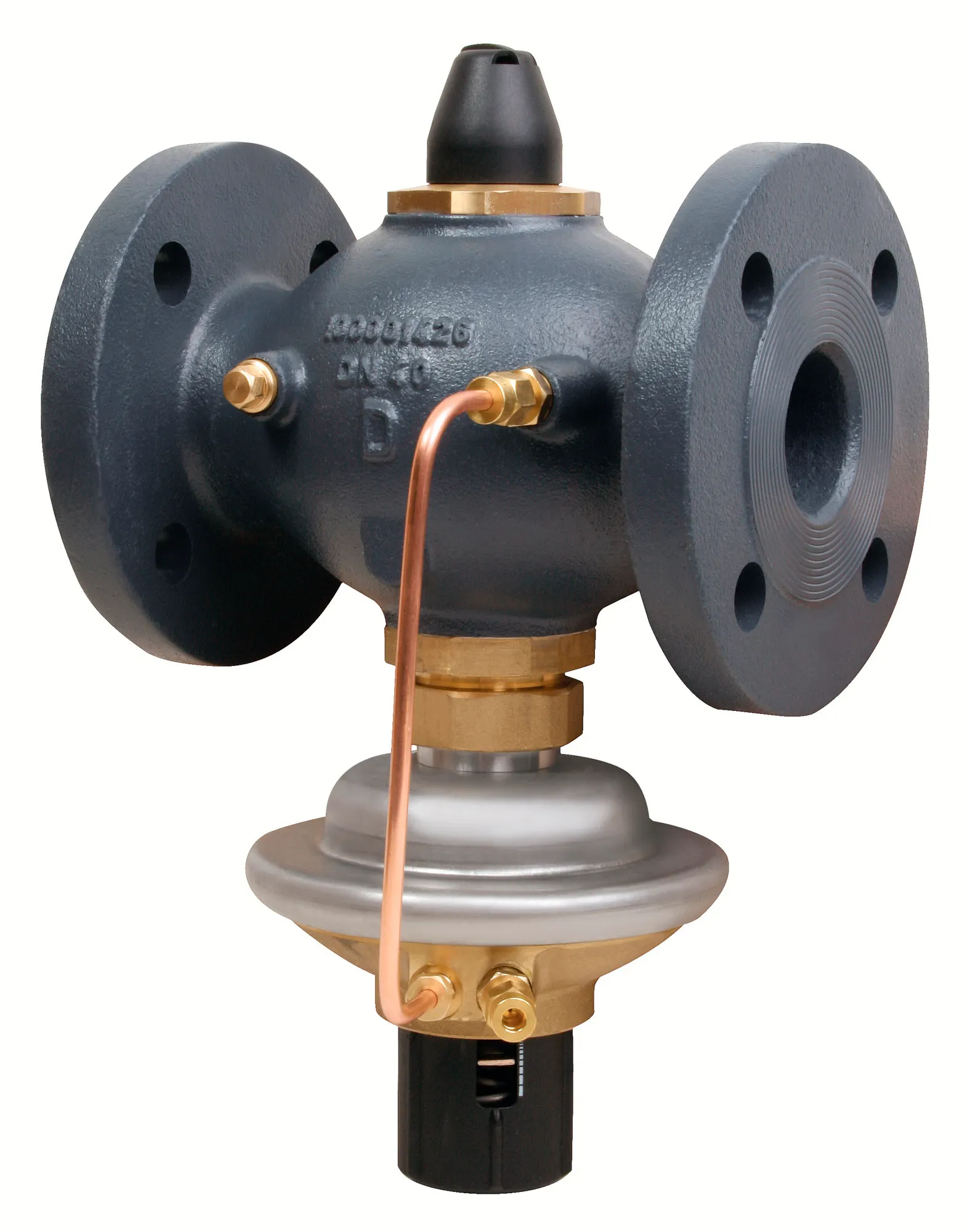

003H6567 Danfoss: AVPQ PN25 40/20 0,3-2,0/0,2 flange ret
Gross weight
12.411 Kilogram
Net weight
12.411 Kilogram
Volume
26.754 Liter
EAN
5702421540893
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.34
Cavitation factor 25%
0.58
Cavitation factor 50%
0.52
Cavitation factor 75%
0.5
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
AVPQ PN25 40/20 0,3-2,0/0,2 flange ret
Diameter [mm]
40 mm
Differential pressure range [bar] [Max]
16 bar
Differential pressure setting [bar] [Max]
2 bar
Differential pressure setting [bar] [Min]
0.3 bar
EU RoHS compliance
Yes with exemptions
Flow control
Yes
Flow limitation
No
Flow rate [mÂł/h]
10 mÂł/h
Flow rate [mÂł/h] [Max]
12 mÂł/h
Flow rate [mÂł/h] [Min]
0.8 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Function
Diff. press. and flow controller
Function VSP - P
Yes
Function VSP - Q
Yes
Function VSP - T
No
Kvs values [mÂł/h]
20 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Return
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure controller
Differential pressure controller
Pressure nominal [bar]
25 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally open
Type
AVPQ
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 40
003H6850
Actuators and adjustment parts, For product type: AVPQ, 0.30 bar - 2.00 bar, 0.30 bar - 2.00 bar, Mounting version: Return
003G1599
Compression fitting fi6 for internal thread with locking screw
003H0276
Shut off valve 6 mm (Serto)
003H0277
Seal pot, 0.3 l, MD range
003H0488
Impulse tubes, 6 mm, 1500 mm, Brass CW617N, For product type: AFP(Q)/B
003H6852
Impulse tubes, 6 mm, R 1/8, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6853
Impulse tubes, 6 mm, R 3/8, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6854
Impulse tubes, 6 mm, R 1/2, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6855
Combination Piece K2, M45 / 2 x M45
003H6856
Combination Piece K3, M45 / 3 x M45
003H6860
Impulse tubes, 6 mm, 1500 mm, COPPER||COPPER, For product type: AV(P)QM (T)
