003H6574

Part Number: 003H6574
003H6574
Manufacturer
Danfoss
Part number
003H6574
Category

Product Information

Extended Description

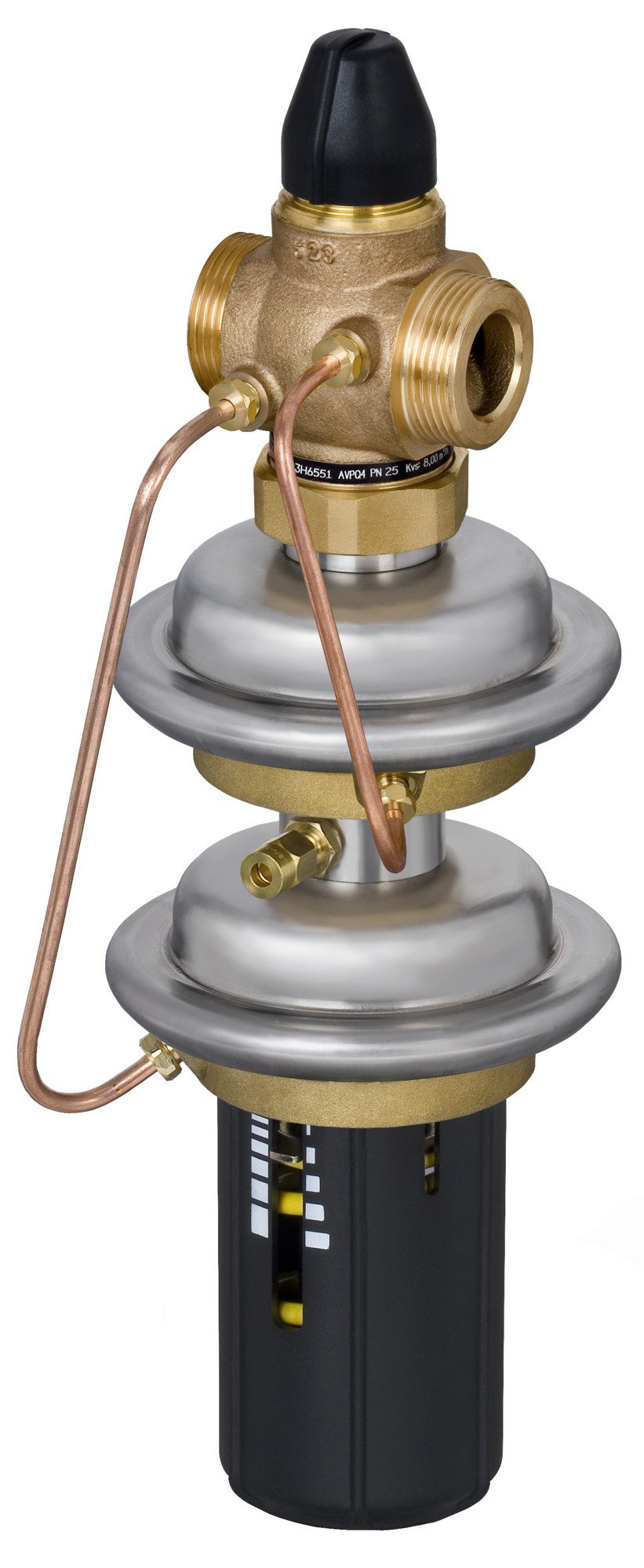

003H6574 Danfoss: AVPQ 4 PN25 50/25 0,3-2,0/0,2 fla flow
Gross weight
16.244 Kilogram
Net weight
16.244 Kilogram
Volume
25.254 Liter
EAN
5702421540930
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.34
Cavitation factor 25%
0.58
Cavitation factor 50%
0.52
Cavitation factor 75%
0.5
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
AVPQ 4 PN25 50/25 0,3-2,0/0,2 fla flow
Diameter [mm]
50 mm
Differential pressure range [bar] [Max]
16 bar
Differential pressure setting [bar] [Max]
2 bar
Differential pressure setting [bar] [Min]
0.3 bar
EU RoHS compliance
Out of scope
Flow control
Yes
Flow limitation
No
Flow rate [mÂł/h]
12 mÂł/h
Flow rate [mÂł/h] [Max]
15 mÂł/h
Flow rate [mÂł/h] [Min]
0.8 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Function
Diff. press. and flow controller
Function VSP - P
Yes
Function VSP - Q
Yes
Function VSP - T
No
Kvs values [mÂł/h]
25 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Flow
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure controller
Differential pressure controller
Pressure nominal [bar]
25 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
aa4135ff-a145-4b96-9e75-a8808037098f
SCIP dossier product name
AVPQ 4 PN25 DN32-50 FLANGE
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally open
Type
AVPQ 4
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 50
003H6851
Actuators and adjustment parts, For product type: AVPQ4, 0.30 bar - 2.00 bar, 0.30 bar - 2.00 bar, Mounting version: Flow
003H0276
Shut off valve 6 mm (Serto)
003H6852
Impulse tubes, 6 mm, R 1/8, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6853
Impulse tubes, 6 mm, R 3/8, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6854
Impulse tubes, 6 mm, R 1/2, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
003H6857
10 comp.fitt.imp.tube pipe fi 6x1mmR1/8
003H6858
10 comp.fitt.imp.tube pipe fi 6x1mmR3/8
003H6859
10 comp.fitt.imp.tube pipe fi 6x1mmR1/2
003H6931
10 comp.fitt.imp.t.act fi6x1mmG1/8#fi1
