003H6605
Part Number: 003H6605
Product Information
Extended Description

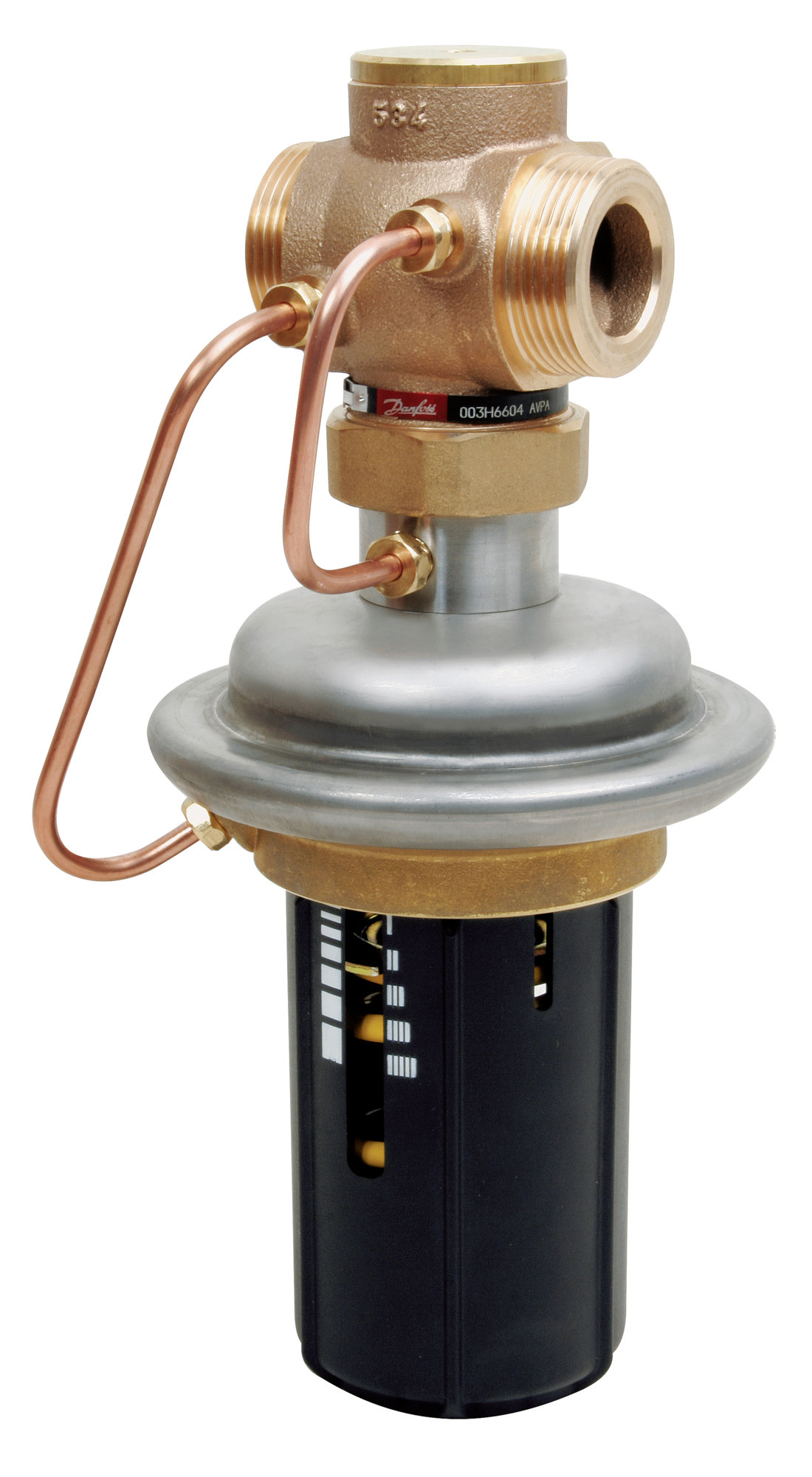

003H6605 Danfoss: AVPA PN25 15/4 0,3-2,0 Gewinde Bypass
Gross weight
3.652 Kilogram
Net weight
3.652 Kilogram
Volume
9.562 Liter
EAN
5702421541258
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.41
Cavitation factor 25%
0.69
Cavitation factor 50%
0.62
Cavitation factor 75%
0.6
China RoHS compliance
Out of scope
Connection size
G 3/4 A
Connection types
External Thread
Contain batteries
No
Description
AVPA PN25 15/4 0,3-2,0 Gewinde Bypass
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
20 bar
Differential pressure setting [bar] [Max]
2 bar
Differential pressure setting [bar] [Min]
0.3 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Diff. press. relief controller
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
4 mÂł/h
Leakage rate [% Kvs]
0.02
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Bypass
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure controller
Differential pressure relief controller
Pressure nominal [bar]
25 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
d82d5b9f-618e-427e-a21f-592d45afaeed
SCIP dossier product name
AVPA
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally closed
Type
AVPA
UK RoHS compliance
Out of scope
Valve body material
Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 15
003H6835
Actuators and adjustment parts, For product type: AVP, 0.30 bar - 2.00 bar, 0.30 bar - 2.00 bar, Mounting version: Flow
003H6902
Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
003H6908
Weld-on tailpieces, PN 25, DN 15, G 3/4
003H6915
Flange tailpieces, PN 25, DN 15, G 3/4
