003H6690

Part Number: 003H6690
003H6690
Manufacturer
Danfoss
Part number
003H6690
Category

Product Information

Extended Description

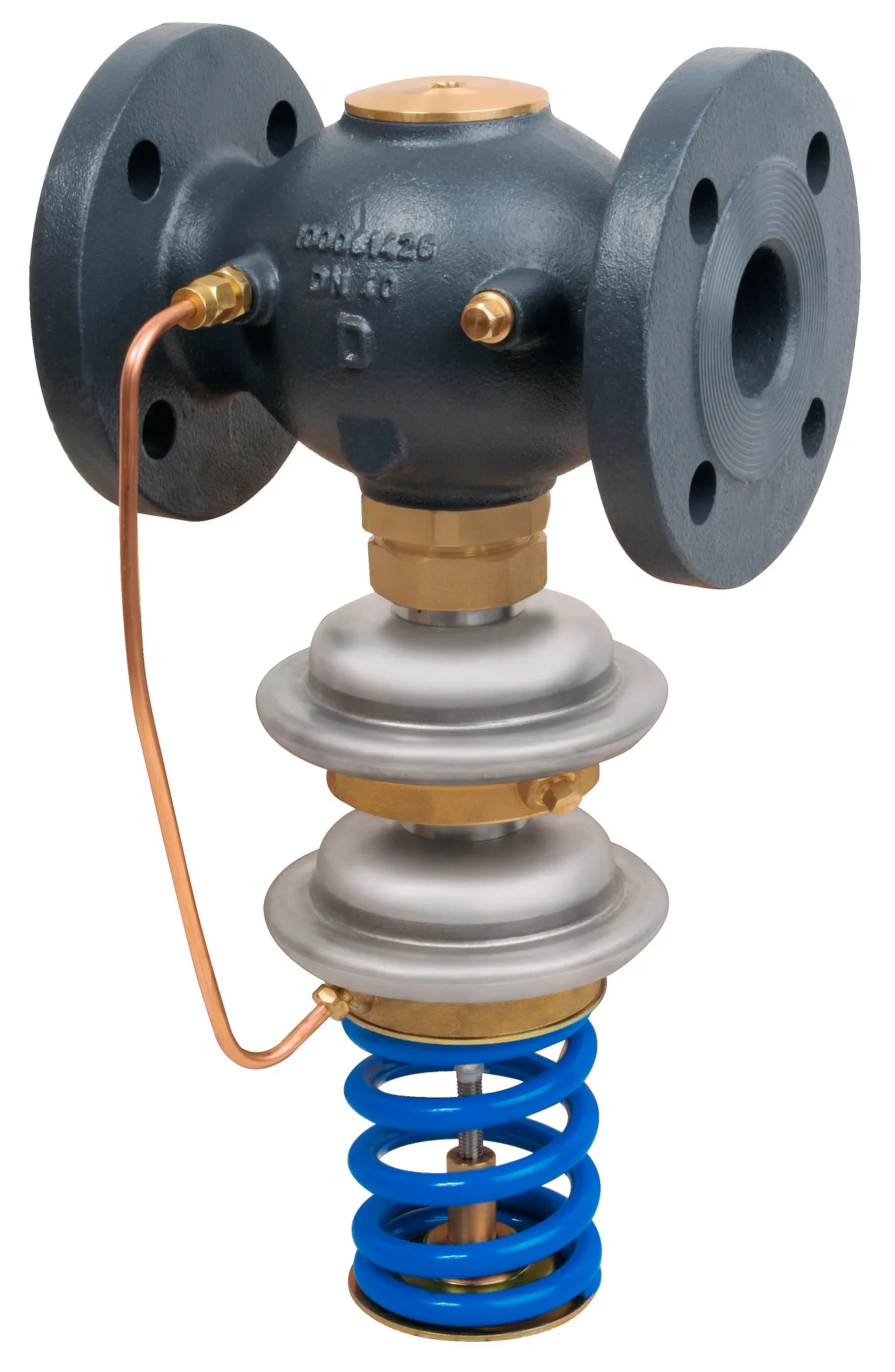

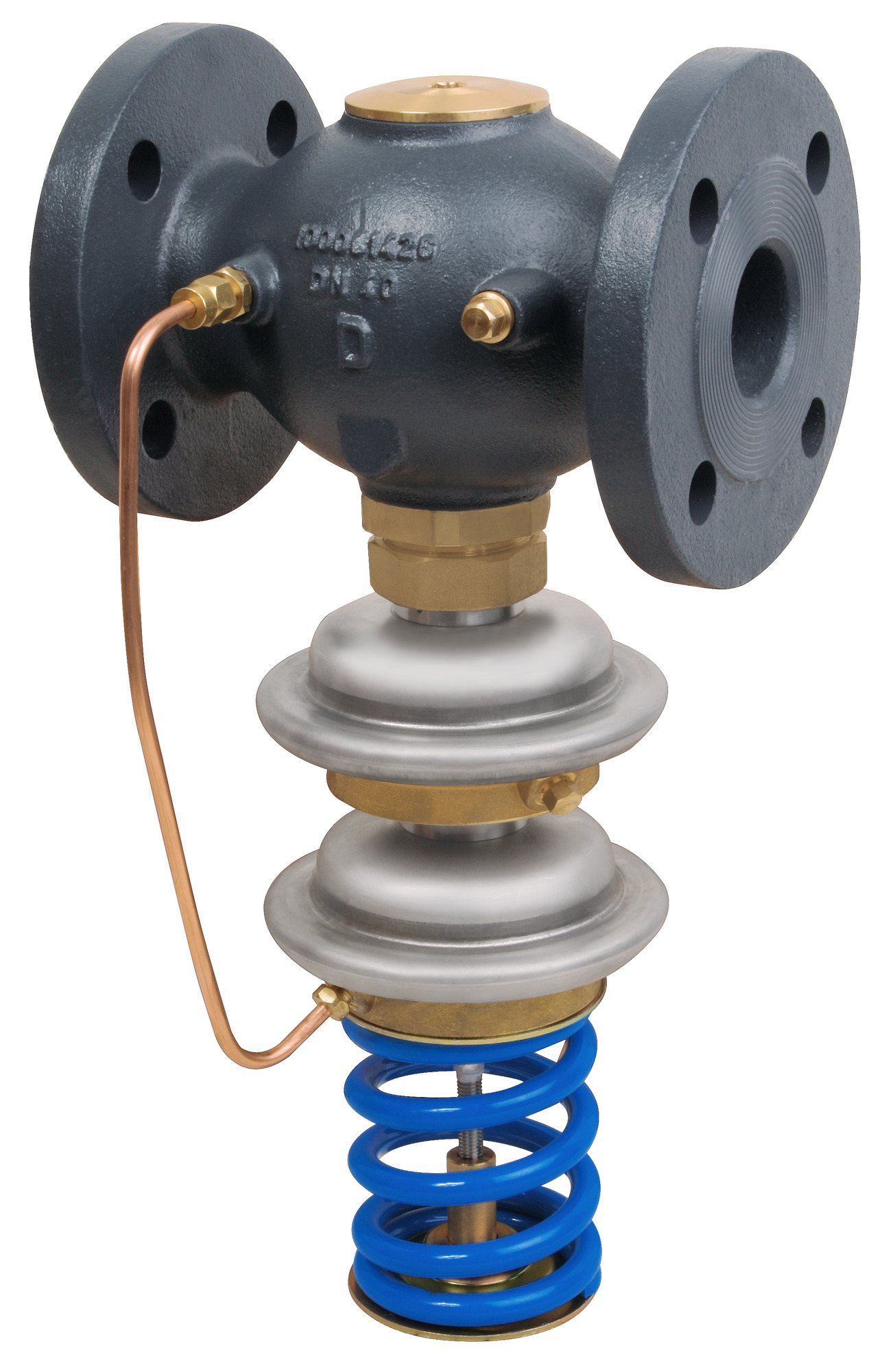

003H6690 Danfoss: SAVA PN25 32/12,5 3-11 flange bypass
Gross weight
14.63 Kilogram
Net weight
14.63 Kilogram
Volume
26.031 Liter
EAN
5702421542118
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.38
Cavitation factor 25%
0.64
Cavitation factor 50%
0.57
Cavitation factor 75%
0.55
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
SAVA PN25 32/12,5 3-11 flange bypass
Diameter [mm]
32 mm
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Yes with exemptions
Flow control
No
Flow limitation
No
Function
Safety press. relief controller (SĂśV)
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
12.5 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Bypass
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure controller
Yes
Pressure nominal [bar]
25 bar
Pressure setting range [bar] [Max]
11 bar
Pressure setting range [bar] [Min]
3 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally closed
Type
SAVA
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 32
003H6846
Actuators and adjustment parts, For product type: SAVA, SAVD, 1.00 bar - 5.00 bar, 1.00 bar - 4.50 bar
003H6847
Actuators and adjustment parts, For product type: SAVA, SAVD, 3.00 bar - 11.00 bar, 3.00 bar - 11.00 bar
003H6905
Thread tailpieces, PN 25, DN 32, G 1 3/4; Rp 1 1/4, External Thread
003H6911
Weld-on tailpieces, PN 25, DN 32, G 1 3/4
