003H6710

Part Number: 003H6710
003H6710
Manufacturer
Danfoss
Part number
003H6710
Category

Product Information

Extended Description

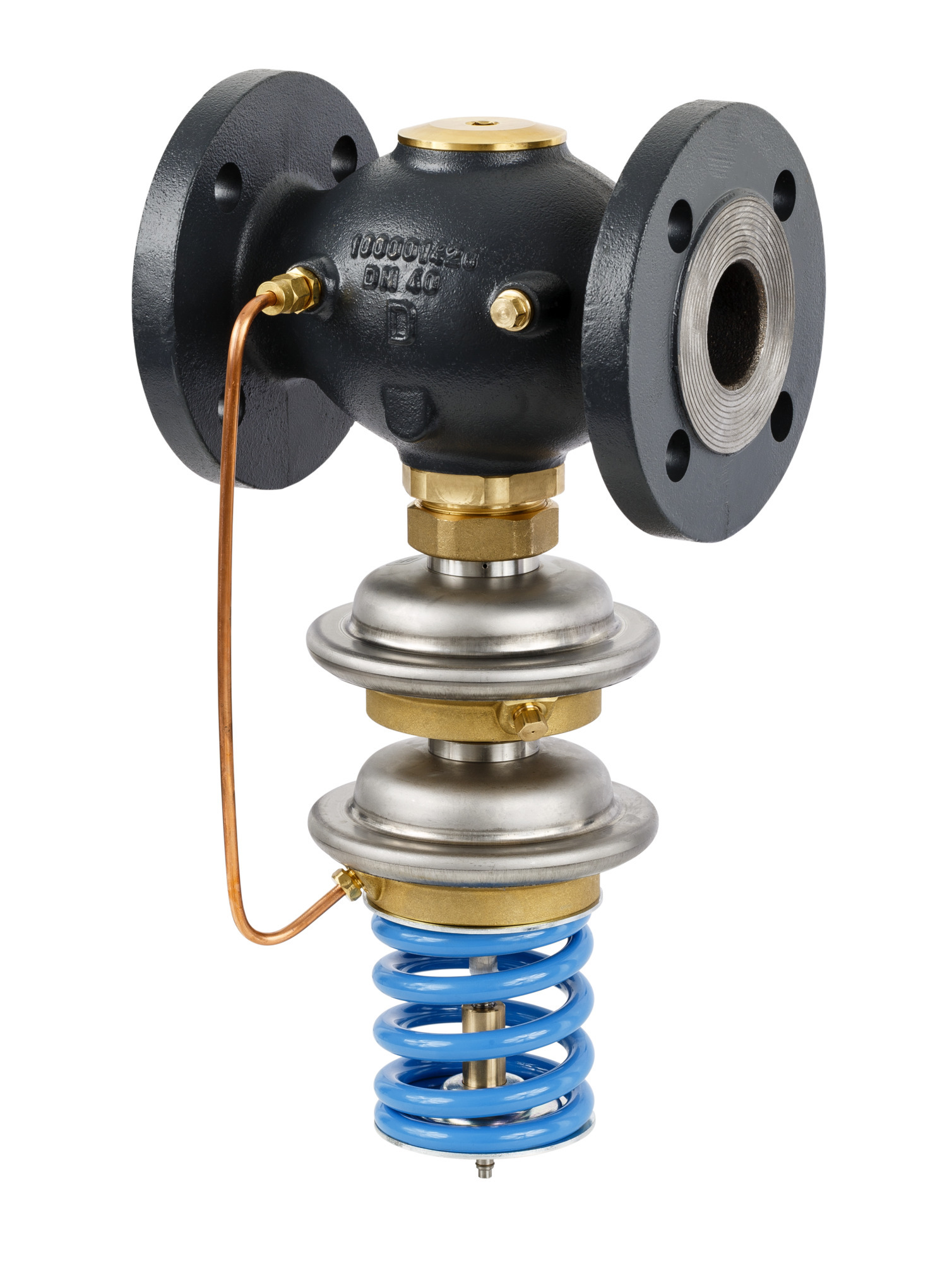

003H6710 Danfoss: SAVD PN25 50/25 3-12 flange flow/ret
Gross weight
17.744 Kilogram
Net weight
17.744 Kilogram
Volume
29.376 Liter
EAN
5702421542316
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.34
Cavitation factor 25%
0.58
Cavitation factor 50%
0.52
Cavitation factor 75%
0.5
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
SAVD PN25 50/25 3-12 flange flow/ret
Diameter [mm]
50 mm
Differential pressure range [bar] [Max]
16 bar
Flow control
No
Flow limitation
No
Function
Safety press. reduction controller (SAV)
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
25 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure controller
Yes
Pressure nominal [bar]
25 bar
Pressure setting range [bar] [Max]
12 bar
Pressure setting range [bar] [Min]
3 bar
Product group
Pressure flow controllers
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally open
Type
SAVD
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 50
003H6846
Actuators and adjustment parts, For product type: SAVA, SAVD, 1.00 bar - 5.00 bar, 1.00 bar - 4.50 bar
003H6847
Actuators and adjustment parts, For product type: SAVA, SAVD, 3.00 bar - 11.00 bar, 3.00 bar - 11.00 bar
003H6876
Valve Inserts, For product type: VG, PN 25, DN 32
003H6913
Weld-on tailpieces, PN 25, DN 50, G 2 1/2
065B2005
Thread tailpieces, PN 25, DN 50, R 2, External Thread
