003H6715

Part Number: 003H6715
003H6715
Manufacturer
Danfoss
Part number
003H6715
Category

Product Information

Extended Description

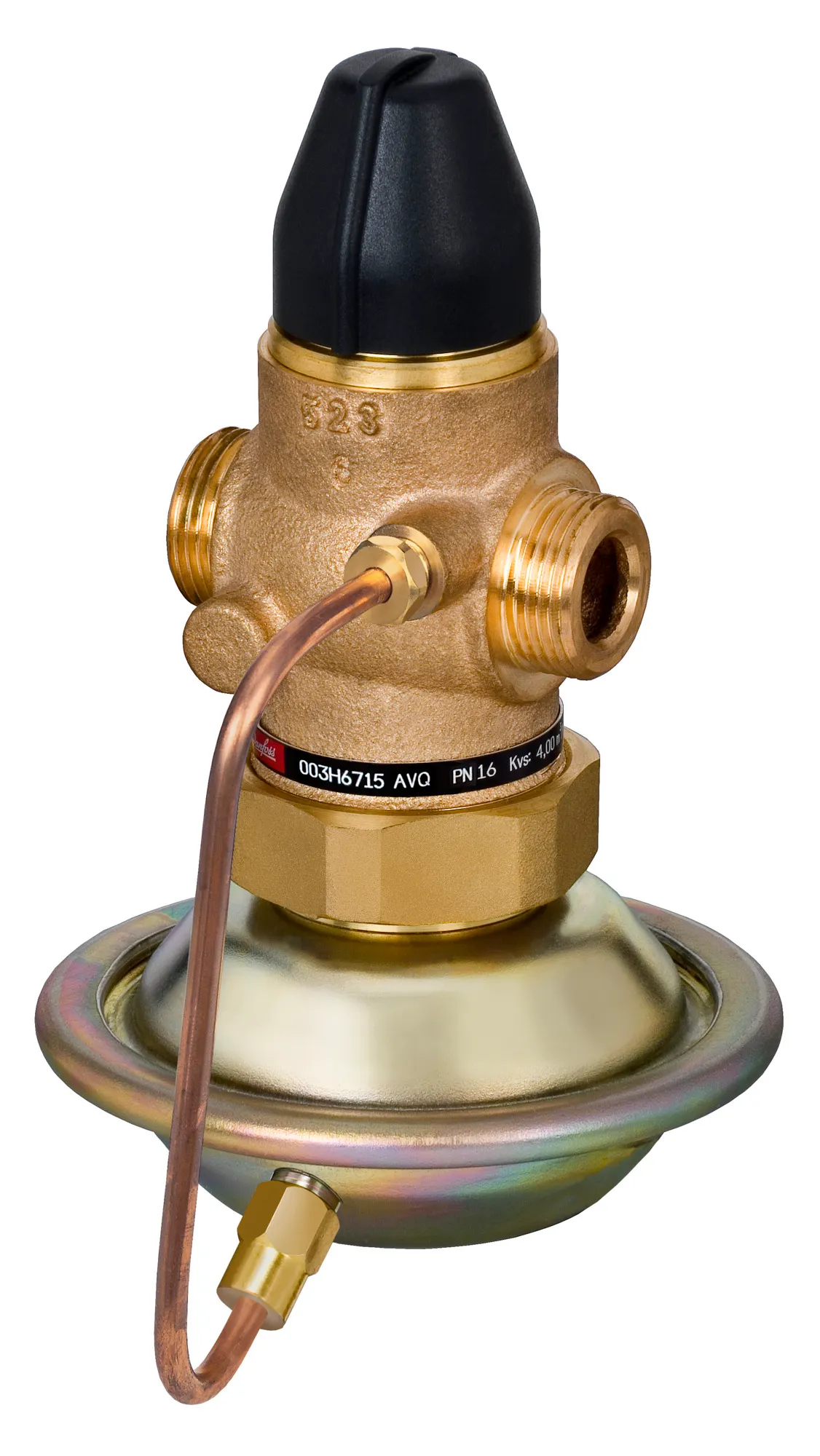

003H6715 Danfoss: AVQ PN16 25/8 /0,2 thread flow/return
Gross weight
1.892 Kilogram
Net weight
1.892 Kilogram
Volume
4.484 Liter
EAN
5702421542361
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.38
Cavitation factor 25%
0.64
Cavitation factor 50%
0.57
Cavitation factor 75%
0.55
China RoHS compliance
Out of scope
Connection size
G 1 1/4 A
Connection types
External Thread
Contain batteries
No
Description
AVQ PN16 25/8 /0,2 thread flow/return
Diameter [mm]
25 mm
Differential pressure range [bar] [Max]
12 bar
EU RoHS compliance
Yes with exemptions
Flow control
Yes
Flow limitation
No
Flow rate [mÂł/h]
6 mÂł/h
Flow rate [mÂł/h] [Max]
6 mÂł/h
Flow rate [mÂł/h] [Min]
0.1 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Function
Flow controller
Function VSP - P
No
Function VSP - Q
Yes
Function VSP - T
No
Kvs values [mÂł/h]
8 mÂł/h
Leakage rate [% Kvs]
0.02
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
0
Pressure class
PN 16
Pressure controller
No
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Setting Type
None
Stem position
Normally open
Type
AVQ
UK RoHS compliance
Out of scope
Valve body material
Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 25
003H6825
Actuators and adjustment parts, For product type: AVP-F, AVQ, AVQM, Mounting version: Return
003H6867
Valve Inserts, For product type: AV(P)QM (T), PN 25, DN 25
003H6904
Thread tailpieces, PN 25, DN 25, R 1; G 1 1/4, External Thread
003H6910
Weld-on tailpieces, PN 25, DN 25, G 1 1/4
003H6917
Flange tailpieces, PN 25, DN 25, G 1 1/4
