003H6731

Part Number: 003H6731
003H6731
Manufacturer
Danfoss
Part number
003H6731
Category

Product Information

Extended Description

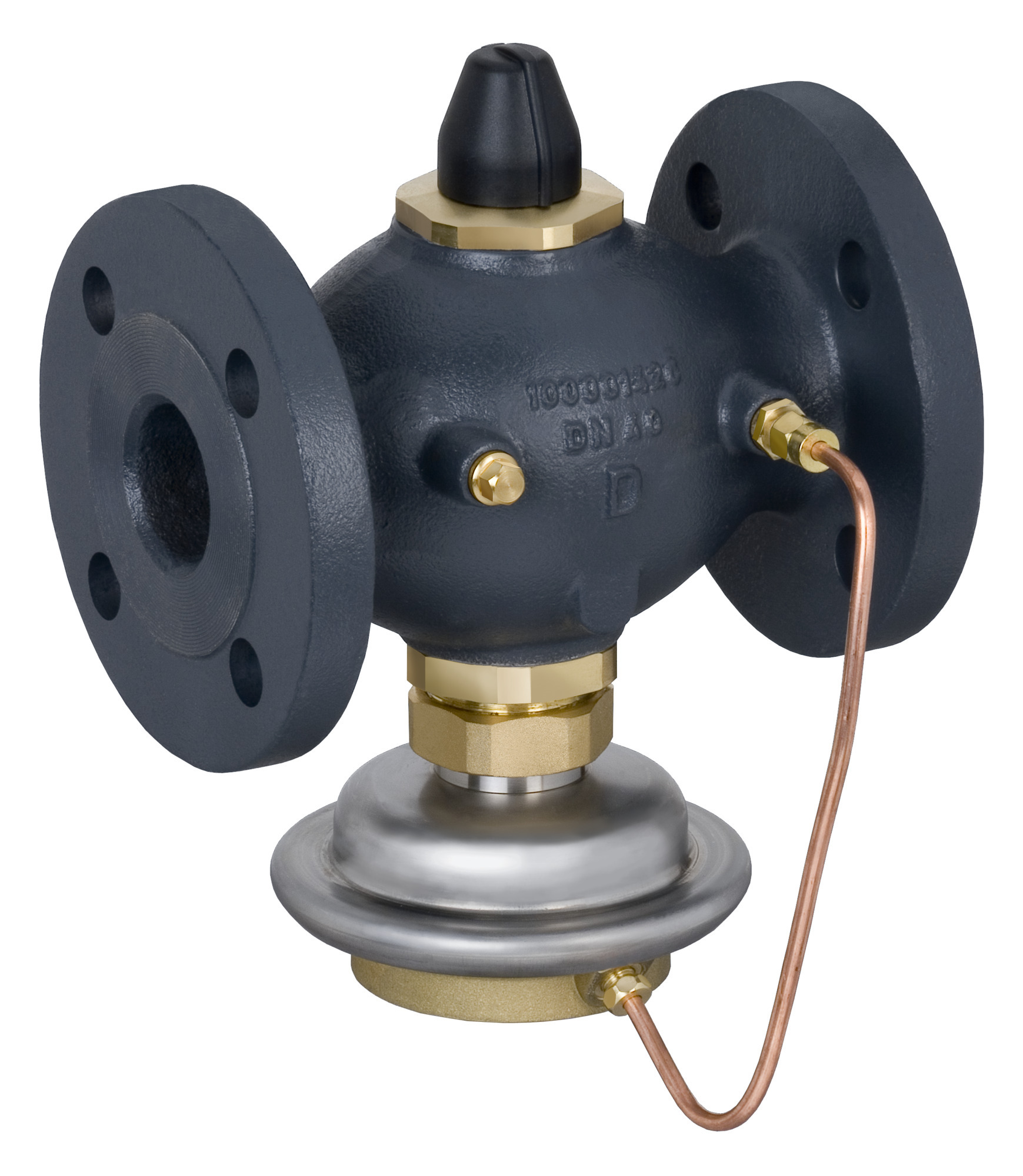

003H6731 Danfoss: AVQ PN25 40/20 /0,2 flange flow/return
Gross weight
11.75 Kilogram
Net weight
11.75 Kilogram
Volume
17.505 Liter
EAN
5702421542521
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.34
Cavitation factor 25%
0.58
Cavitation factor 50%
0.52
Cavitation factor 75%
0.5
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
AVQ PN25 40/20 /0,2 flange flow/return
Diameter [mm]
40 mm
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Yes with exemptions
Flow control
Yes
Flow limitation
No
Flow rate [mÂł/h]
10 mÂł/h
Flow rate [mÂł/h] [Max]
12 mÂł/h
Flow rate [mÂł/h] [Min]
0.8 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Function
Flow controller
Function VSP - P
No
Function VSP - Q
Yes
Function VSP - T
No
Kvs values [mÂł/h]
20 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure controller
No
Pressure nominal [bar]
25 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Setting Type
None
Stem position
Normally open
Type
AVQ
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 40
003H6841
Actuators and adjustment parts, For product type: AVP-F, AVQ, AVQM, Mounting version: Return
003H6868
Valve Inserts, For product type: AV(P)QM (T), PN 25, DN 32
