003H6748
Part Number: 003H6748
Product Information
Extended Description

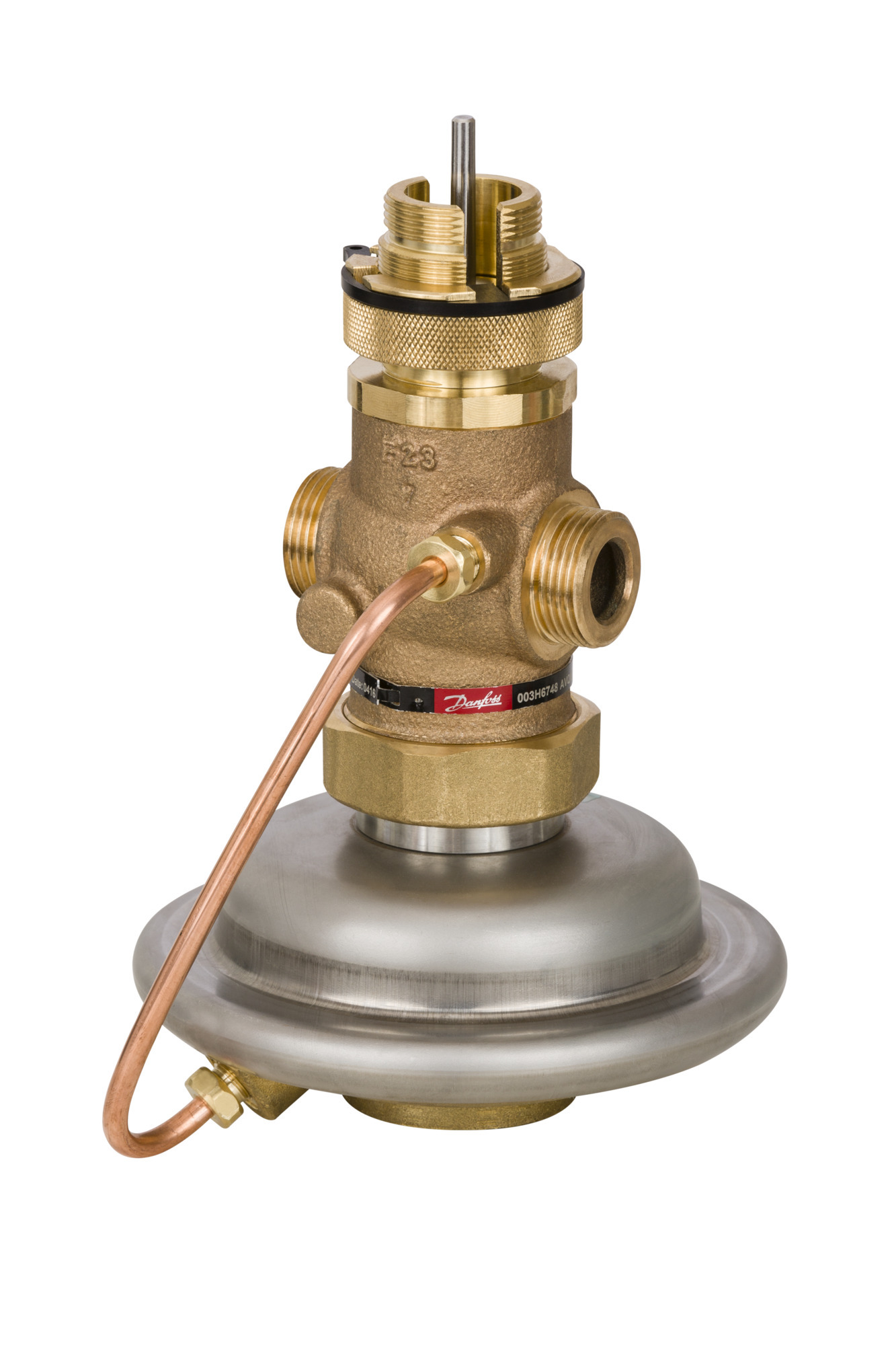

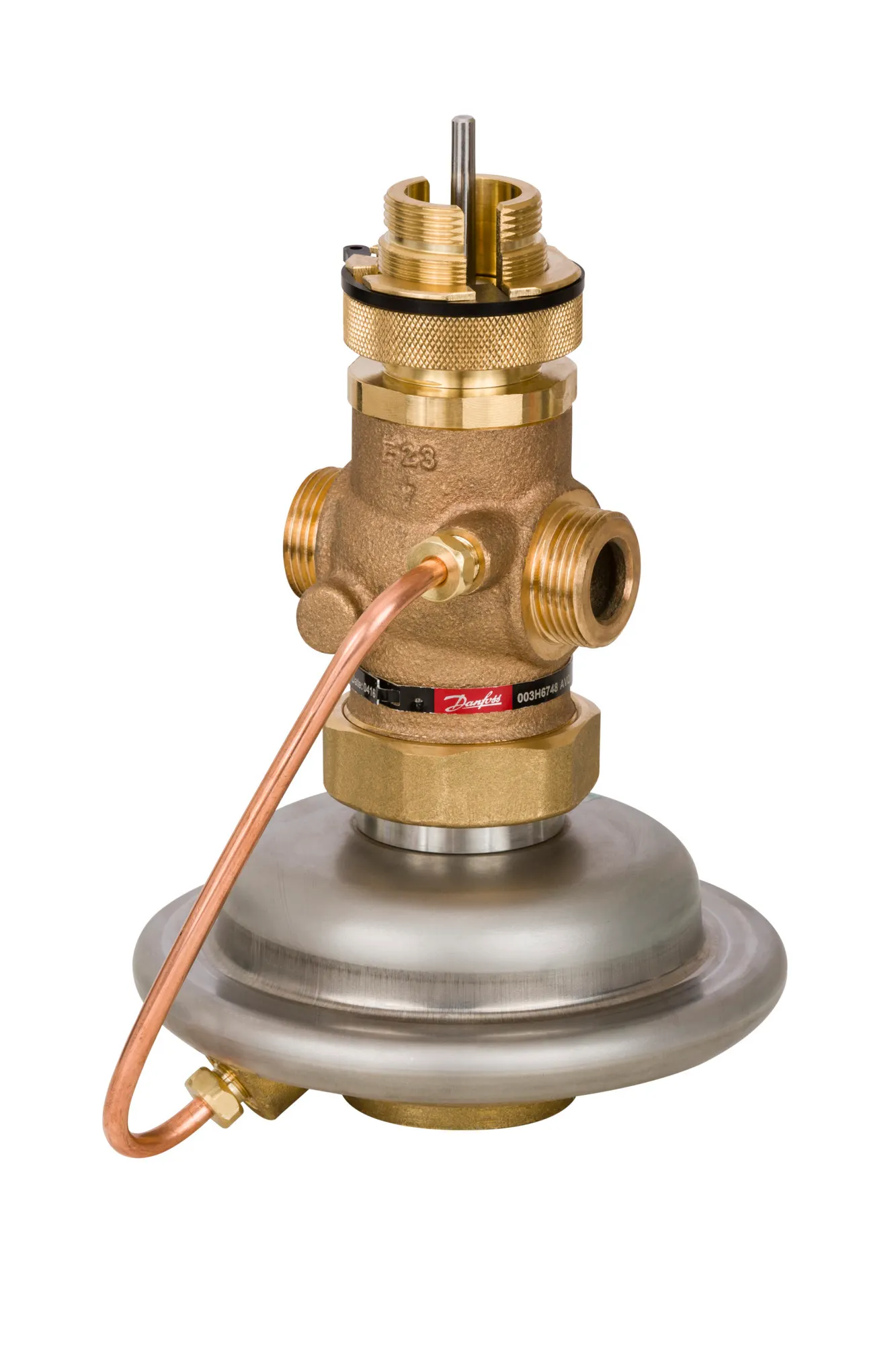

003H6748 Danfoss: AVQM PN25 15/1,6 /0,2 thread flow/ret
Gross weight
2.847 Kilogram
Net weight
2.53 Kilogram
Volume
9.296 Liter
EAN
5702421542699
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.41
Cavitation factor 25%
0.69
Cavitation factor 50%
0.62
Cavitation factor 75%
0.6
China RoHS compliance
Out of scope
Connection size
G 3/4 A
Connection types
External Thread
Contain batteries
No
Description
AVQM PN25 15/1,6 /0,2 thread flow/ret
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
20 bar
EU RoHS compliance
Yes with exemptions
Flow control
Yes
Flow limitation
Yes
Flow rate [mÂł/h]
0.9 mÂł/h
Flow rate [mÂł/h] [Max]
0.9 mÂł/h
Flow rate [mÂł/h] [Min]
0.03 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Function
Flow controller with int. control valve
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
1.6 mÂł/h
Leakage rate [% Kvs]
0.02
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
0
Pressure class
PN 25
Pressure controller
No
Pressure nominal [bar]
25 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing CV material
Metal
Sealing DP material
EPDM
Setting Type
None
Stem position
Normally open
Stroke [mm]
5 mm
Type
AVQM
UK RoHS compliance
Out of scope
Valve body material
Red bronze CuSn5ZnPb (Rg5)
Valve cone CV material
Dezincing free brass CuZn36Pb2As
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 15
003H6863
Valve Inserts, For product type: AV(P)QM (T), PN 25, DN 15
