003H6852
Part Number: 003H6852
Product Information
Extended Description

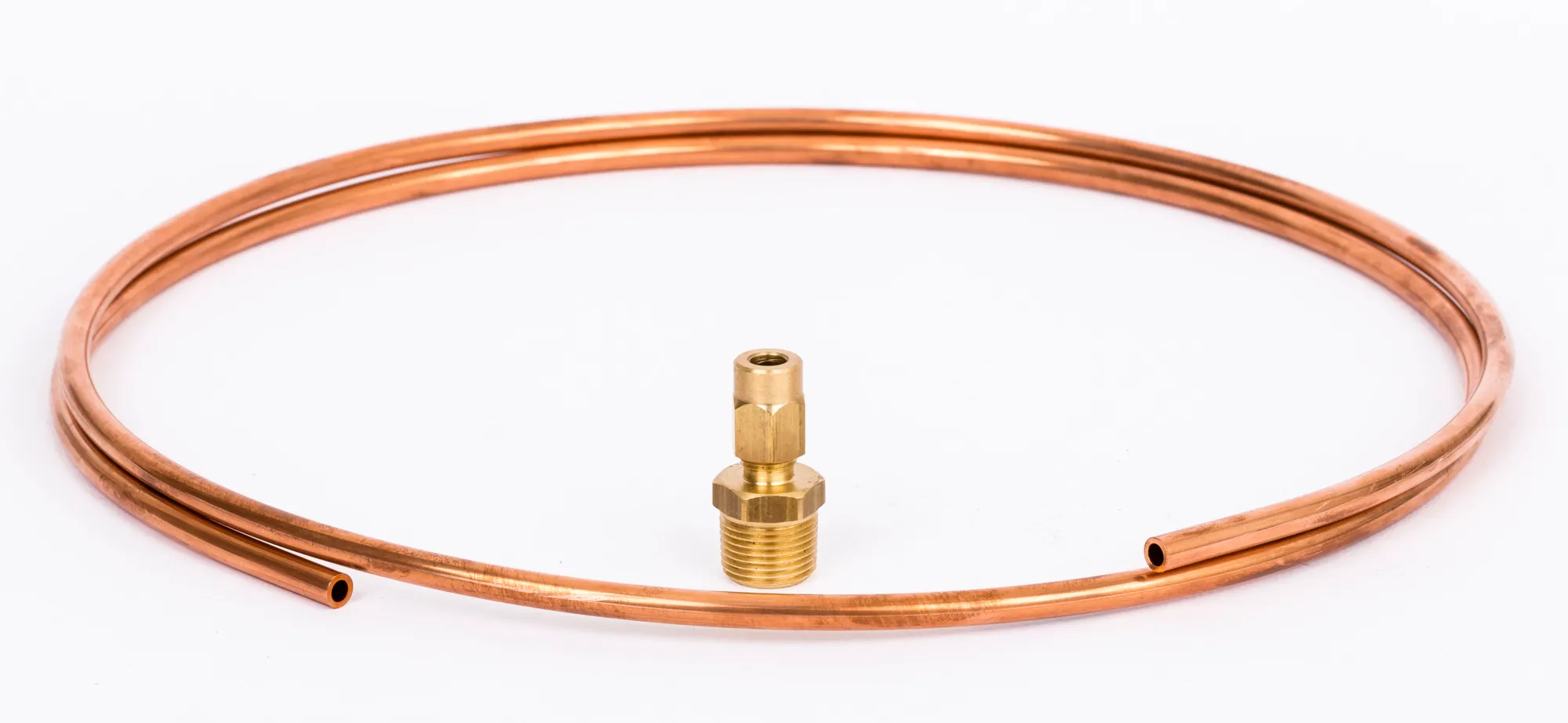

003H6852 Danfoss: Impulse tube set AV R 1/8##,fi 6x1,5m
Gross weight
0.362 Kilogram
Net weight
0.342 Kilogram
Volume
3.927 Liter
EAN
5702421541555
Connection size
R 1/8
Contain batteries
No
Description
Impulse tube set AV R 1/8##,fi 6x1,5m
Diameter [mm]
6 mm
For product type
AV(P)QM (T)
Length [mm]
1500 mm
Material
Copper Cu-DHP CW024A H040
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
25 bar
Product group
Accessories - SAC
REACH Candidate List substances
No
Suitable for valve of diameter [mm] [Max]
50 mm
Suitable for valve of diameter [mm] [Min]
15 mm
Type
Impulse tubes
