003H6945

Part Number: 003H6945
003H6945
Manufacturer
Danfoss
Part number
003H6945
Category

Product Information

Extended Description

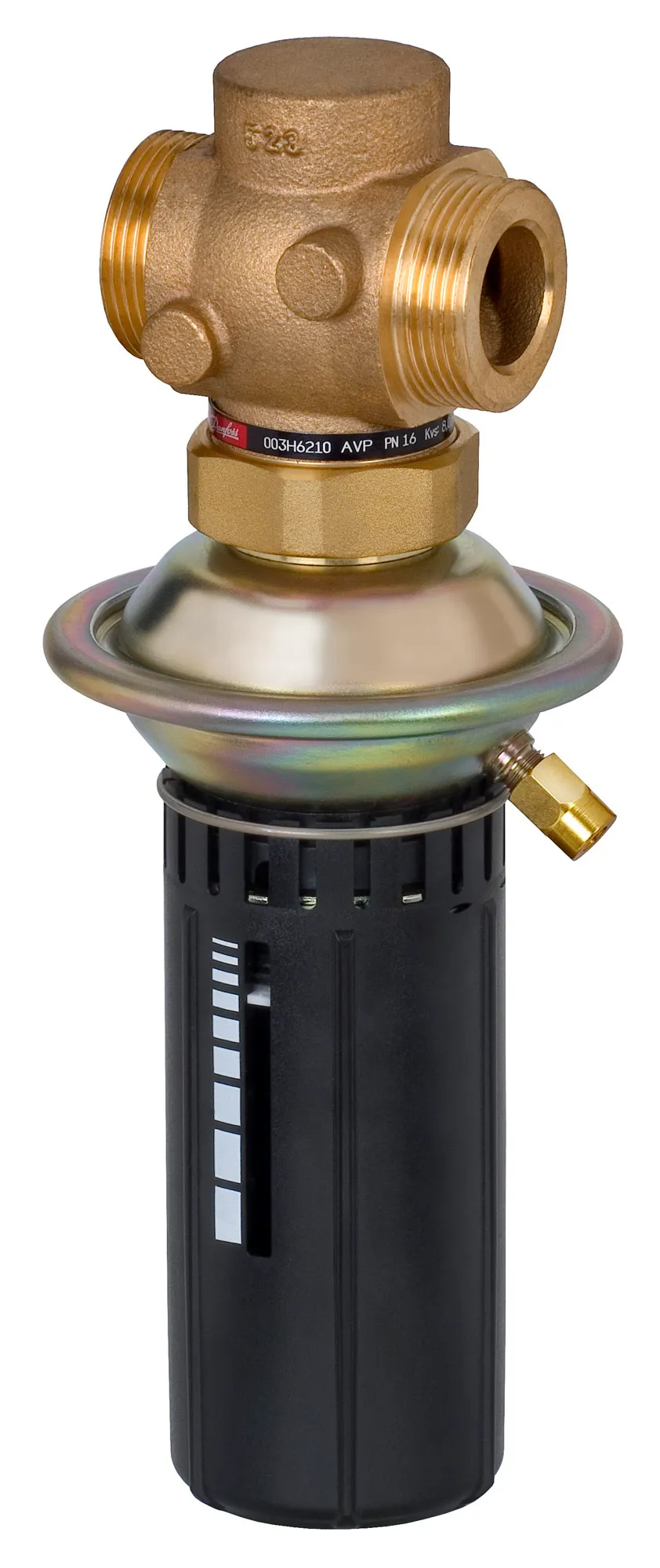

003H6945 Danfoss: AVP PN16 15/0,4 0,2-1,0 thread return
Gross weight
1.958 Kilogram
Net weight
1.917 Kilogram
Volume
4.484 Liter
EAN
5710104031798
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.41
Cavitation factor 25%
0.69
Cavitation factor 50%
0.62
Cavitation factor 75%
0.6
China RoHS compliance
Out of scope
Connection size
G 3/4 A
Connection types
External Thread
Contain batteries
No
Description
AVP PN16 15/0,4 0,2-1,0 thread return
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
12 bar
Differential pressure setting [bar] [Max]
1 bar
Differential pressure setting [bar] [Min]
0.2 bar
Function
Diff. press. controller
Kvs values [m³/h]
0.4 m³/h
Leakage rate [% Kvs]
0.02
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Flow
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally open
Type
AVP
UK RoHS compliance
Out of scope
Valve body material
Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 15
